PVB BYM600 microinverter connect to 2 module and enable module-level maintenance and management of the PV station by monitoring power generation of each module.
Module-level data can be uploaded to the monitoring platform via our data transfer units through Wi-Fi.
PVB microinverters for solar panels has an IP67 waterproof rating for lasting performance in any climate.
Low DC voltage reduces danger and guarantees a secure installation. Safety is always our first priority.
The amount you can save on your electricity bill with PVB Easy Solar Kit depends on your total consumption. The higher your energy consumption, the more likely you are to fully utilize your equipment’s output, maximizing your financial return.
Furthermore, the amount you pay your electricity provider per kWh, including any additional costs and taxes, should be considered. In short, you can save up to 50% on your electricity bill.
Components of PVB microinverter are selected from world-class brands.
And our solar panel has a lifespan of up to 30 years.
PVB adopts plug and play design for DIY solar system easily.
It contributes to a quick, simple, and economical installation process.
Components of PVB microinverter are selected from world-class brands.
And our solar panel has a lifespan of up to 30 years.
PVB adopts plug and play design for DIY solar system easily.
It contributes to a quick, simple, and economical installation process.
PVB adopts plug and play design for DIY solar system easily.
It contributes to a quick, simple, and economical installation process.
| MPPT voltage range | 24V-50V |
| Operating voltage range | 16V-60V |
| Max. short circuit current | 24A |
| Max. input current | 20A |
| Rated Output Power | 600VA |
| Maximum Output Power | 600VA (Vac≥220,Vmp≥33) |
| Rated voltage/range | 230V(176V~265V) |
| Rated Frequency/range | 50Hz/60Hz (46.5-62)Hz |
| Maximum continuous output current | 2.73A |
| Maximum Harmonic Distortion | <4% |
| Power Factor | >0.99 (default) |
| Peak efficiency | 96.5% |
| MPPT efficiency | >99.8% |
| Night power consumption | <100mW |
| Communication method | PLCC/Bluetooth+Wi-Fi (Optional) |
| Safety protection class | Class I |
| Enclosure rating | IP67 |
| Operating temperature | -40℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
| Relative humidity | 0-98% |
| Transformer design | High frequency transformer, Electrical isolated |
| Overvoltage class | OVC III (AC), OVC II (PV) |
| Warranty period | 12 / 25years Optional |
| Dimensions(L*W*H mm) | 210*230*34 |
| Weight(kg) | 2.39 |
| Maximum Power (Pmax) | 430 |
| Voc(V) | 40.1 |
| Isc(A) | 13.38 |
| Vmpp(V) | 33.8 |
| Impp(A) | 12.76 |
| Efficiency | 21.99% |
| Cable Length | 5m |
| Copper Diameter | 1.5mm2 |
| Cable Length | Betteri (Female) |
| Copper Diameter | EU standard |
Real-time data analysis, visualizing power generation
Efficient operation and hierarchical management
Remote login and multiple devices supported
Quickly view solutions for product faults

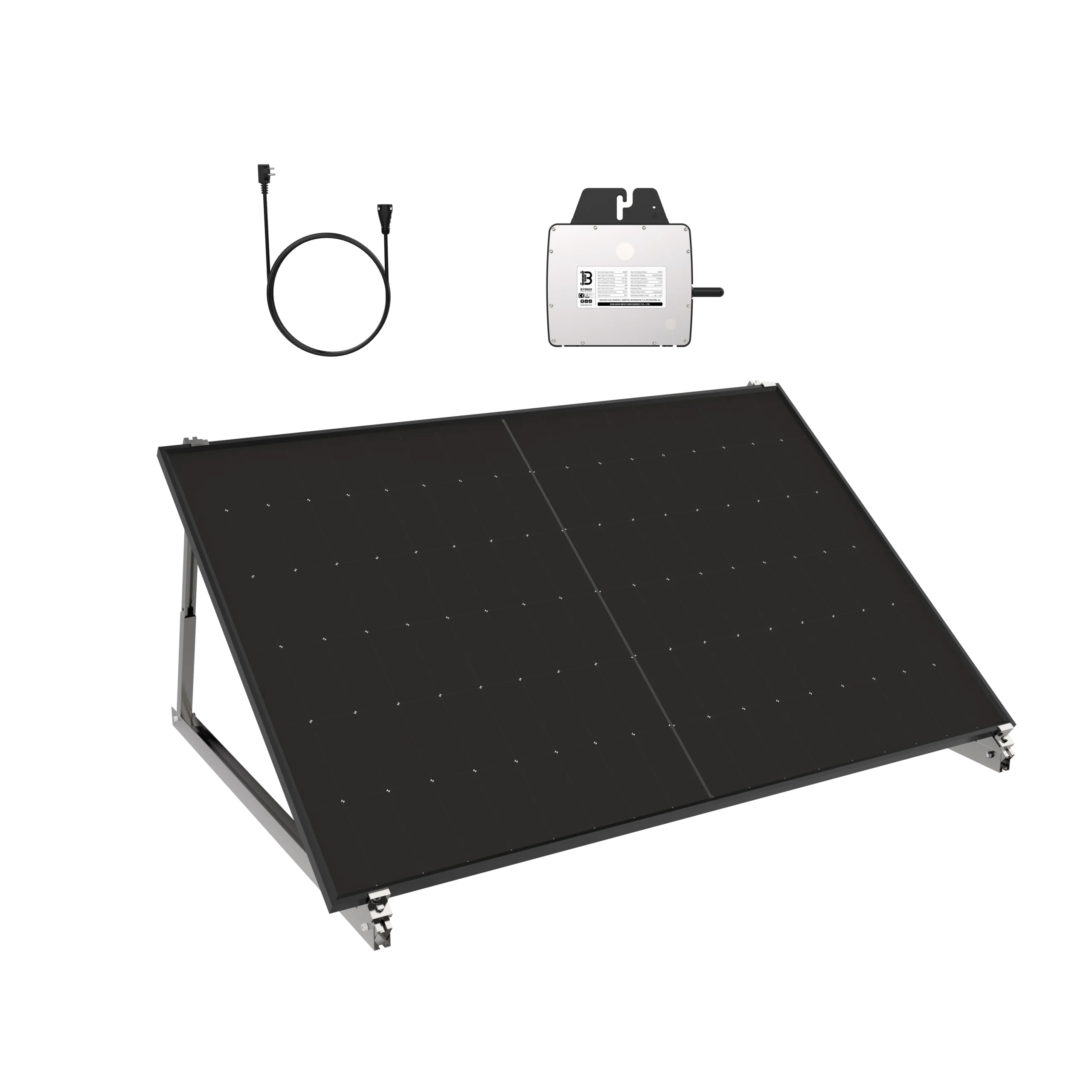

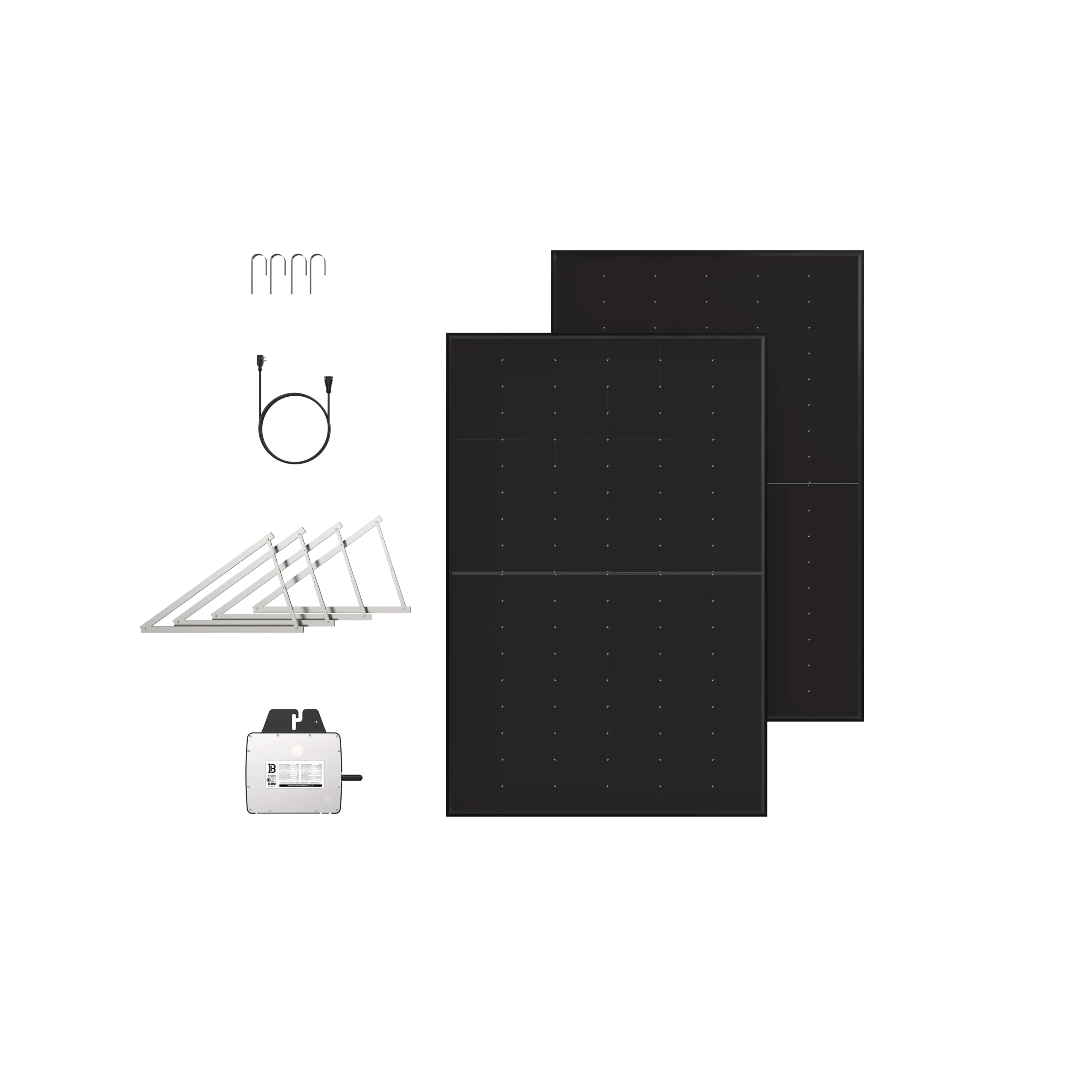

2×430W Solar Panels
600W Microinverter
Bracket
Electric Cable
Yes, the frequency of cleaning depends on factors such as the local climate, the angle of the panels, and the amount of dust and debris in the area. In general, it is recommended to clean solar panels at least once or twice a year, or more frequently if necessary, to maximize their energy production.
PVB offers a comprehensive warranty on all components of the Easy Solar Kit, including the microinverters. Please refer to our warranty policy for specific details and terms.
Typically, the Easy Solar Kit comes with cables, microinverters, monitor APP, and solar panels. Our goal is to provide our clients with all-in-one solution.
Microinverters convert DC to AC at the panel level, allowing each panel to operate independently and more efficiently.
