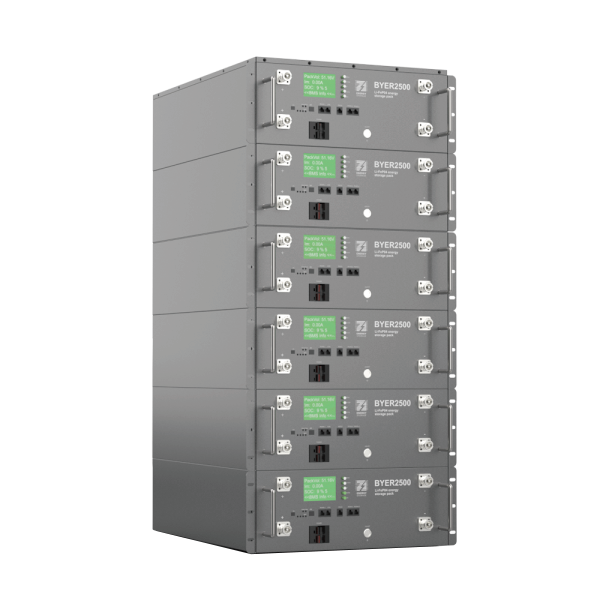

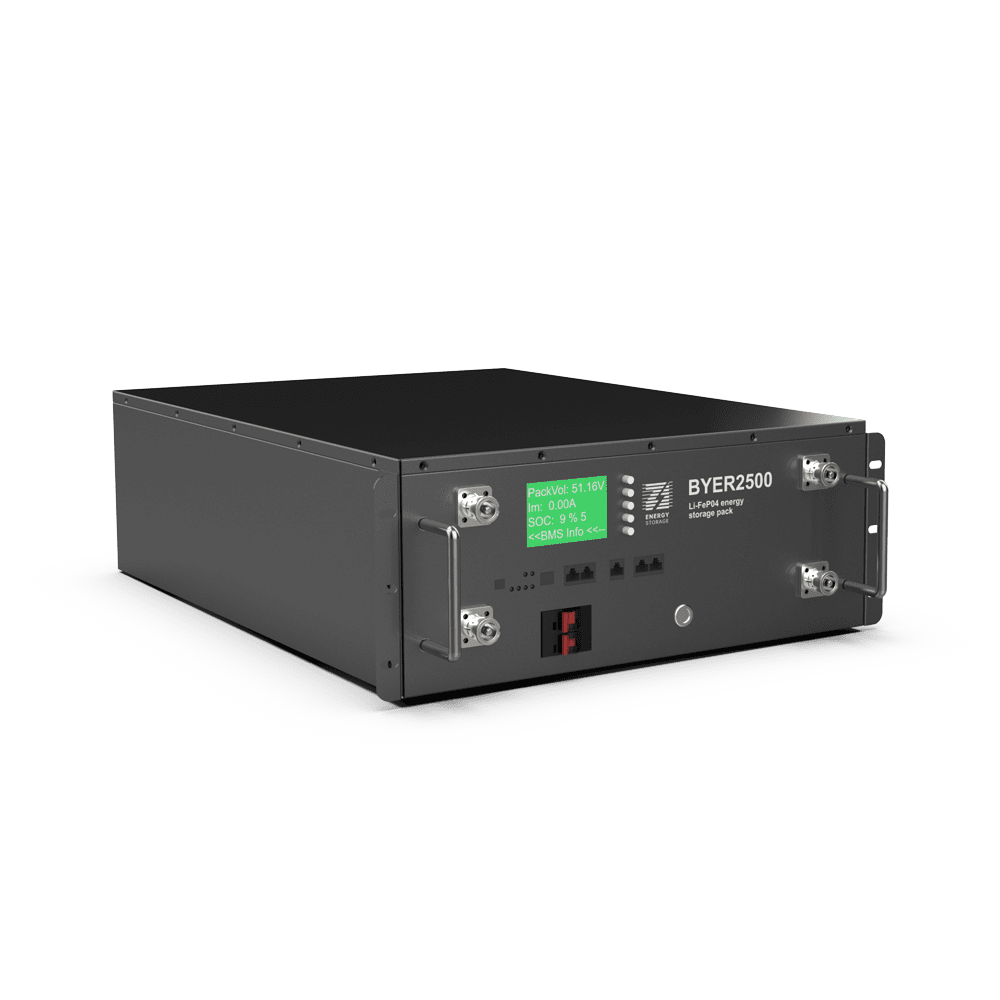

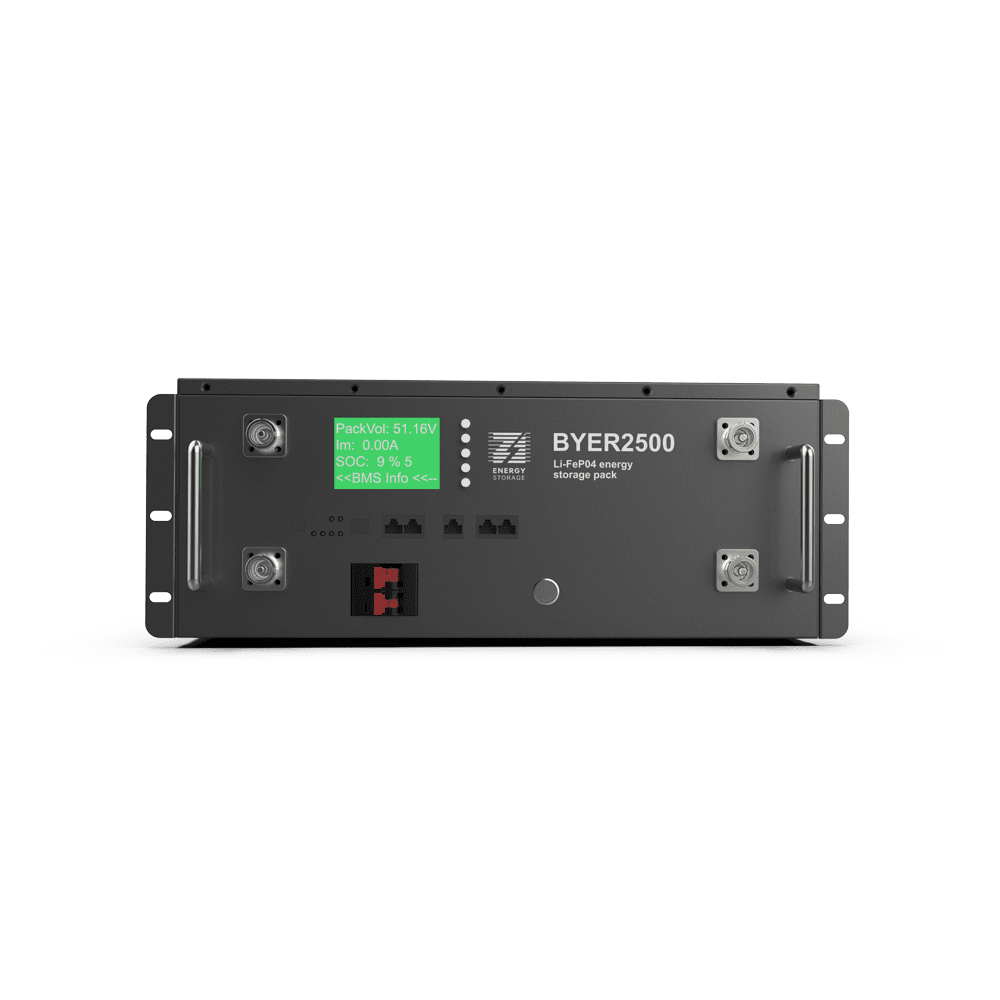

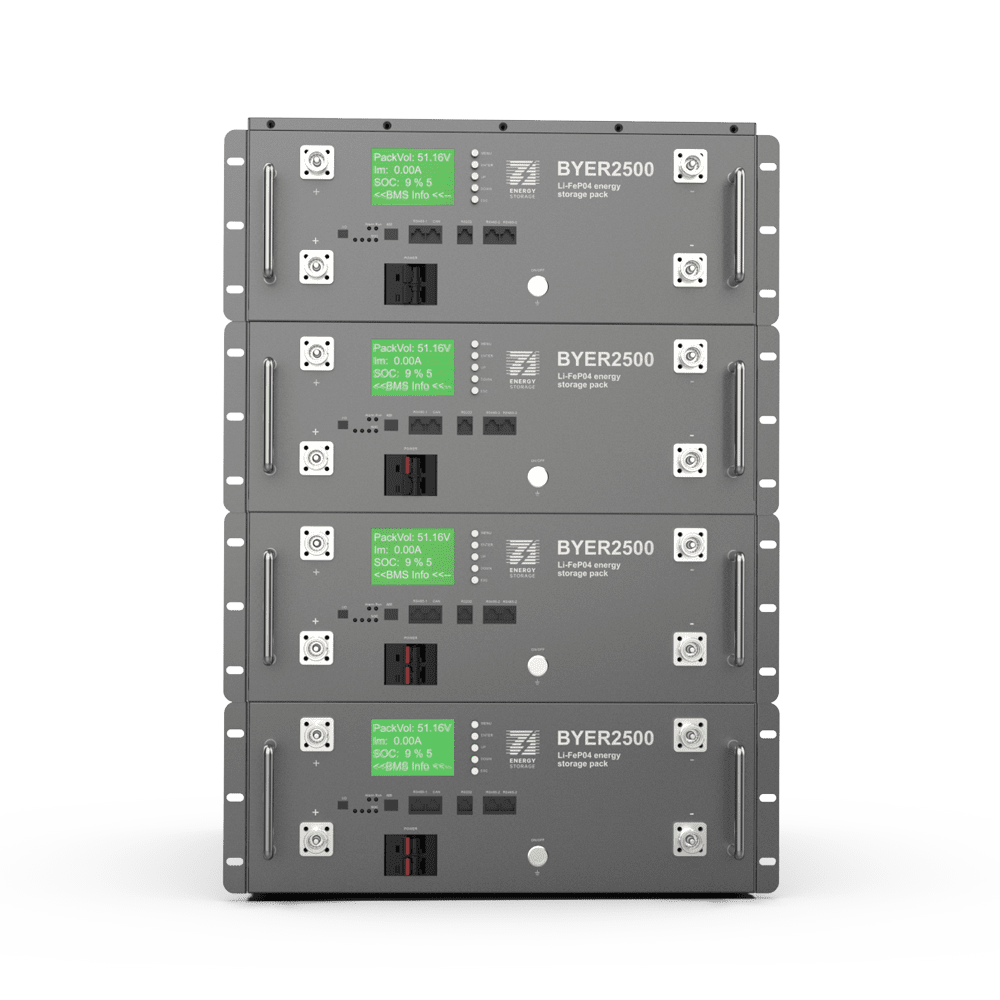

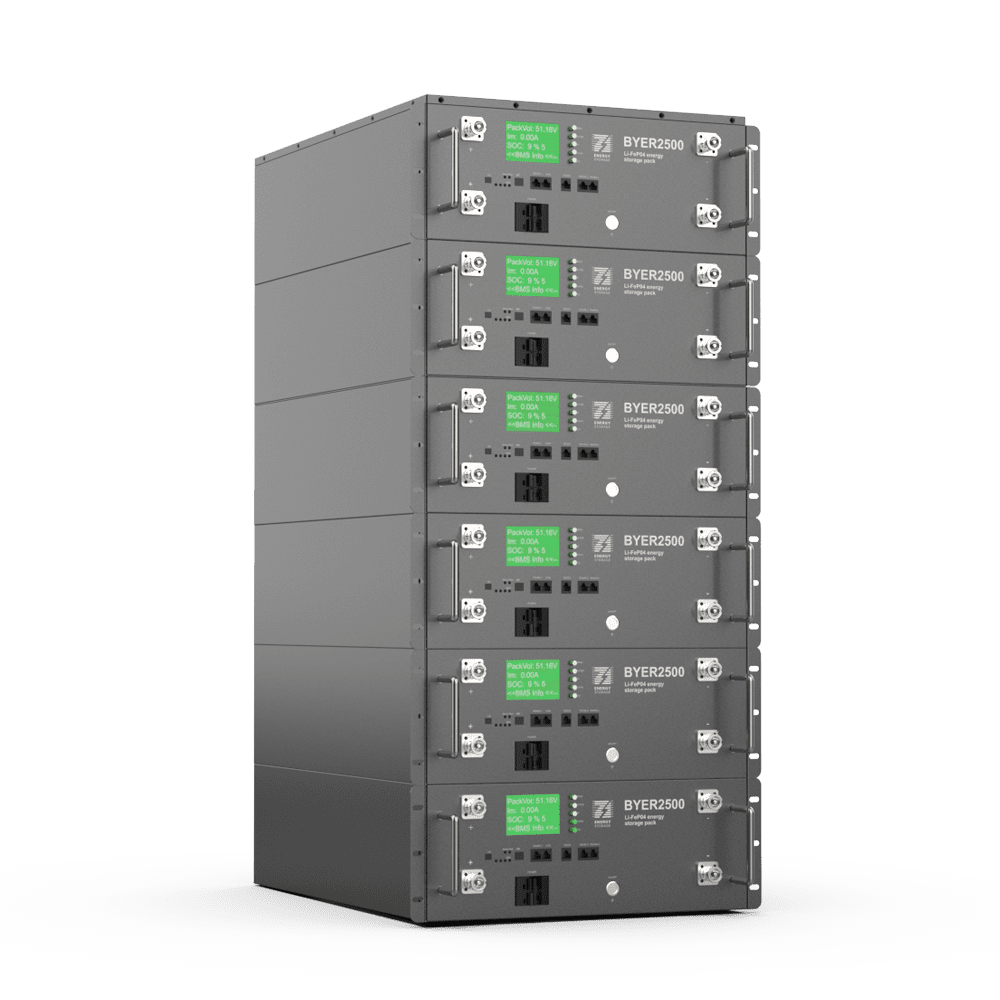

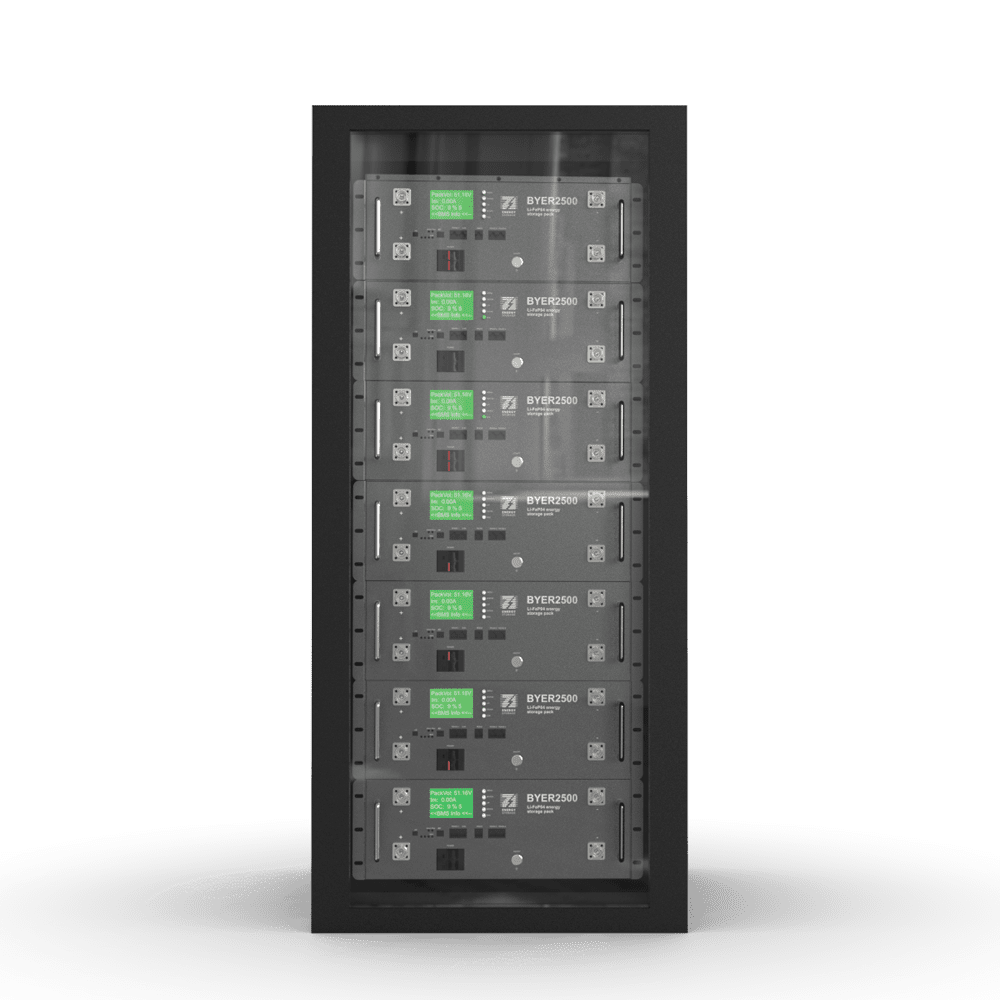

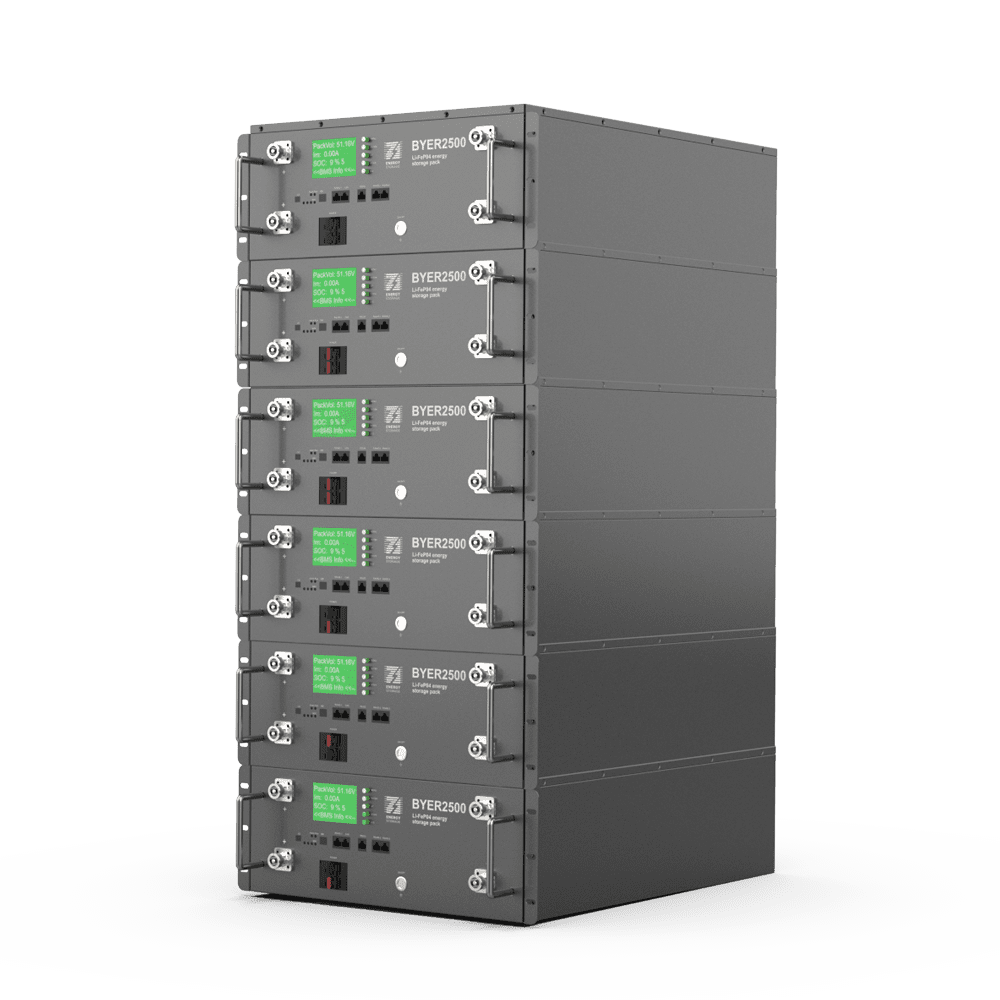

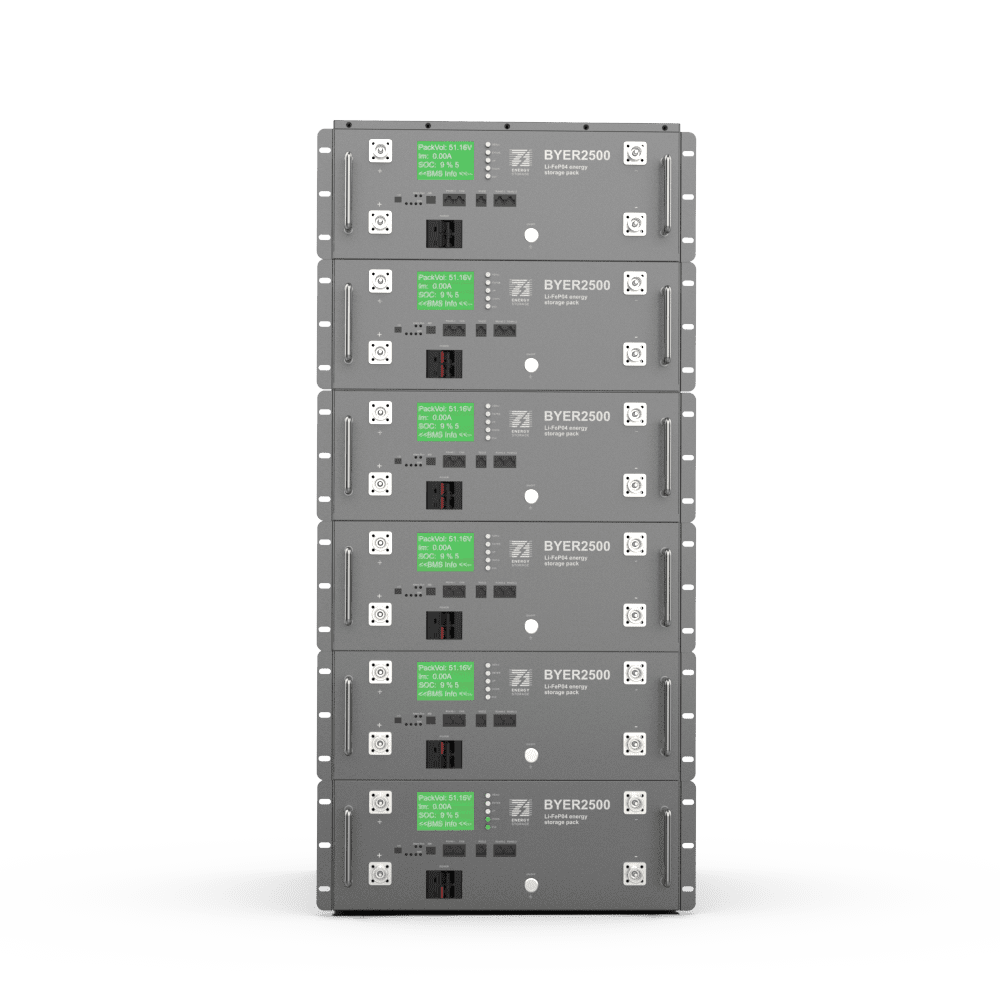

The residential LFP energy storage pack was independently designed and developed by PVB.
Our home energy storage system supports off grid inverter and hybrid inverter, widely used in the energy storage field.
The rack-mounted storage system operates efficiently within a temperature range of -20°C to 55°C.
A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6000 cycles at 80% DOD.
The rack-mounted storage system operates efficiently within a temperature range of -20°C to 55°C.
A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6000 cycles at 80% DOD.
| Nominal energy /kWh | Nominal value |
| Nominal voltage /V | Nominal value |
| Nominal capacity/Ah | Nominal value |
| Internal impedance | Fresh cell |
| Size | L*W*H |
| Weight /kg | / |
| Operating voltage /V | / |
| Standard charging and discharging current | / |
| Maximum charging and discharging current | / |
| Charging temperature /℃ | / |
| Discharging temperature /℃ | / |
| Storage temperature /℃ | / |
| Recommended DOD | / |
| Communication function | / |
| Protection class | / |
| Shipping SOC | / |
| Nominal energy /kWh | 2.66 |
| Nominal voltage /V | 51.2 |
| Nominal capacity/Ah | 52 |
| Internal impedance | ≤20 mΩ |
| Size | 430 mm*440 mm*175 mm |
| Weight /kg | 29.5 |
| Operating voltage /V | 44.8 V ~ 57.6 V |
| Standard charging and discharging current | 0.5C/0.5C |
| Maximum charging and discharging current | 1C/1C |
| Charging temperature /℃ | 0℃~ 55℃ |
| Discharging temperature /℃ | -20°C ~ 55°C |
| Storage temperature /℃ | -10°C ~45°C （best 0 °C ~35 °C) |
| Recommended DOD | ≤98% |
| Communication function | RS232/RS485/CAN |
| Protection class | IP20 |
| Shipping SOC | 30%~50% |
| Nominal energy /kWh | 5.22 |
| Nominal voltage /V | 51.2 |
| Nominal capacity/Ah | 102 |
| Internal impedance | ≤20 mΩ |
| Size | 600 mm*440 mm*180 mm |
| Weight /kg | 48.5 |
| Operating voltage /V | 44.8 V ~ 57.6 V |
| Standard charging and discharging current | 0.5C/0.5C |
| Maximum charging and discharging current | 1C/1C |
| Charging temperature /℃ | 0℃~ 55℃ |
| Discharging temperature /℃ | -20°C ~ 55°C |
| Storage temperature /℃ | -10°C ~45°C （best 0 °C ~35 °C) |
| Recommended DOD | ≤98% |
| Communication function | RS232/RS485/CAN |
| Protection class | IP20 |
| Shipping SOC | 30%~50% |
PVB residential energy storage systems are tailored to meet your home’s unique energy needs.
