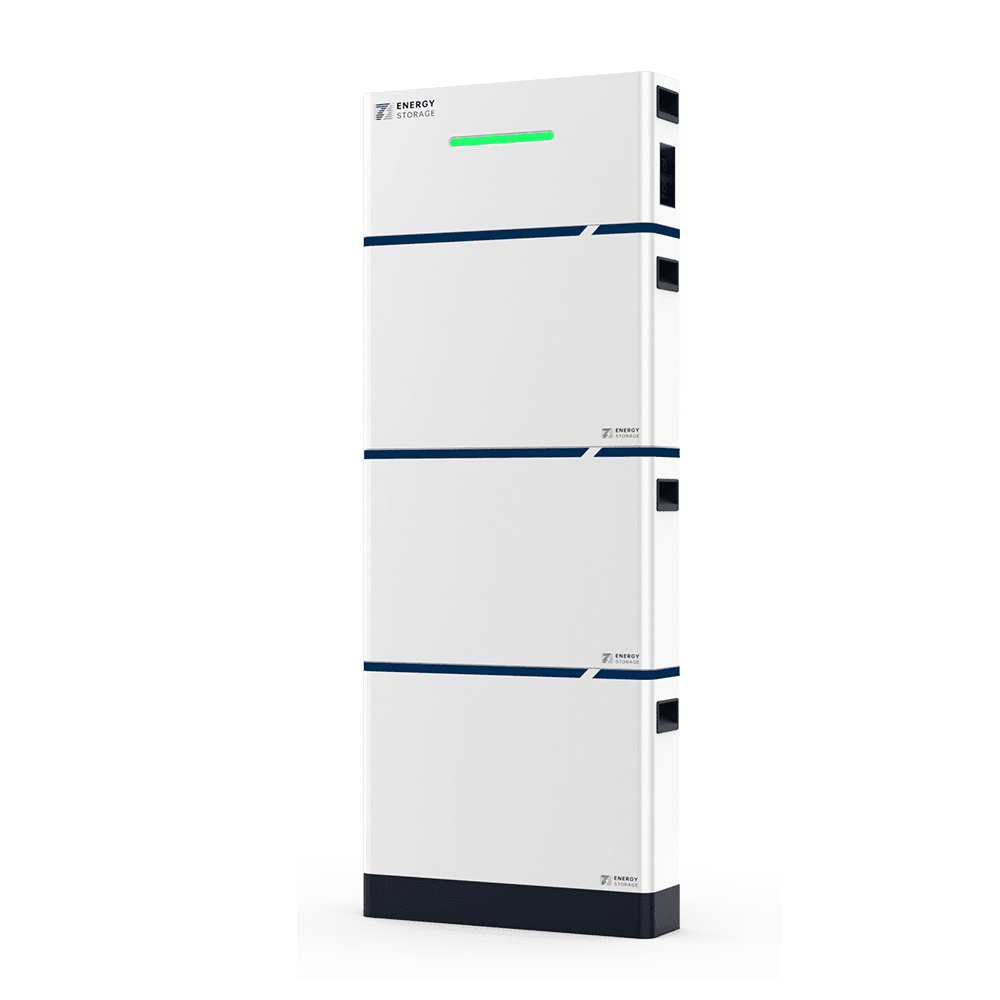

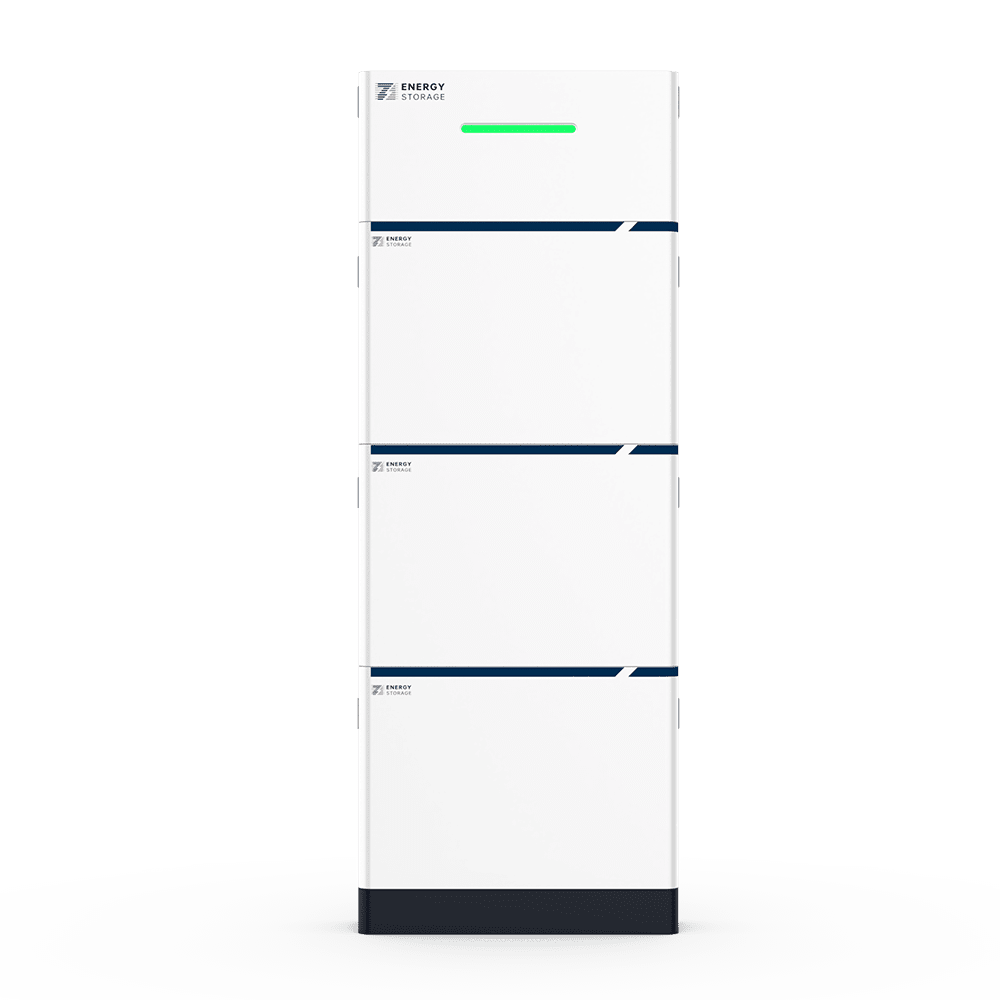

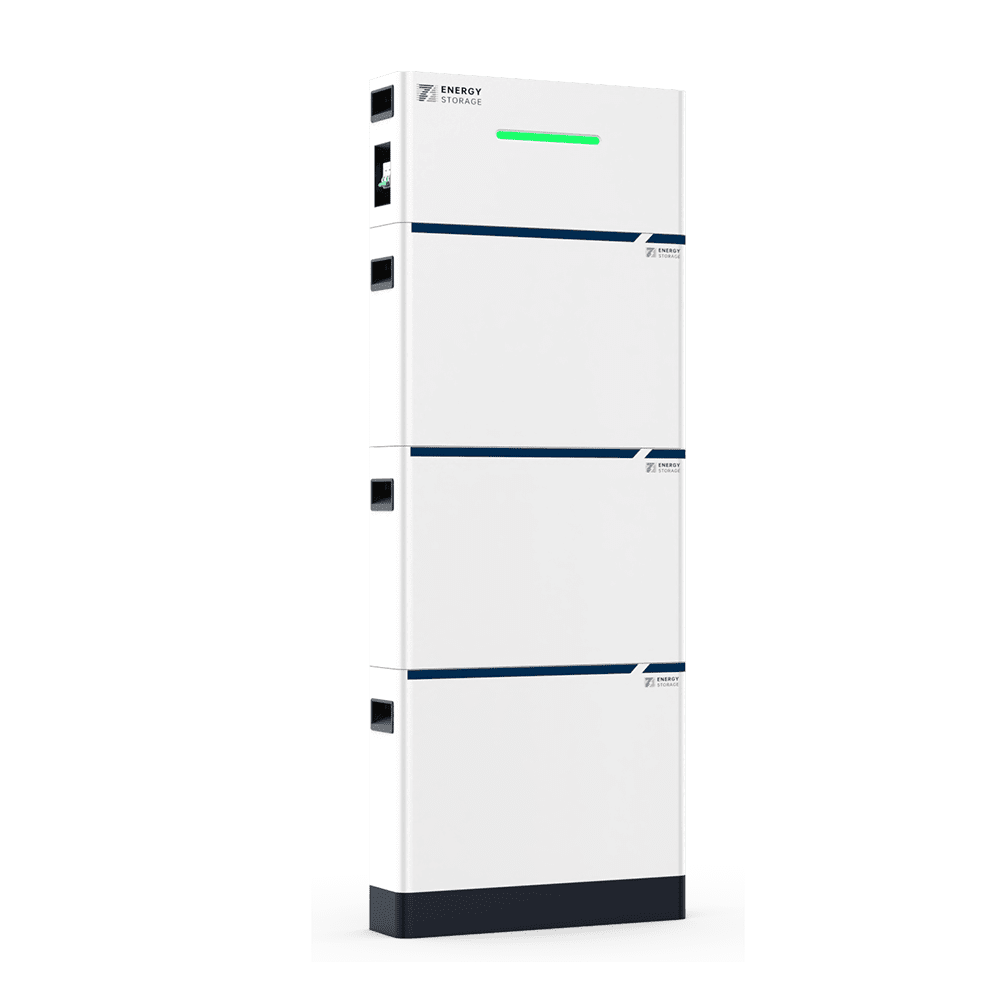

Featuring safety, reliability, extended service life, easy capacity expansion, attractive design, and simple installation, PVB stacked storage system offers a wide array of advantages.
Fully compatible with EV chargers and PV protection products, PVB stacked storage systems seamlessly integrates to deliver an all-in-one solution for household solar PV, energy storage, and charging.
The stacked storage system operates efficiently within a temperature range of -10°C to 55°C.
A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6000 cycles at 80% DOD.
The stacked storage system operates efficiently within a temperature range of -10°C to 55°C.
A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6000 cycles at 80% DOD.
| Number of Battery Packs | 1 |
| Rated Capacity | 3.99KWH |
| Cell Specification | 52ah LiFePO4 |
| Rated Voltage | 76.8V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 560*170*700 |
| Continuous Charge/Discharge Current | 26A |
| Maximum Charge/Discharge Current | 52A |
| Cycle Life | 5000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 60KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 2 |
| Rated Capacity | 7.98KWH |
| Cell Specification | 52ah LiFePO4 |
| Rated Voltage | 153.5V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 560*170*1100 |
| Continuous Charge/Discharge Current | 26A |
| Maximum Charge/Discharge Current | 52A |
| Cycle Life | 5000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 95KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 3 |
| Rated Capacity | 11.97KWH |
| Cell Specification | 52ah LiFePO4 |
| Rated Voltage | 230.4V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 560*170*1500 |
| Continuous Charge/Discharge Current | 26A |
| Maximum Charge/Discharge Current | 52A |
| Cycle Life | 5000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 130KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 4 |
| Rated Capacity | 15.96KWH |
| Cell Specification | 52ah LiFePO4 |
| Rated Voltage | 307.2V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 560*170*1900 |
| Continuous Charge/Discharge Current | 26A |
| Maximum Charge/Discharge Current | 52A |
| Cycle Life | 5000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 165KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 1 |
| Rated Capacity | 7.83KWH |
| Cell Specification | 102ah LiFePO4 |
| Rated Voltage | 76.8V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 830*170*730 |
| Continuous Charge/Discharge Current | 52A |
| Maximum Charge/Discharge Current | 102A |
| Cycle Life | 6000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 85KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 2 |
| Rated Capacity | 15.66KWH |
| Cell Specification | 102ah LiFePO4 |
| Rated Voltage | 153.5V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 830*170*1130 |
| Continuous Charge/Discharge Current | 52A |
| Maximum Charge/Discharge Current | 102A |
| Cycle Life | 6000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 145KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 2 |
| Rated Capacity | 15.66KWH |
| Cell Specification | 102ah LiFePO4 |
| Rated Voltage | 153.5V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 830*170*1130 |
| Continuous Charge/Discharge Current | 52A |
| Maximum Charge/Discharge Current | 102A |
| Cycle Life | 6000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 145KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
| Number of Battery Packs | 2 |
| Rated Capacity | 15.66KWH |
| Cell Specification | 102ah LiFePO4 |
| Rated Voltage | 153.5V |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -10-55°C |
| Storage Temperature | -20-55°C(optimal: 0-35°C) |
| Dimensions (WDH) mm | 830*170*1130 |
| Continuous Charge/Discharge Current | 52A |
| Maximum Charge/Discharge Current | 102A |
| Cycle Life | 6000(0.2C, 80% DOD, 25±2°C) |
| Communication | CAN/RS485 |
| Weight | 145KG |
| Relative Humidity | ＜95%(Non-condensing) |
| Protection Level | IP54 |
| Cooling Method | Natural Cooling |
| Altitude | ＜2000m |
| Standards | IEC62619 UN38.3 |
PVB residential energy storage systems are tailored to meet your home’s unique energy needs.
