Quad-In
Microinverter 2400

Highlights:
Technical certification :

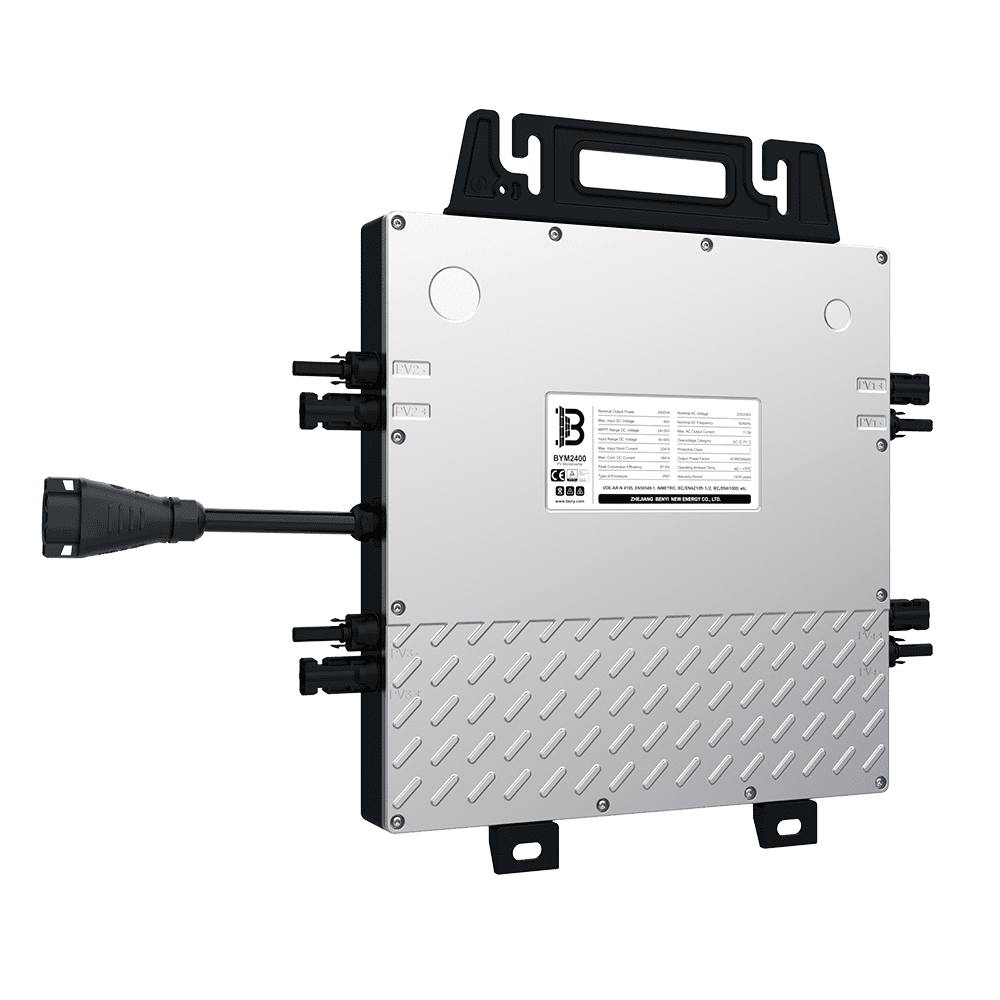

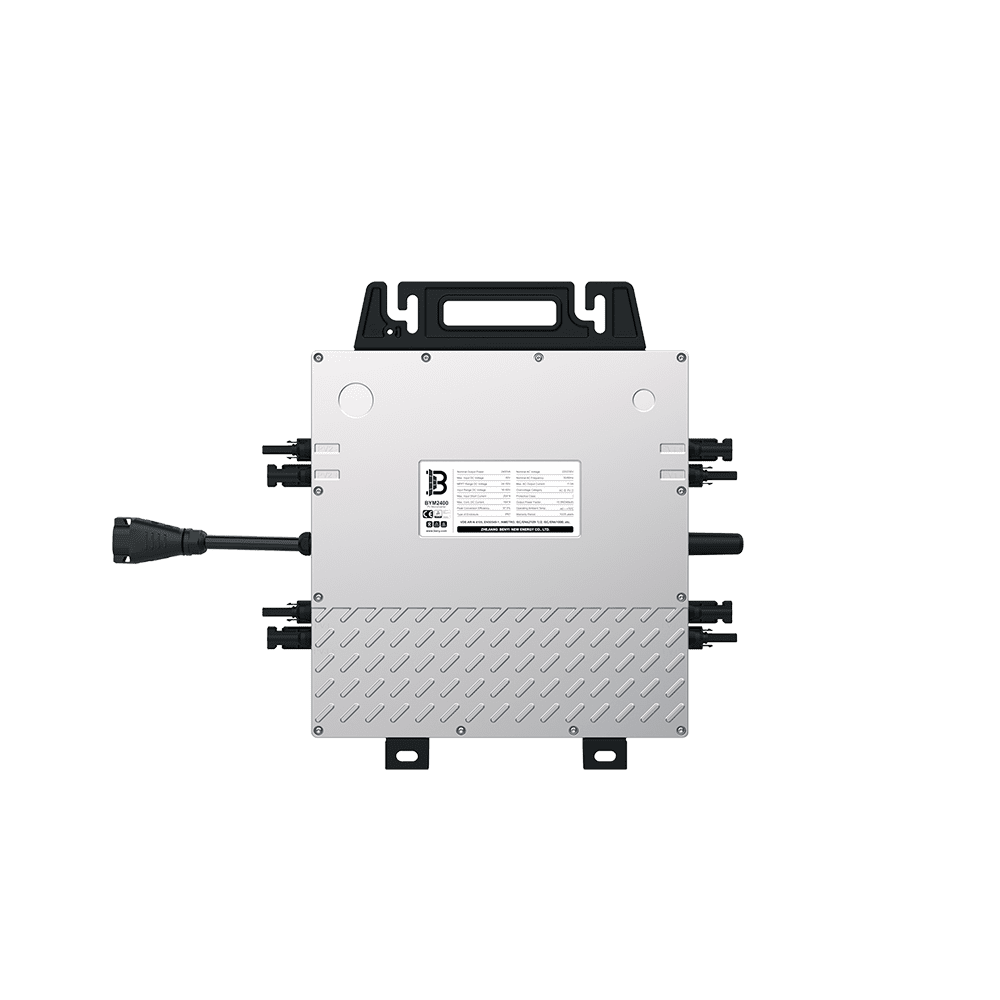

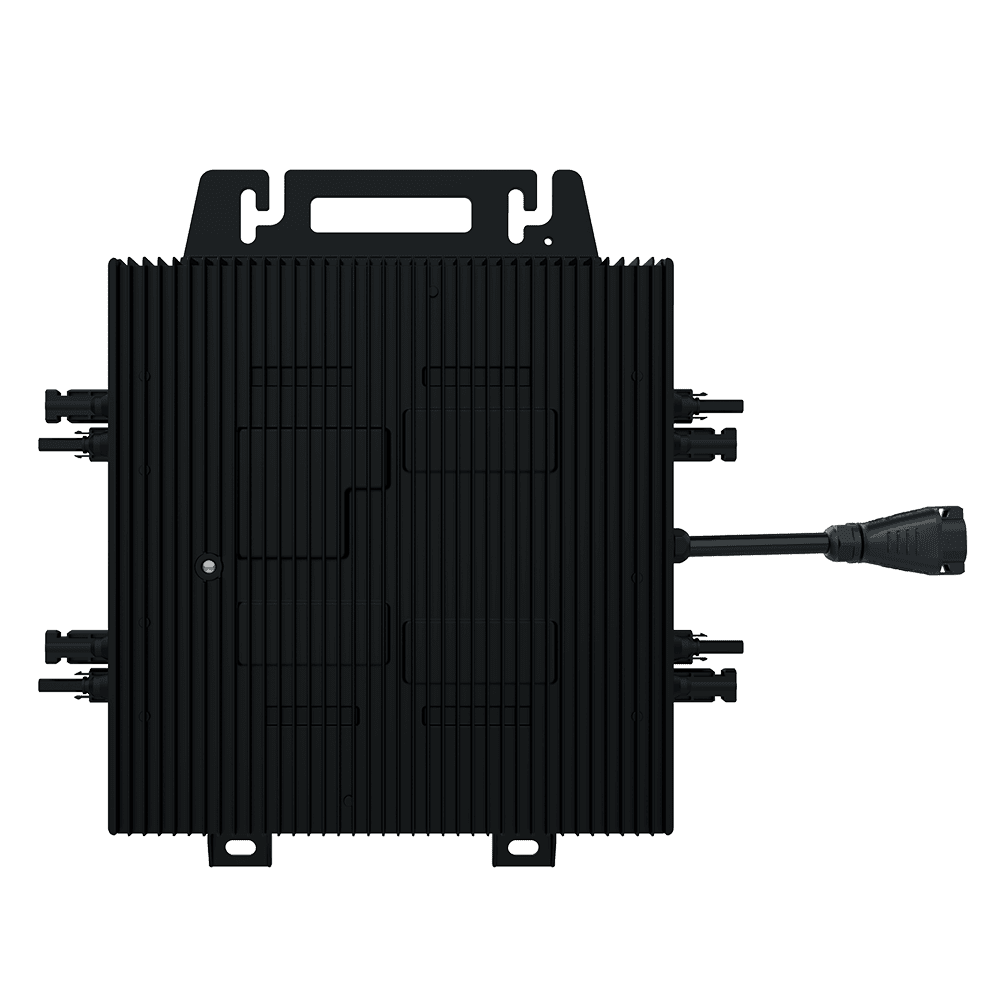

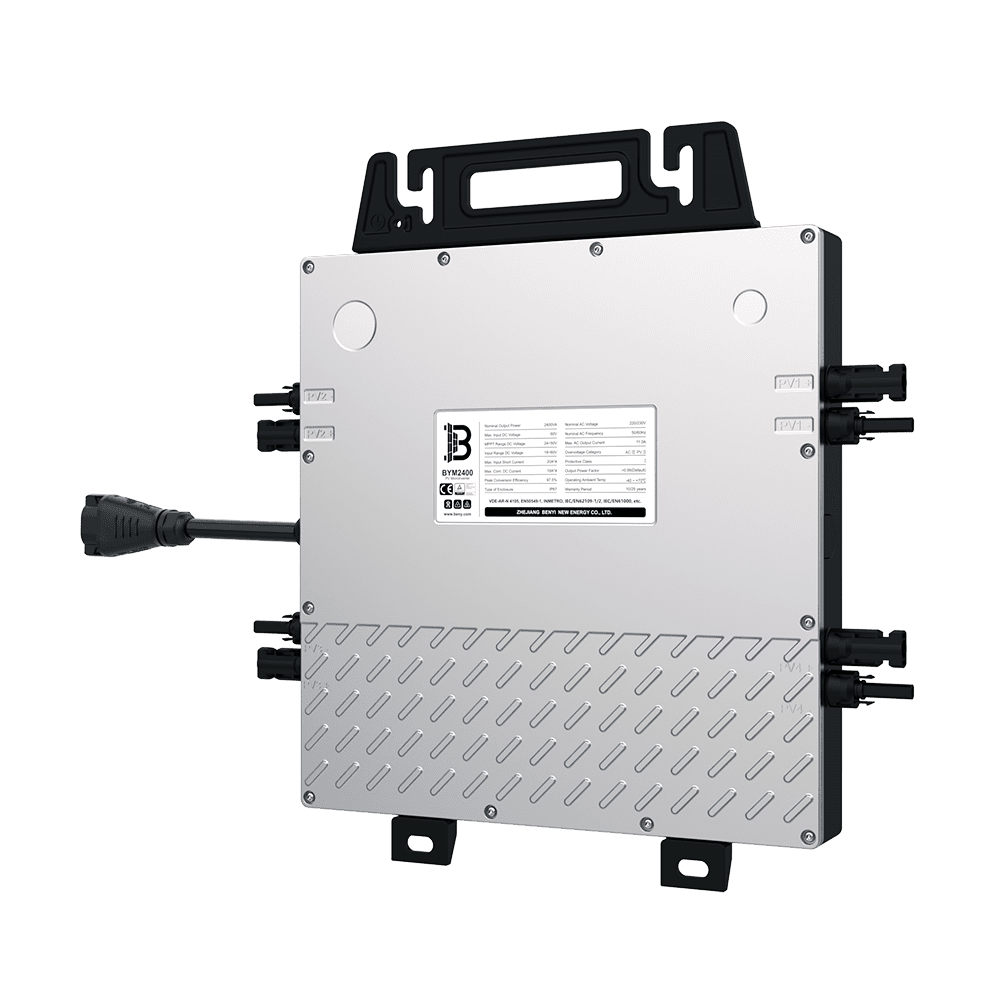

The PVB BYM2400 microinverter is designed to connect to 4 panels, providing a rated output power of 2400W. It enables module-level maintenance and management by monitoring the power generation of each module.

Module-level data can be conveniently uploaded to the monitoring platform using PVB data transfer units through PLCC/Wi-Fi. This allows for comprehensive monitoring and analysis of the performance of each individual module within the solar system.

Product Specs

Input Data(DC)

Recommended Input Power (STC)

(450-750)W*4, 60~75 Cell/120~150 Sub Cell

(350~550)W*8 parallel, 66~75 Cell/132~150 Sub Cell

MPPT voltage range

24V-50V

Operating voltage range

16V-60V

Maximum DC input voltage

60V

Maximum short circuit input current

20A*4

Maximum continuous input current

18A*4

Rated Output Power

2400VA

Rated Voltage/range

230V/176-265V

Rated Frequency/range

50Hz/60Hz (46.5-62)Hz

Maximum continuous output current

11.0A

Maximum Harmonic Distortion

<3%

Power Factor

>0.99 (default)

Maximum Connection Number In One String

2 units (32A circuit breaker, 12AWG cable)

Peak efficiency

97.5%

European efficiency

97%

MPPT efficiency

>99.8%

Night power consumption

<100mW

Communication method

PLCC/Wi-Fi

Safety protection class

Class I

Enclosure rating

IP67

Operating temperature

-40℃ to +70℃

Storage temperature

-40℃ to +85℃

Relative humidity

0-98%

Transformer design

High frequency transformer, Electrical isolated

Overvoltage class

OVC III (AC), OVC II (PV)

Dimension(mm)

210*230*34

Weight(kg)

7.96

Warranty

10/25 years optional

Safety Regulations

IEC/EN 61000-6, CISPR11+A1+A2,
IEC/EN 62109-1/2, EN 50549-1:2019
VDE-AR-N 4105:2018/DIN VDE 0124:2020, AS 4777.2 :2020,
INMETRO,UTE C15-712-1/DIN VDE 0126/VFR 2019, G98,
CEI 0-21:2020, NC RFG, NTS DAKKS, etc.

Remote Monitored

PVB’s monitoring device enables smart management of solar energy systems. It utilizes PLCC communication for real-time data access and module-level monitoring.
