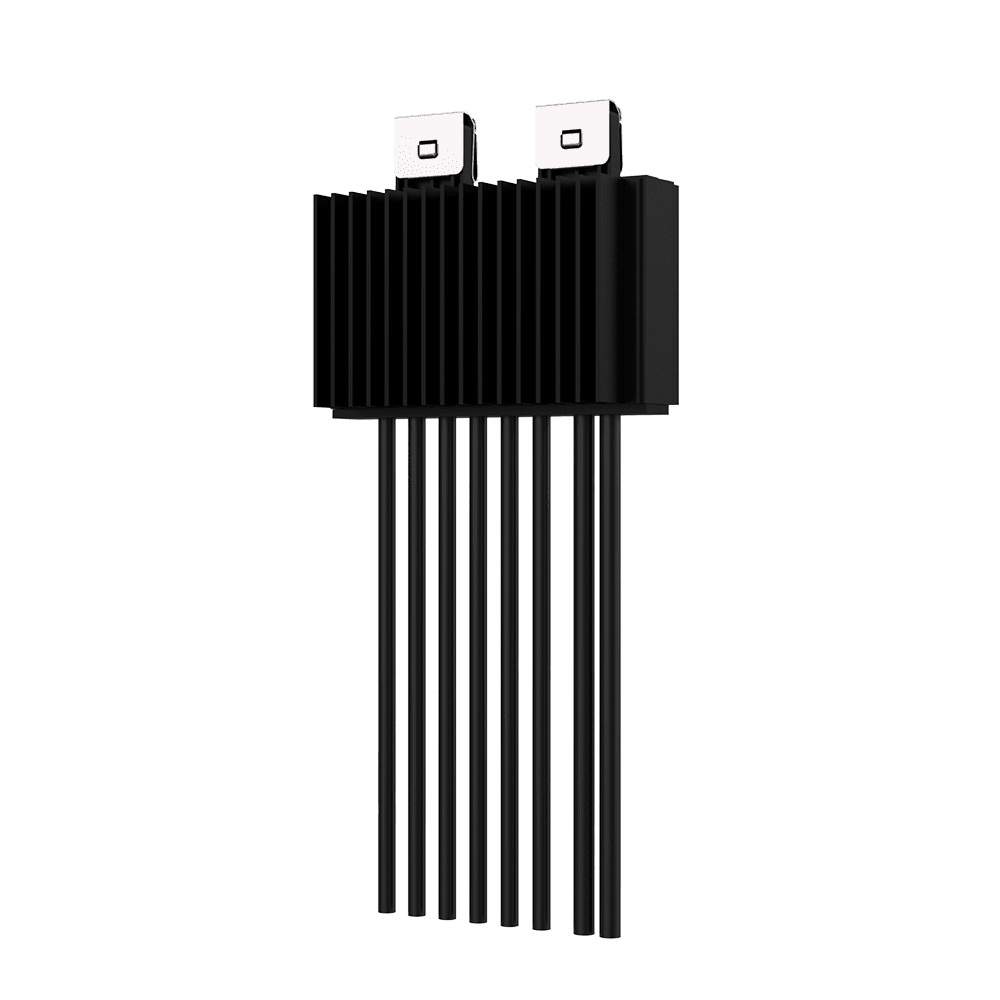

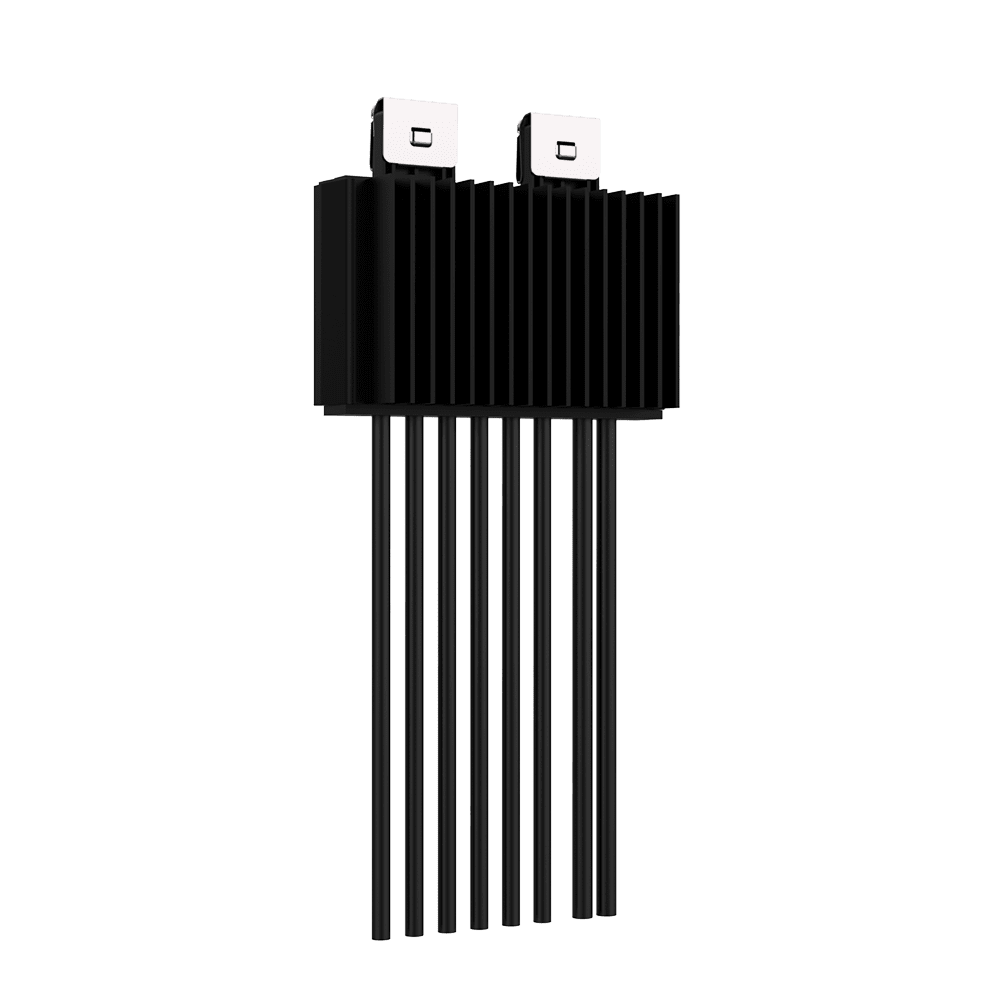

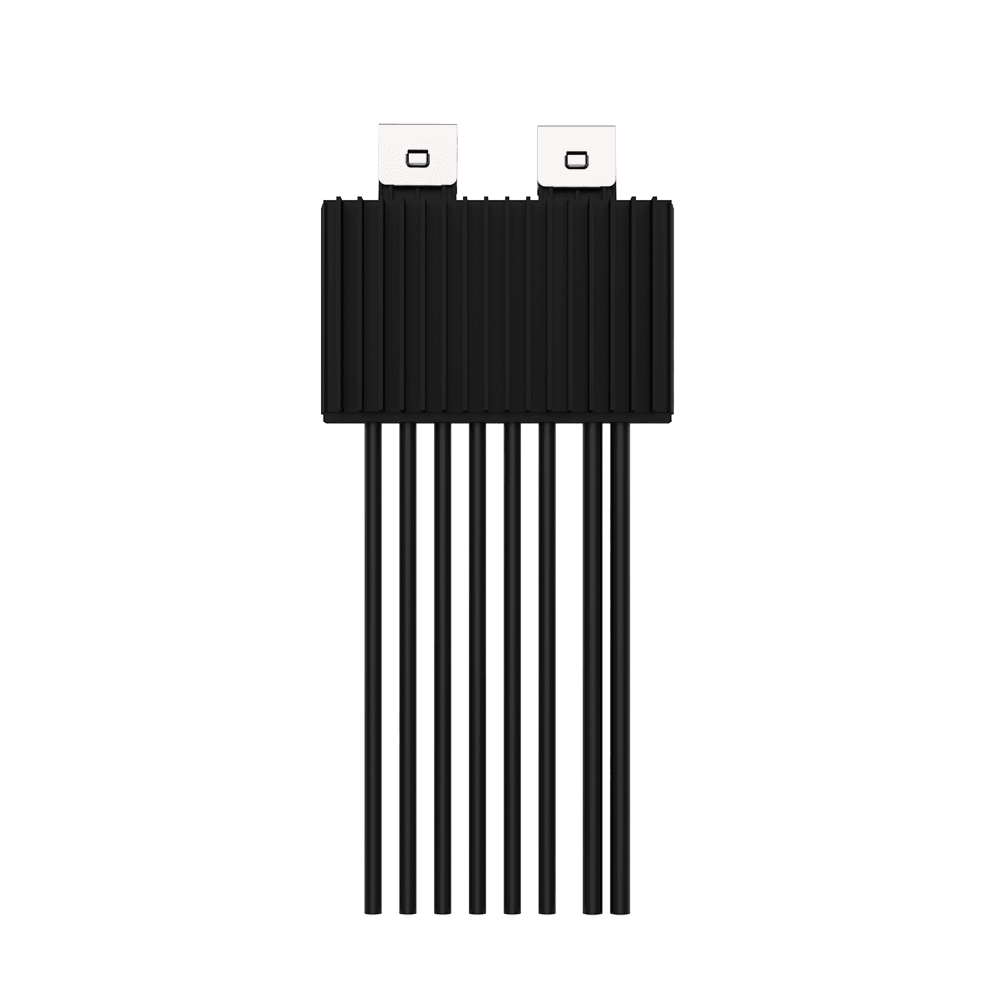

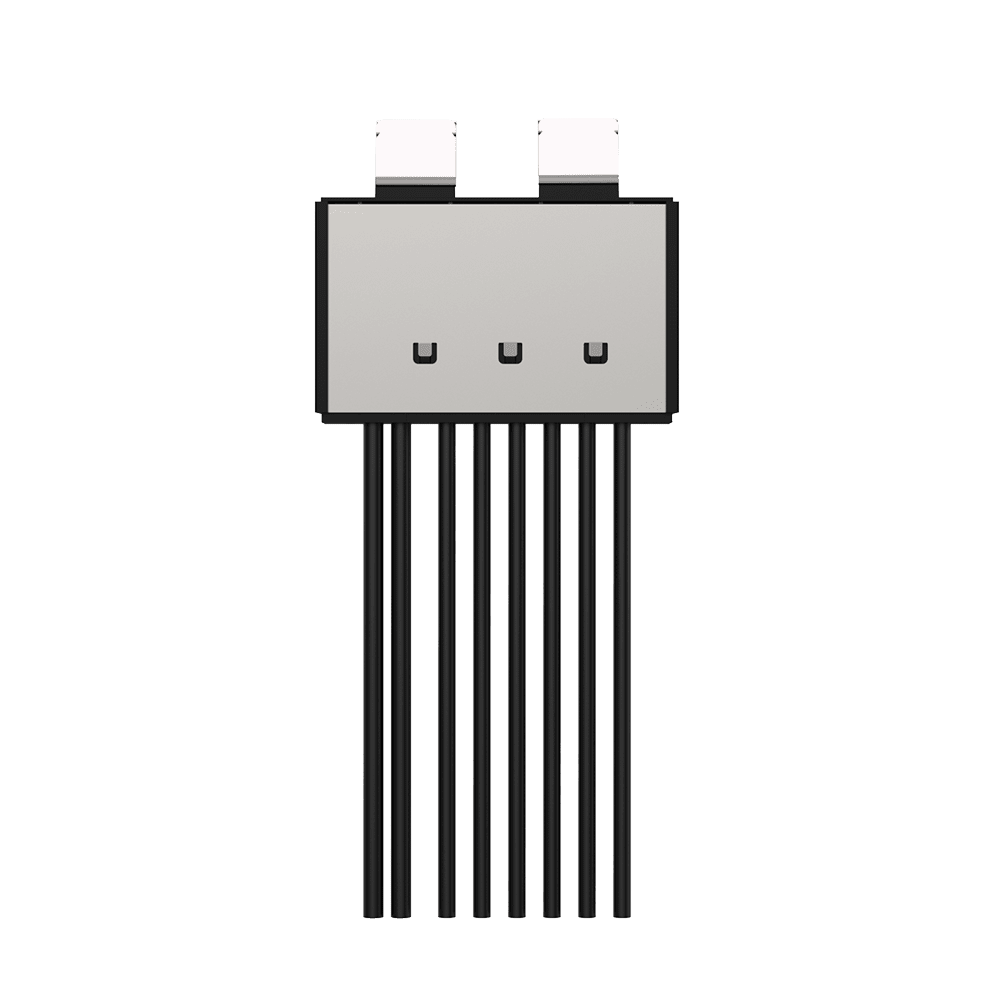

PVB BFS-A2 is a module-level solar rapid shutdown device that enhances fire safety for solar installations by providing continuous rapid shutdown functionality for the entire lifespan of the PV system.
Each BFS-A2 device can hold solar modules output max: 1500V total, the modules connect in series as solar string goes to inverter as PV system designing. The connection of BFS-A2 RSD and button switch is via communication cable.
The PVB BFS-A2 features an innovative metal casing and an advanced heat dissipation structure, enhancing its maximum operating temperature. It has industry-leading temperature adaptability, ranging from -40℃ to 85℃.
| Maximum System Input Voltage | 110V*2 |
| Maximum System Input Current | 20A |
| Maximum System Input Power | 2200W*2 |
| PV Input and Output Cables | 4.0mm²(12AWG) Cables + MC4 Connectors |
| PV Input Cables Length | 180mm |
| Output Harmonics | < 3% |
| PV Output Cables Length | 1800mm |
| IP Protection | IP68 |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -40℃ to +85℃ |
| Standard Compliance | EN 62109-1:2010, EN 61058-1:2018 |
| PV Connectors | Staubli MC4(Standard) Jinko connectors for option |
| Voltage Range | 14V-28V |
| Maximum Current | 8mA |
| Maximum Power | 0.2W |
| Power Supply Cables(Signal Cables) | 2x0.823mm²(18AWG) Signal Cables + Signal Connectors |
| Power Supply Cables Length | 1800mm |
