Single-In

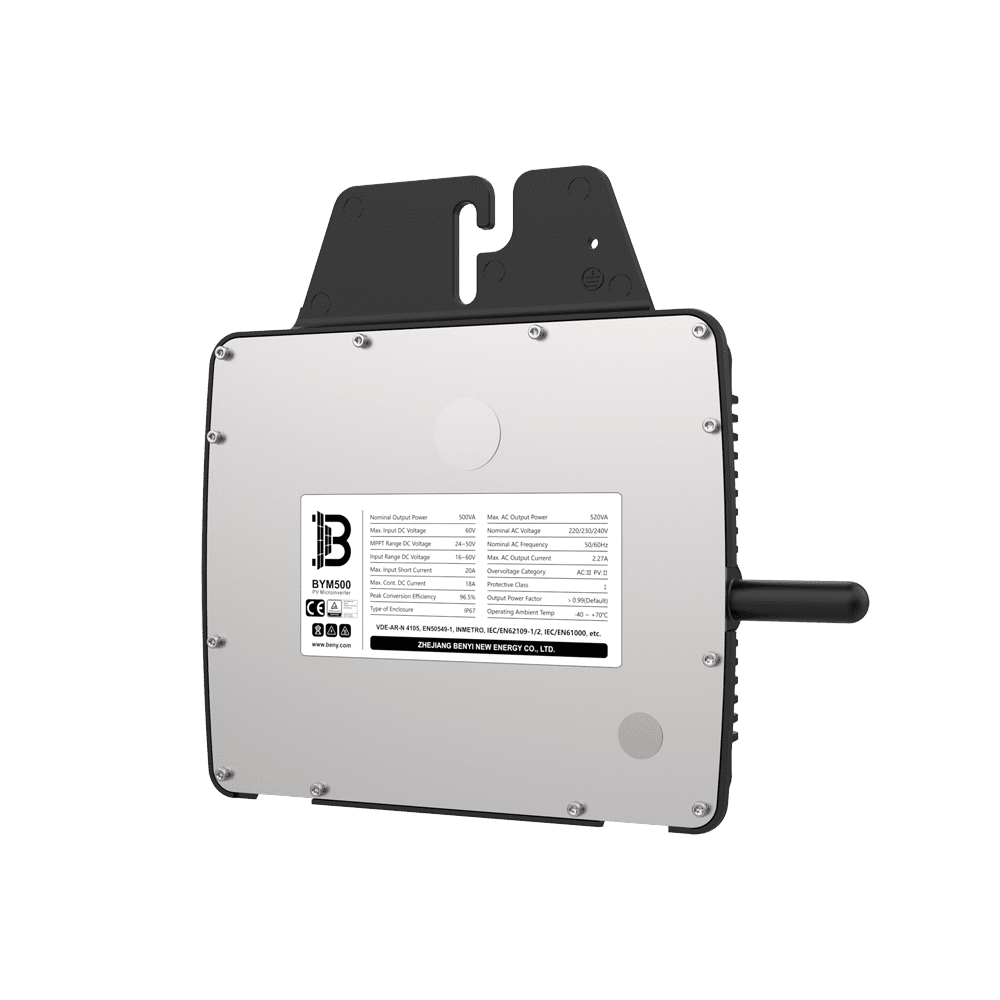

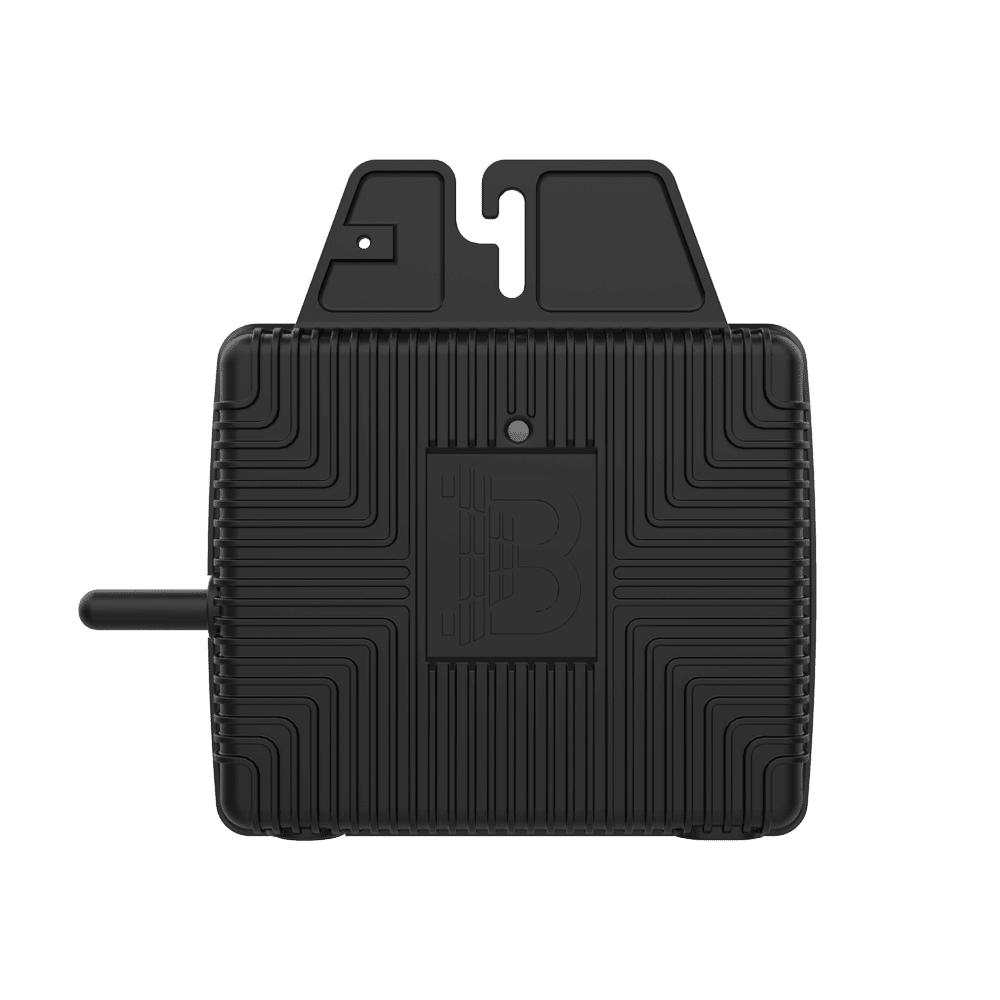

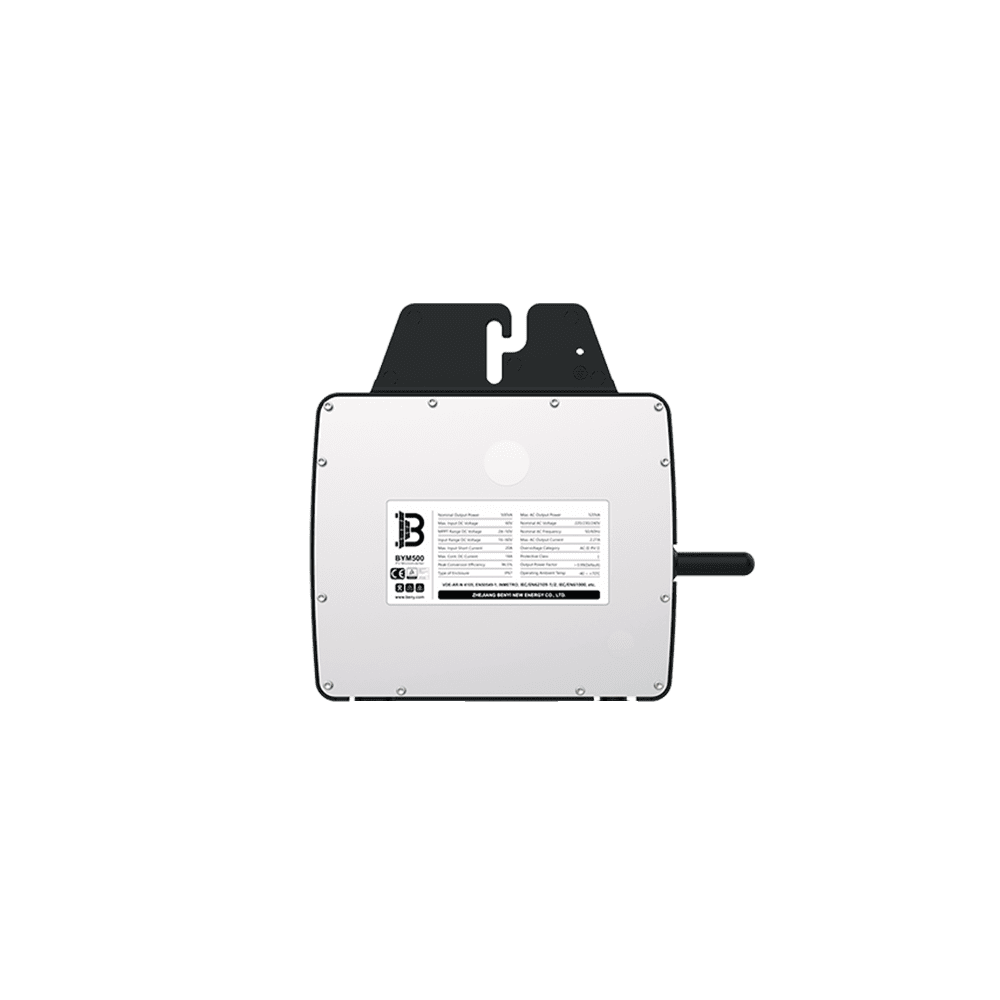

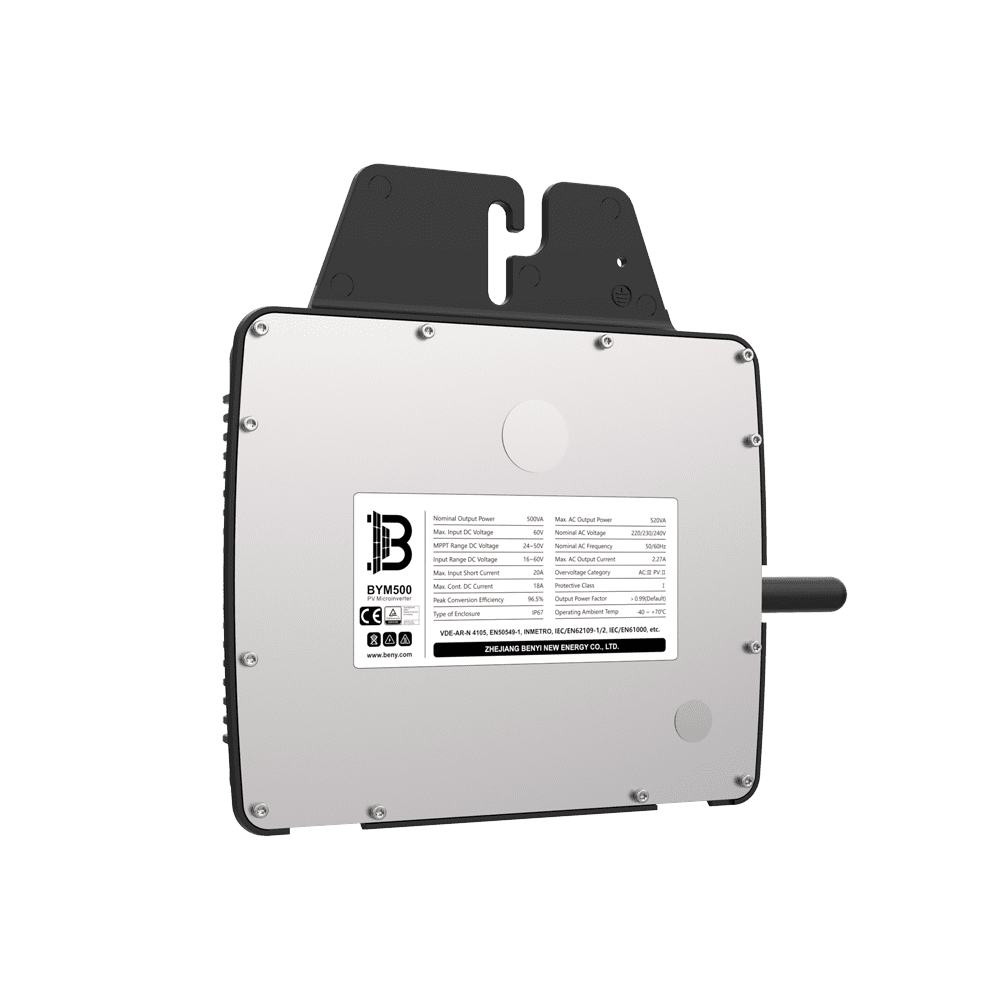

Microinverter 500

Highlights:
Technical certification :

PVB BYM500 microinverters are designed to connect to a single panel, enabling module-level maintenance and management of the PV station by monitoring the power generation of each module.

Module-level data can be seamlessly uploaded to the monitoring platform via PVB data transfer units through PLCC/Zigbee/Wi-Fi communication protocols.

Product Specs

Input Data(DC)

Recommended Input Power (STC)

(400~700)W Single, 60~75 full/120~150 sub cells, (300~450)W*2 Parallel, 72~75 full/144~150 sub cells

MPPT voltage range

24V-50V

Operating voltage range

16V-60V

Maximum DC input voltage

60V

Maximum short circuit input current

20A

Maximum continuous input current

18A

Rated Output Power

500VA

Peak output power

520VA (Vac≥230,Vmp≥34)

Nominal voltage/range

230V/176-265V

Nominal frequency/range

50Hz/60Hz (46.5-62)Hz

Maximum continuous output current

2.27A

Harmonic Distortion

<3%

Content

>0.99 (default)

Maximum number of branch connections

8 units (24A circuit breaker, 10AWG cable)

Peak efficiency

96.5%

European efficiency

96%

MPPT efficiency

>99.8%

Night power consumption

<100mW

Communication method

PLCC/Zigbee Optional/Wi-Fi

Safety protection class

Class I

Enclosure rating

IP67

Operating temperature

-40℃ to +70℃

Storage temperature

-40℃ to +85℃

Relative humidity

0-98%

Transformer design

High frequency transformer, Electrical isolated

Overvoltage class

OVC III (AC), OVC II (PV)

Overvoltage class

OVC III (AC), OVC II (PV)

Dimension(mm)

210*230*34

Weight(kg)

2.39

Warranty

10/25 years Optional

Safety Regulations

IEC/EN 61000-6,CISPR11+A1+A2, IEC/EN 62109-1/2,EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE 0124:2020, AS 4777.2 :2020, INMETRO, UTE C15-712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020,NC RFG, NTS DAKKS.

Remote Monitored

PVB’s monitoring device enables smart management of solar energy systems. It utilizes PLCC communication for real-time data access and module-level monitoring.
