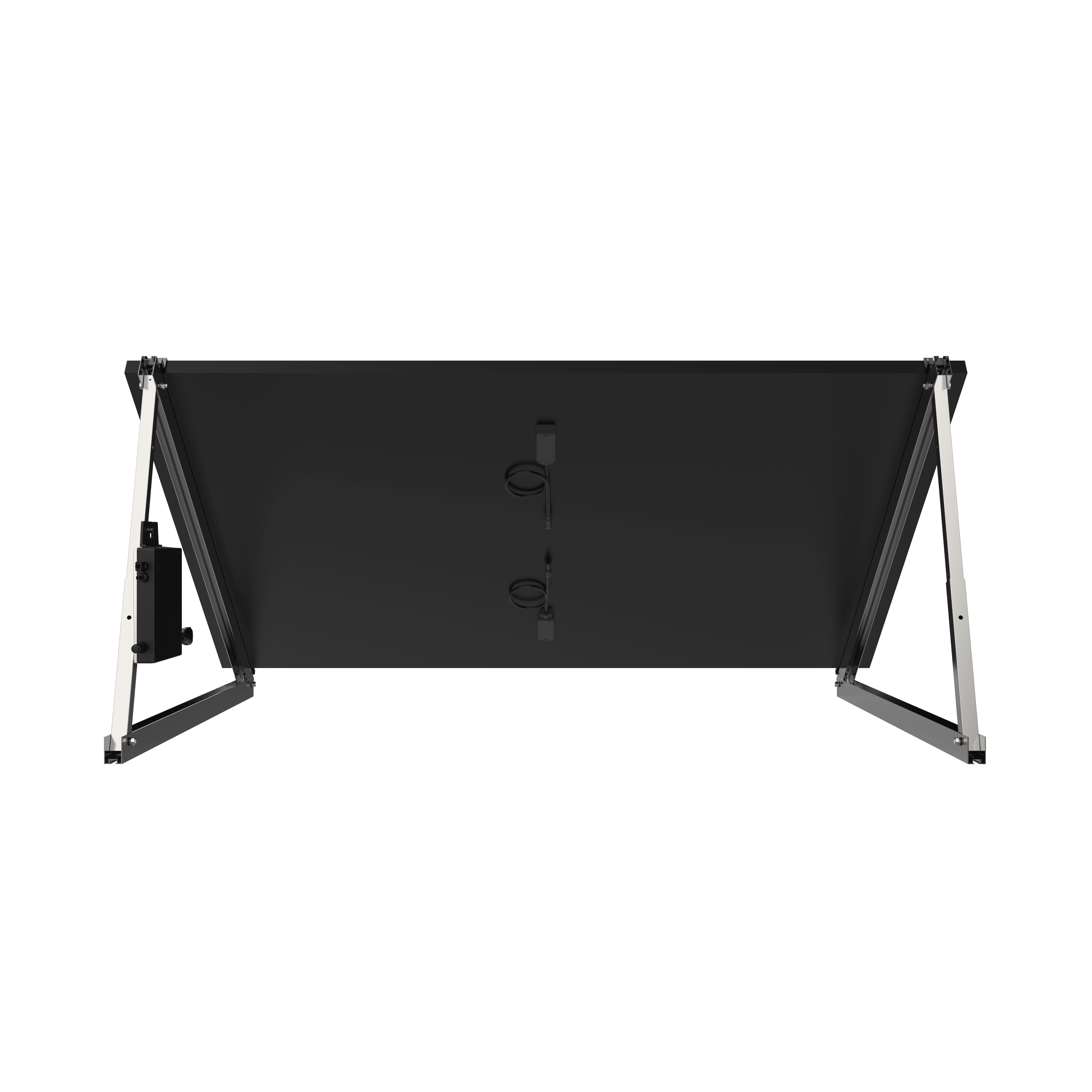

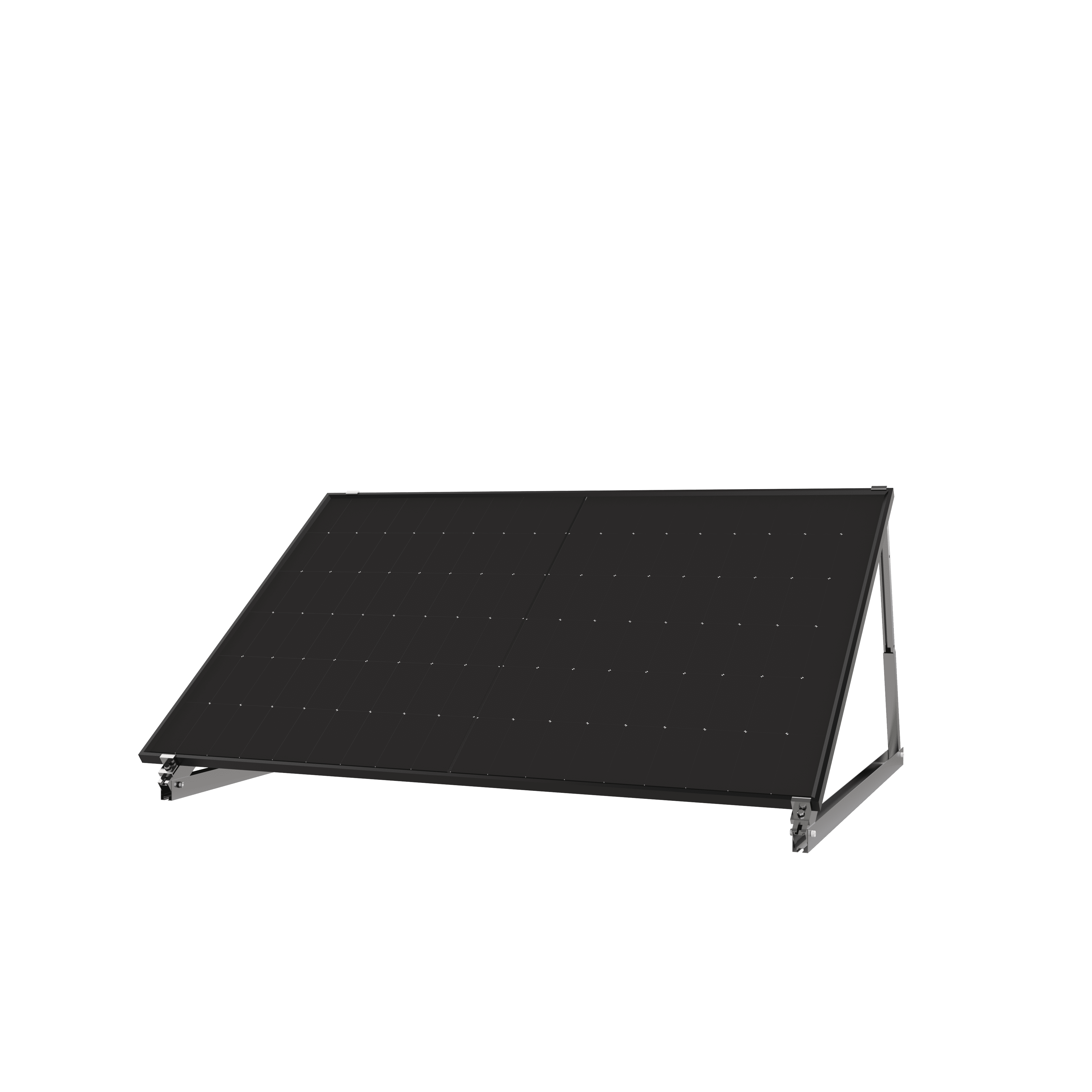

Balcony Solution 800W

PVB BYM800 microinverter connect to 2 module and enable module-level maintenance and management of the PV station by monitoring power generation of each module.

Module-level data can be uploaded to the monitoring platform via our data transfer units through Wi-Fi.

Highlights:
Technical certification :
Safety and Reliability

PVB microinverters for solar panels has an IP67 waterproof rating for lasting performance in any climate.

Low DC voltage reduces danger and guarantees a secure installation. Safety is always our first priority.

Save Annual Electric Bill

The amount you can save on your electricity bill with PVB Easy Solar Kit depends on your total consumption. The higher your energy consumption, the more likely you are to fully utilize your equipment’s output, maximizing your financial return.

Furthermore, the amount you pay your electricity provider per kWh, including any additional costs and taxes, should be considered. In short, you can save up to 50% on your electricity bill.

Microinverter Life Up to 25 Years

Components of PVB microinverter are selected from world-class brands.

And our solar panel has a lifespan of up to 30 years.

Plug and Play

PVB adopts plug and play design for DIY solar system easily.

It contributes to a quick, simple, and economical installation process.

Microinverter Life Up to 25 Years

Components of PVB microinverter are selected from world-class brands.

And our solar panel has a lifespan of up to 30 years.

Plug and Play

PVB adopts plug and play design for DIY solar system easily.

It contributes to a quick, simple, and economical installation process.

Plug and Play

PVB adopts plug and play design for DIY solar system easily.

It contributes to a quick, simple, and economical installation process.

Product Specs

Input Data(DC)

MPPT voltage range

24V-50V

Operating voltage range

16V-60V

Max. short circuit current

30A*1/20A*2

Max. input current

26A*1/13A*2

Rated Output Power

800VA

Maximum Output Power

800VA (Vac≥230,Vmp≥35)

Rated voltage/range

230V(176V~265V)

Rated Frequency/range

50Hz/60Hz (46.5-62)Hz

Maximum continuous output current

3.64A

Maximum Harmonic Distortion

<4%

Power Factor

>0.99 (default)

Peak efficiency

96.5%

MPPT efficiency

>99.8%

Night power consumption

<100mW

Communication method

PLCC/Bluetooth+Wi-Fi(Optional)

Safety protection class

Class I

Enclosure rating

IP67

Operating temperature

-40℃ to +70℃

Storage temperature

-40℃ to +85℃

Relative humidity

0-98%

Transformer design

High frequency transformer, Electrical isolated

Overvoltage class

OVC III (AC), OVC II (PV)

Warranty period

12 / 25years Optional

Dimensions(L*W*H mm)

268.5*215*40

Weight(kg)

3.6

Maximum Power (Pmax)

430

Voc(V)

40.1

Isc(A)

13.38

Vmpp(V)

33.8

Impp(A)

12.76

Efficiency

21.99%

Cable Length

5m

Copper Diameter

1.5mm2

Cable Length

Betteri (Female)

Copper Diameter

EU standard

Smart APP Control

  • Real-time data analysis, visualizing power generation

  • Efficient operation and hierarchical management

  • Remote login and multiple devices supported

  • Quickly view solutions for product faults

pvb monitor app

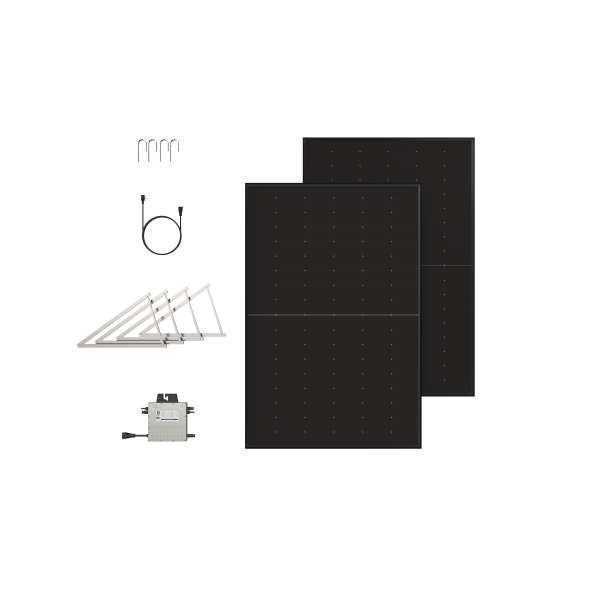

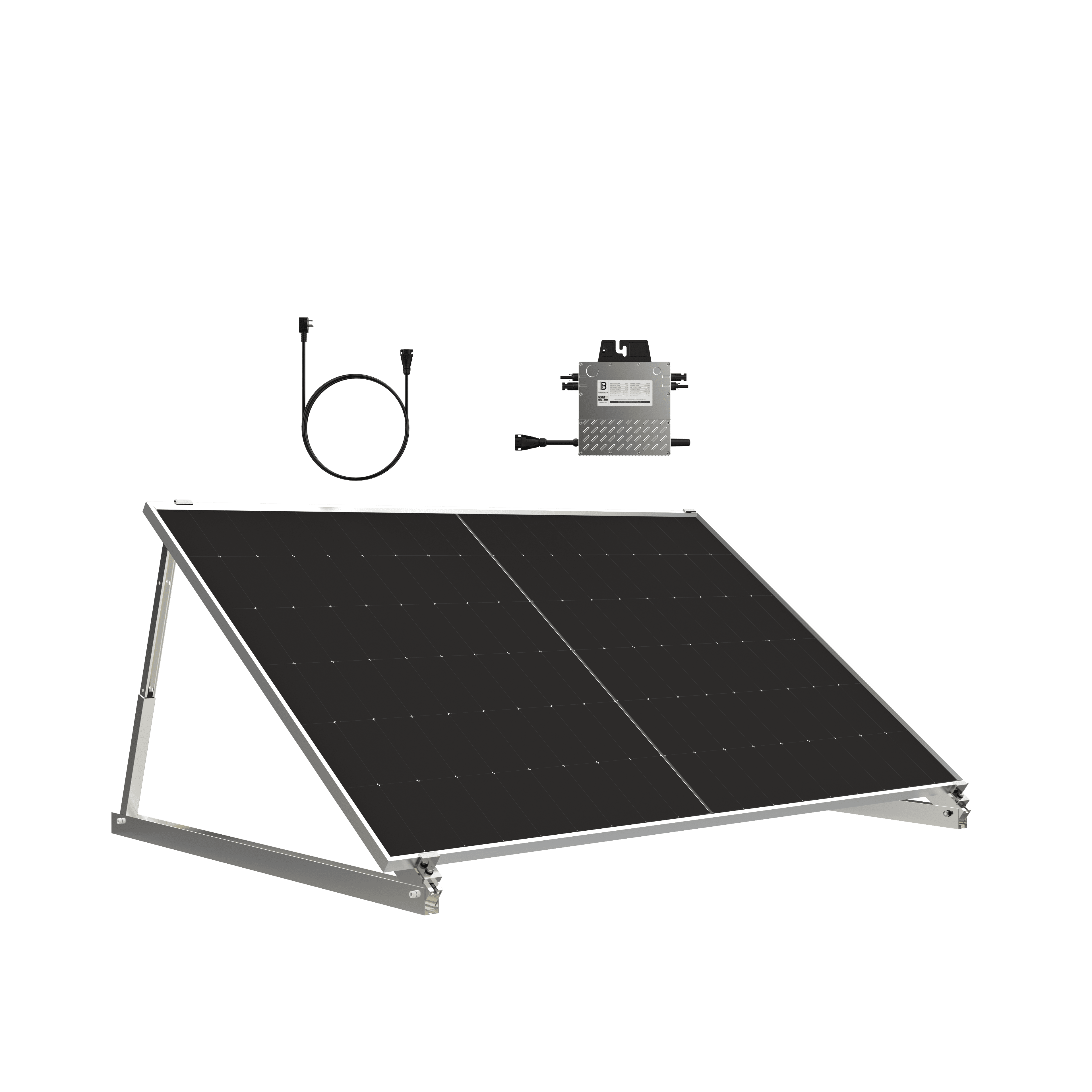

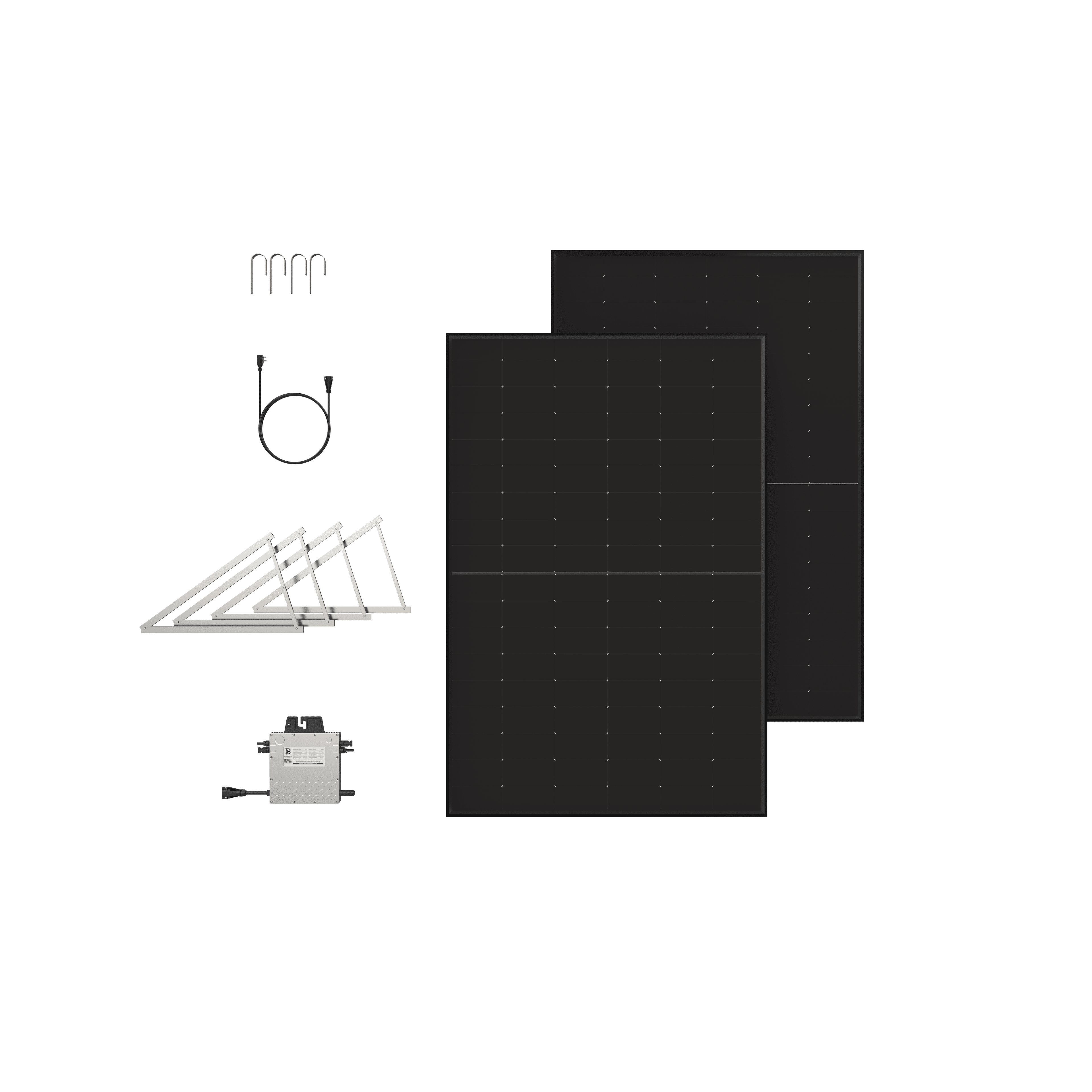

Easy Solar Kit for Balcony Solution 800W

solar panel

2×430W Solar Panels

800W Microinverter

Bracket

Electric Cable

FAQs About Balcony Solar Kit

Even in cases of shadowing or mismatched panels, optimal performance is guaranteed via individual MPPT for every panel.

The glass panel, carbon steel base, and protective-coated cast iron microinverter make the system ideal for extended outdoor use. It is made to resist wind, rain, hail, and continuous sunshine.

While professional installation is an option, PVB Easy Solar Kit is designed for easy installation by homeowners with basic DIY skills.

A balcony solar system consists of compact solar panels installed on the railing or floor of a balcony or terrace. These panels capture sunlight and convert it into electricity using the photovoltaic effect. The generated electricity, in the form of direct current (DC), is then converted into alternating current (AC) by an inverter, making it suitable for use in the home.
