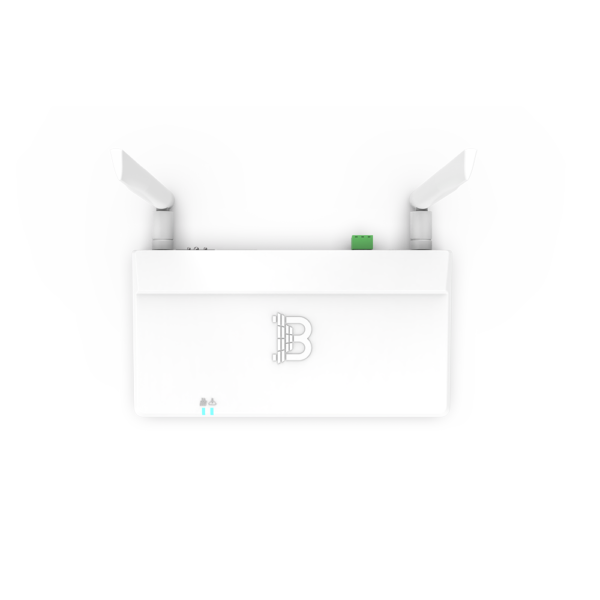

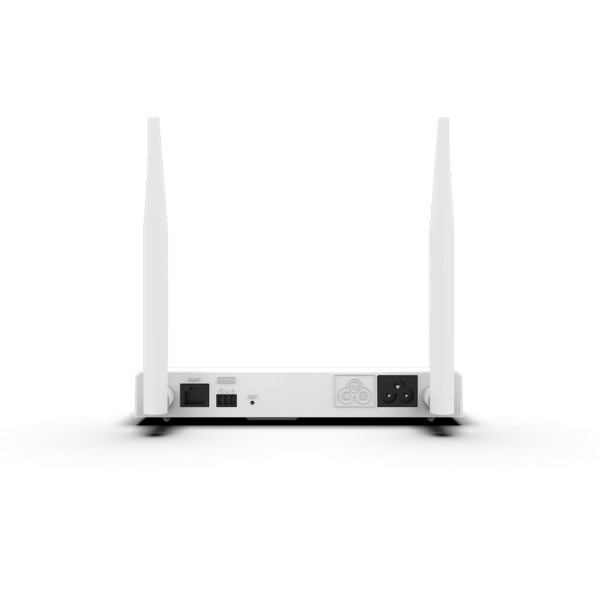

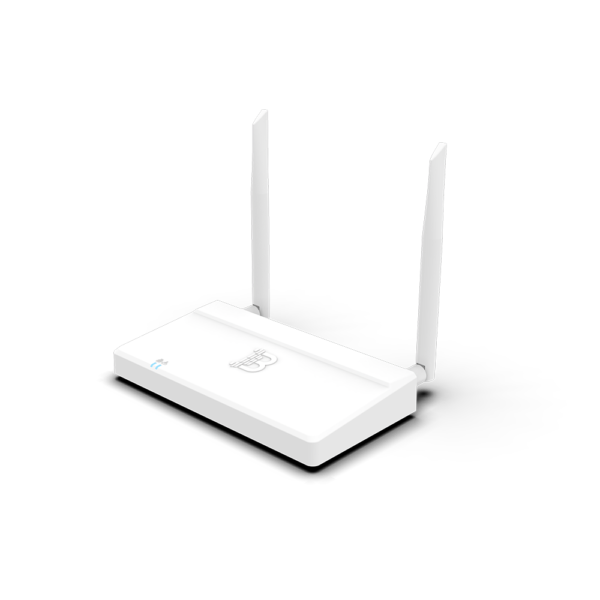

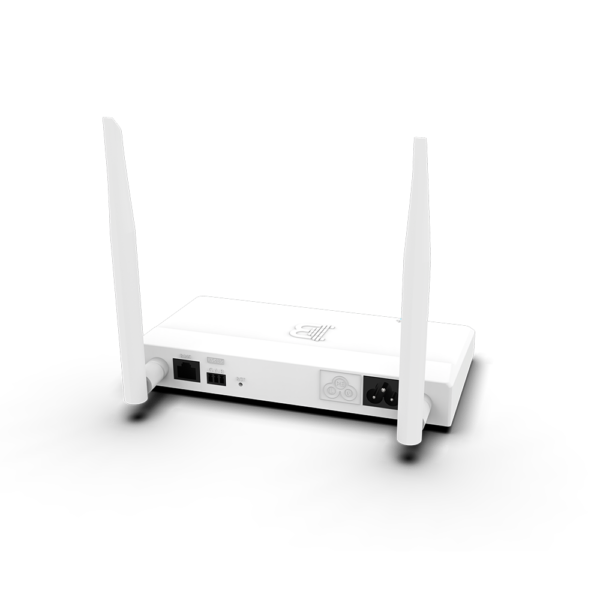

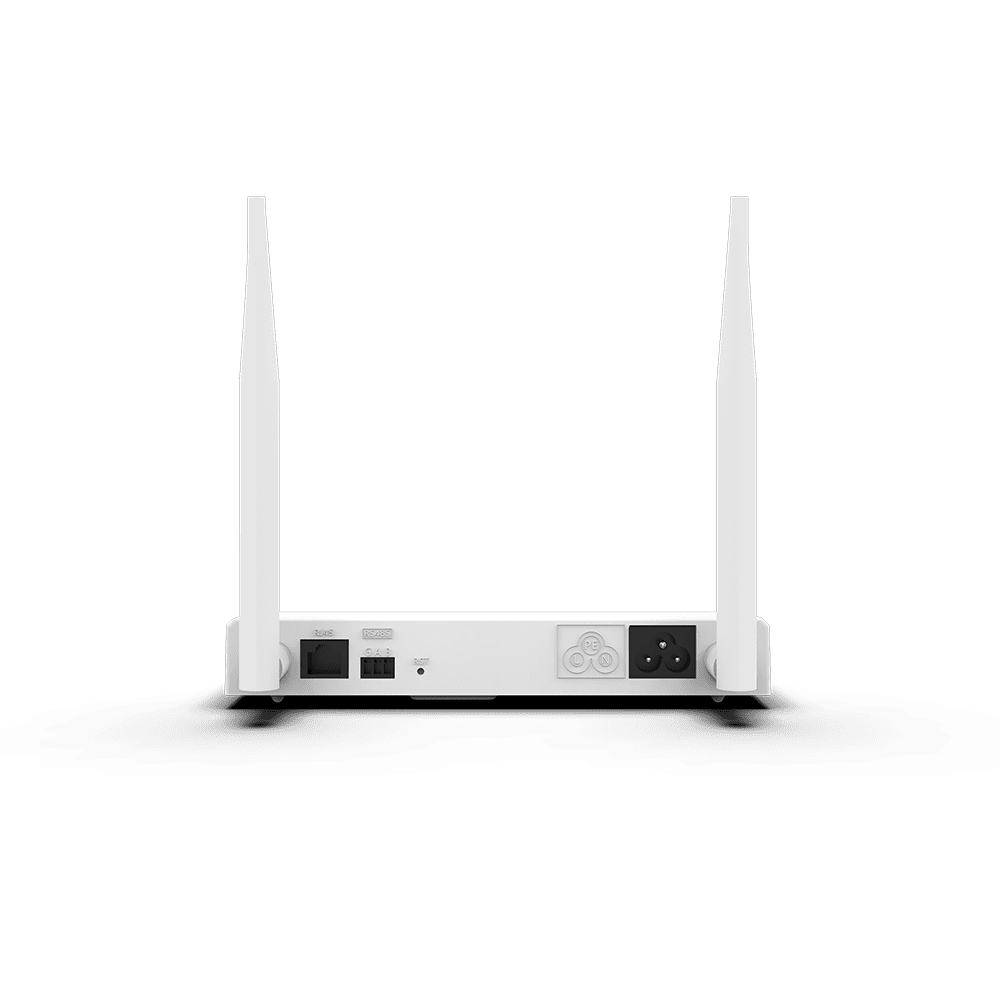

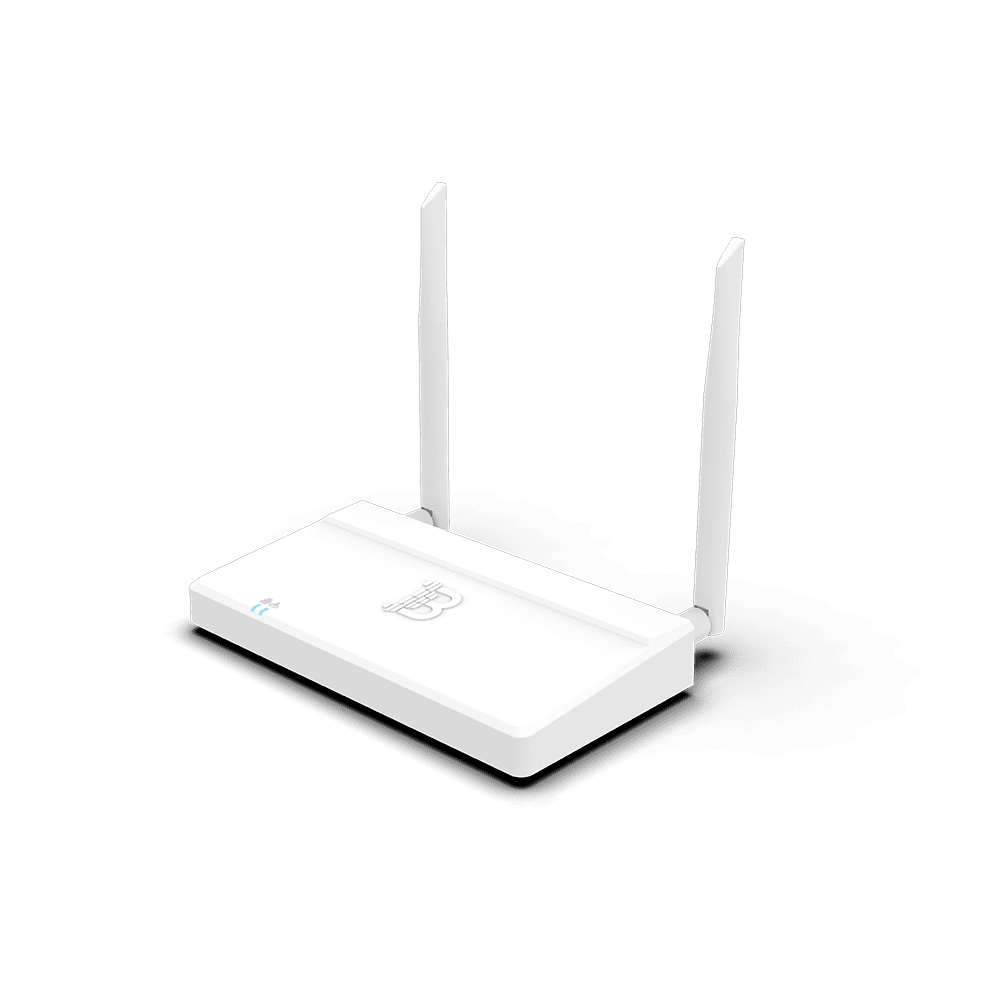

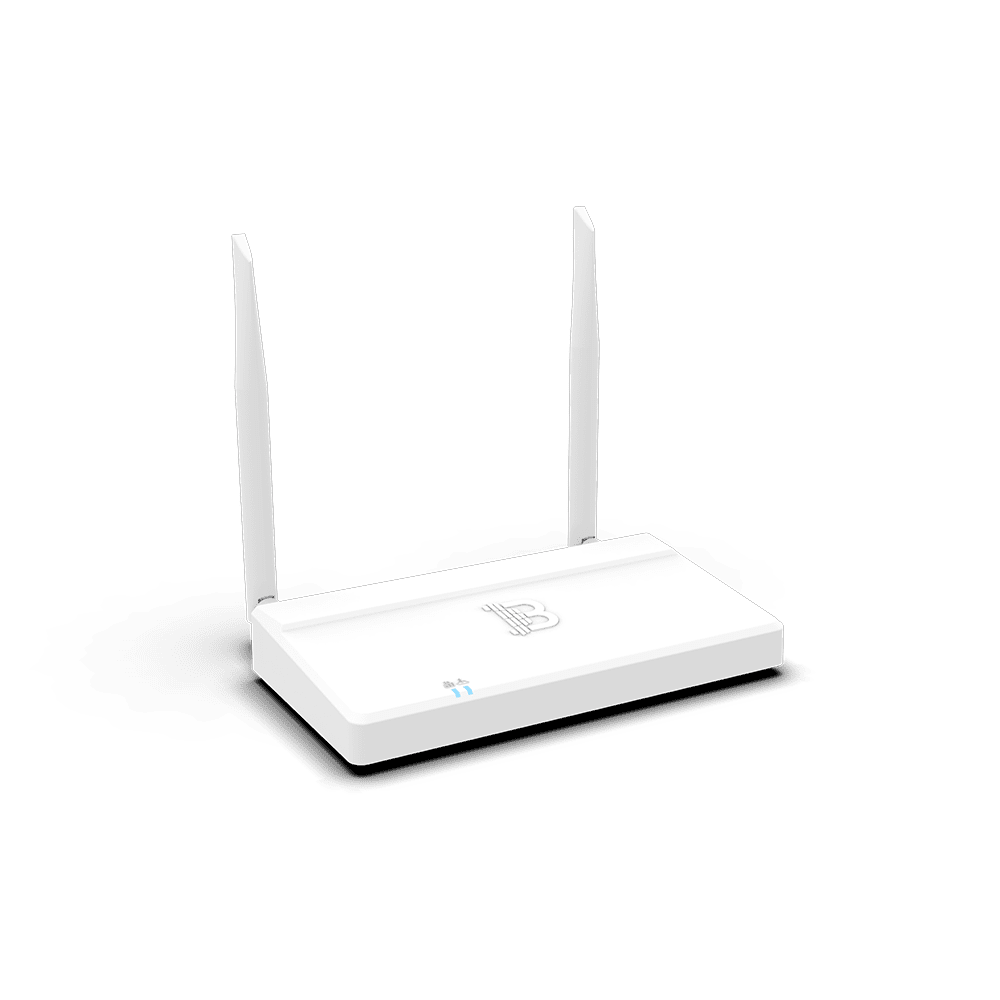

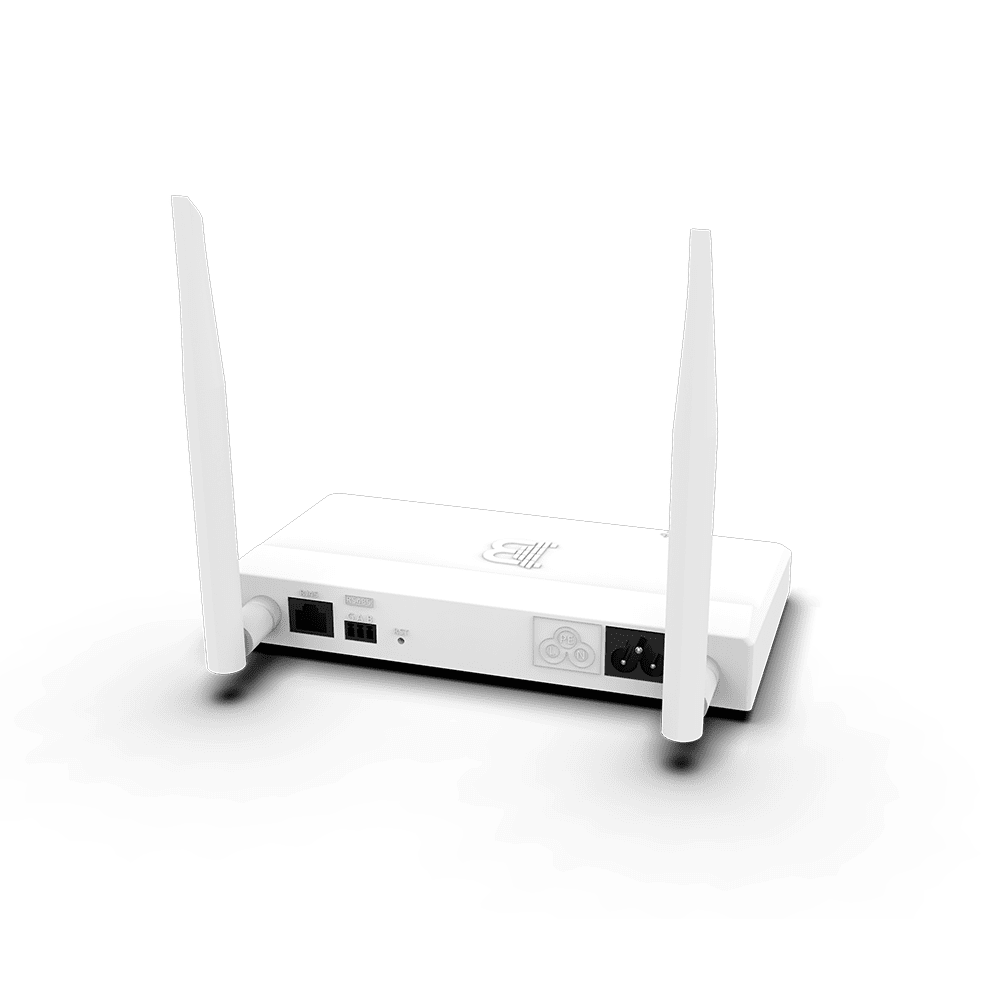

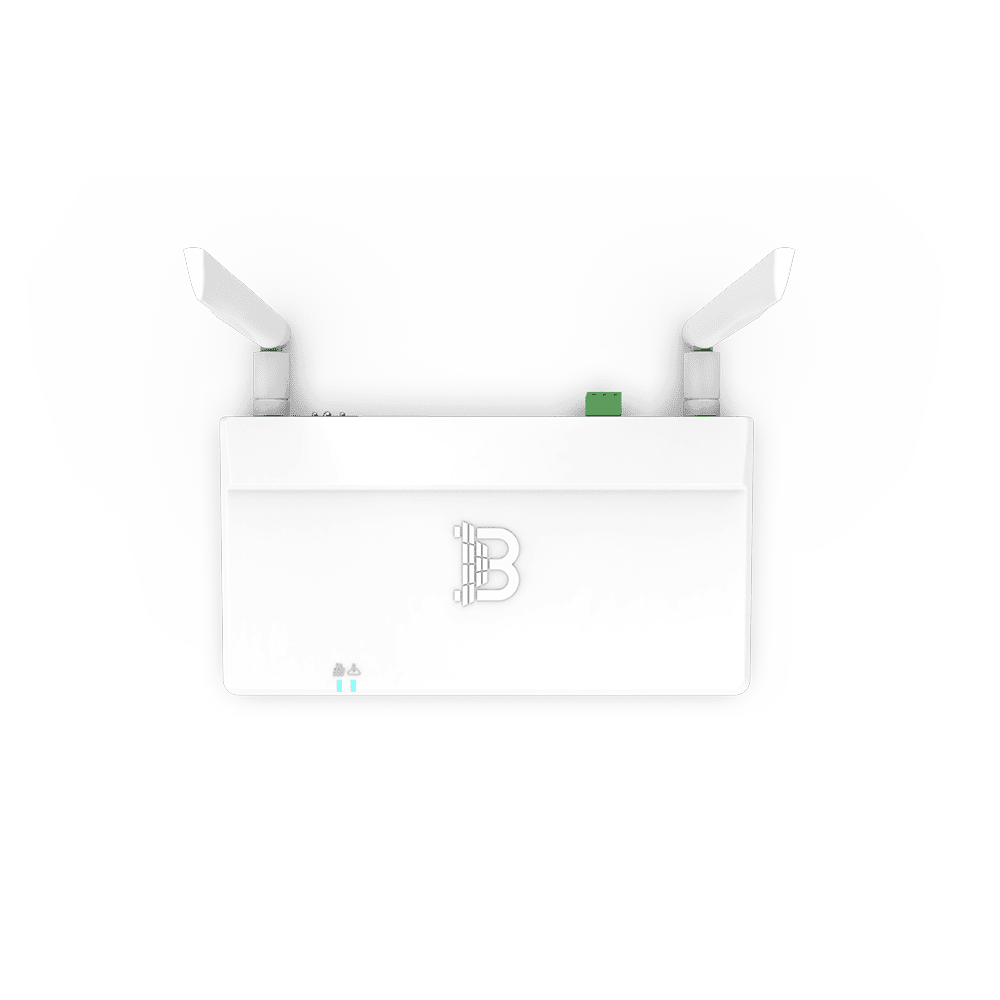

Energy Monitoring Unit BYR2000

BYR2000 is an energy monitoring unit in the microinverter system, and it is the communication gateway between the microinverter and the PV background management system.

Its main function is to conduct local area network (LAN) communication with the microinverter by means of power line carrier communication (PLCC), collect the working data of the microinverter, and send the collected information to the PV background management system through the wide area network (WAN).

In the PVB microinverter system, one BYR2000 can monitor 24 single-channel BYM500/550/600 microinverters or 6 four-channel BYM2000/2400/2800 microinverters.

Highlights:

Application Mode Diagram of BYR2000

what makes us different

Features of Energy Monitoring Unit

Remote Control

Real-time monitoring of each PV module and a series of remote operations at the same time

Data Safety

High anti-interference capability, no electromagnetic interference and data safety

Reliability

Transmission of digital signals by carrier wave along the existing power line ensures the stability

Product Specs

PLCC

Communication mode

PLCC (Power Line Carrier)

Carrier frequency

67 KHz~97 KHz

Maximum communication distance

300 m

Communication mode

RS485

Maximum communication distance

1000 m

Communication mode

Ethernet communication

Interface type

RJ45 interface

Communication rate

10/100 Mbps

Communication mode

Wi-Fi

Carrier frequency band

2.412 GHz - 2.484 GHz

Communication rate

Up to 150 Mbps

Operating voltage

Single-phase AC 85 V~265 V, 50/60 Hz

Power consumption

≤3 W

Operating current

0.9 mA

Waterproof grade

IP20

Connectable sigle-channel MI

24 units

Weight

430 g

Operating temperature

-20°C ~ +65°C

Storage temperature

-20°C ~ +85°C

Operating humidity

5%~95%RH(no condensation)

Storage humidity

1%~95%RH(no condensation)

Altitudes

2000 m



Standard

EN50065-1 IEC 62368-1,IEEE 802.15.4

802.11 b/g/n
