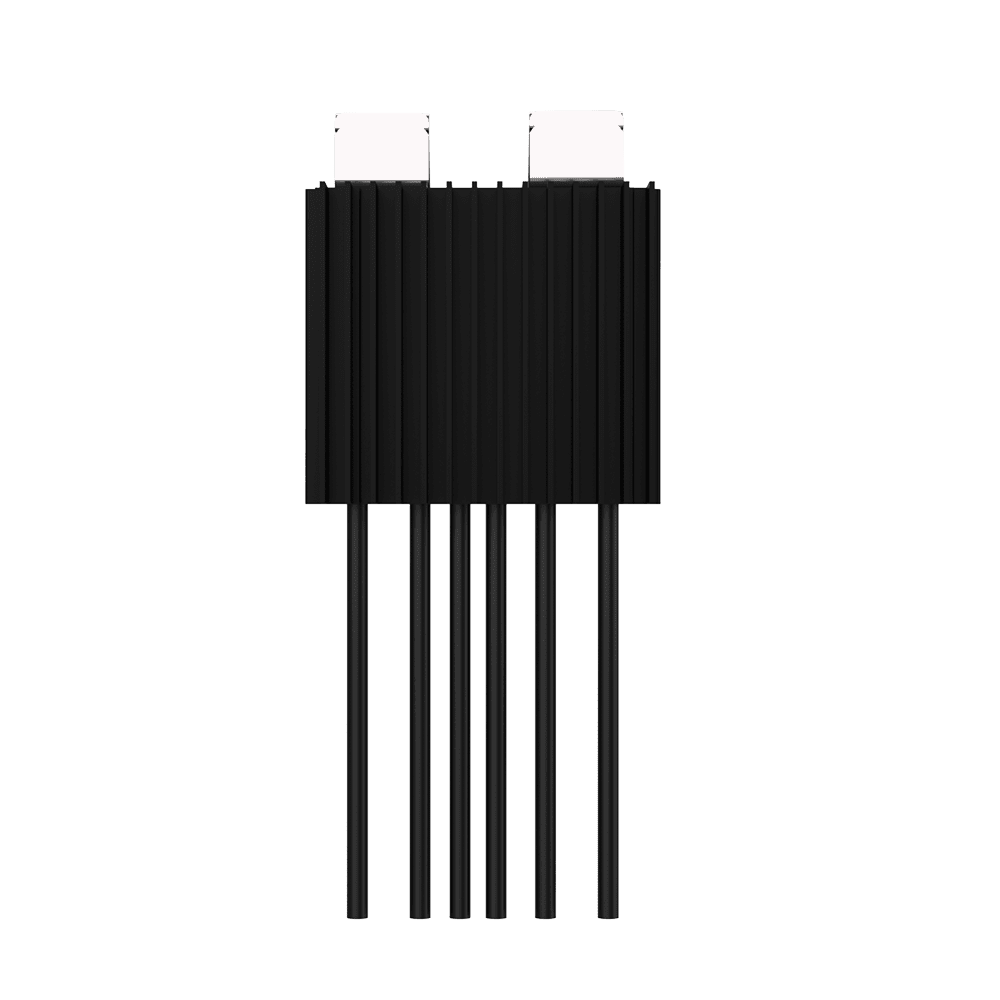

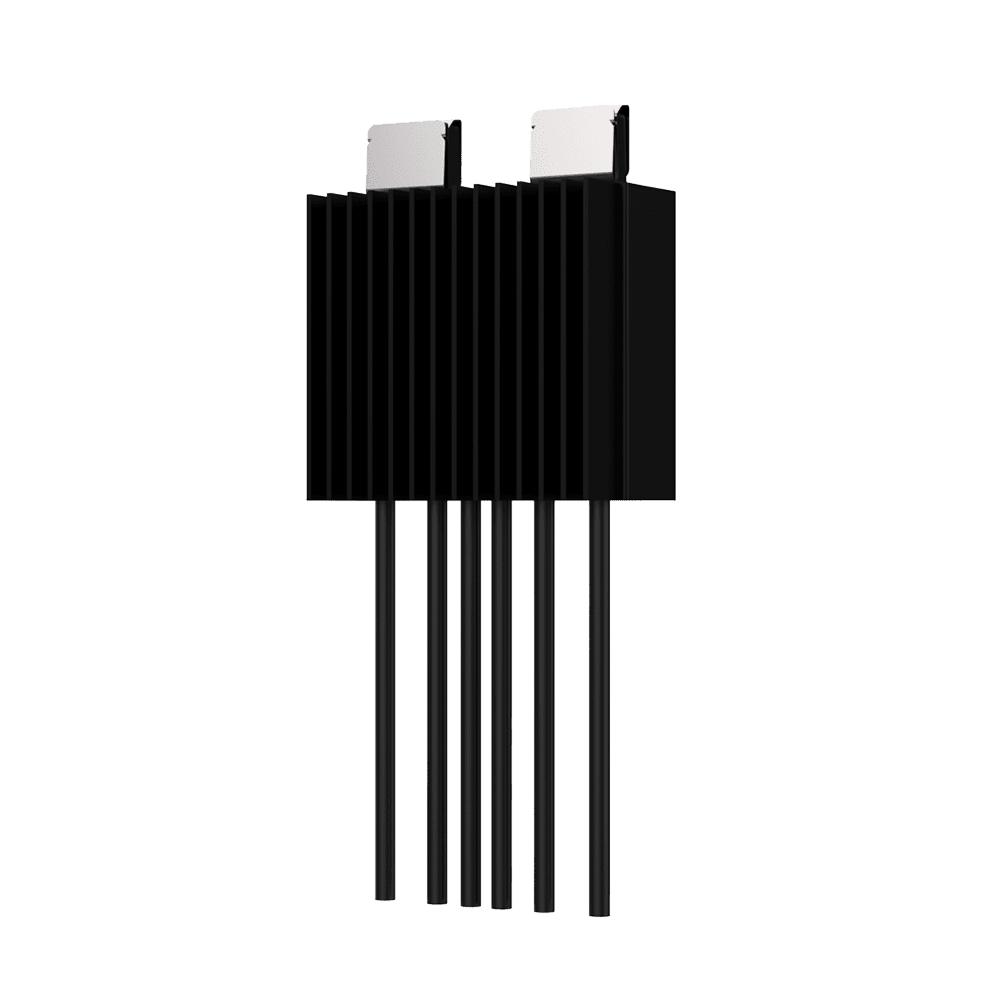

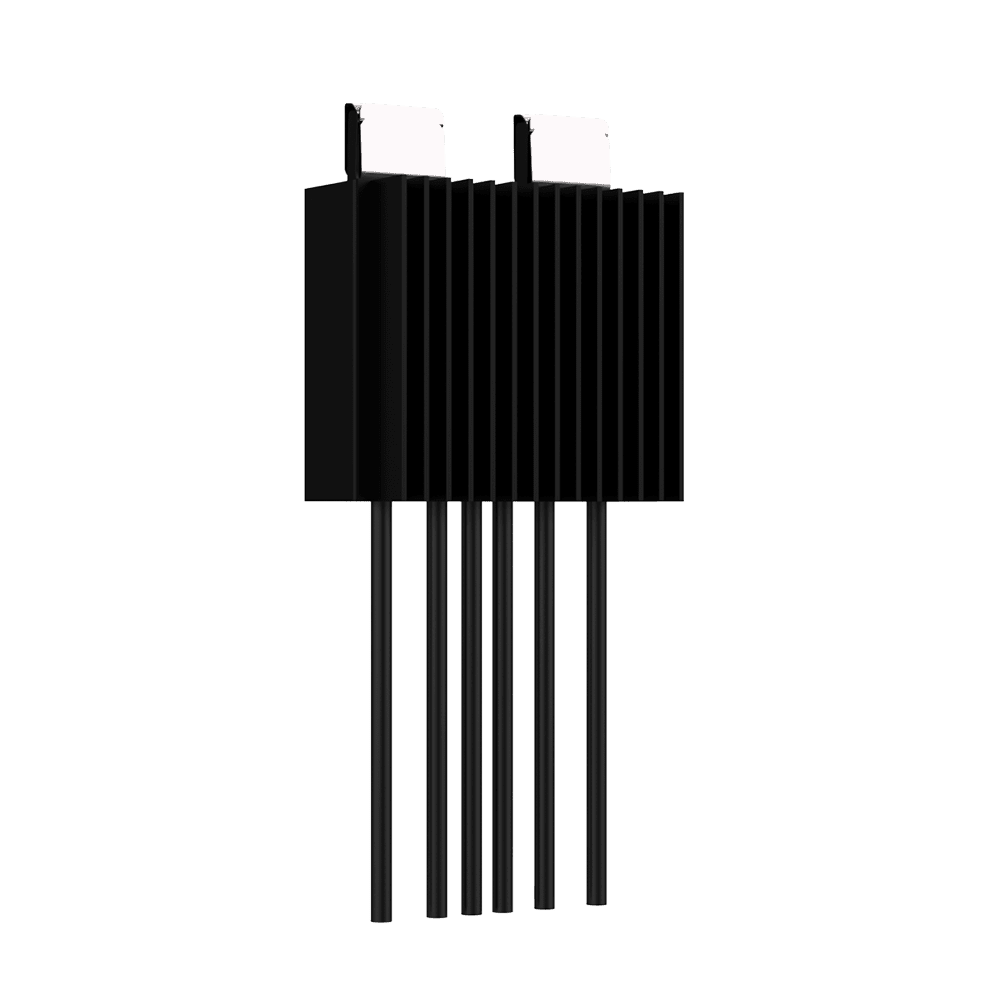

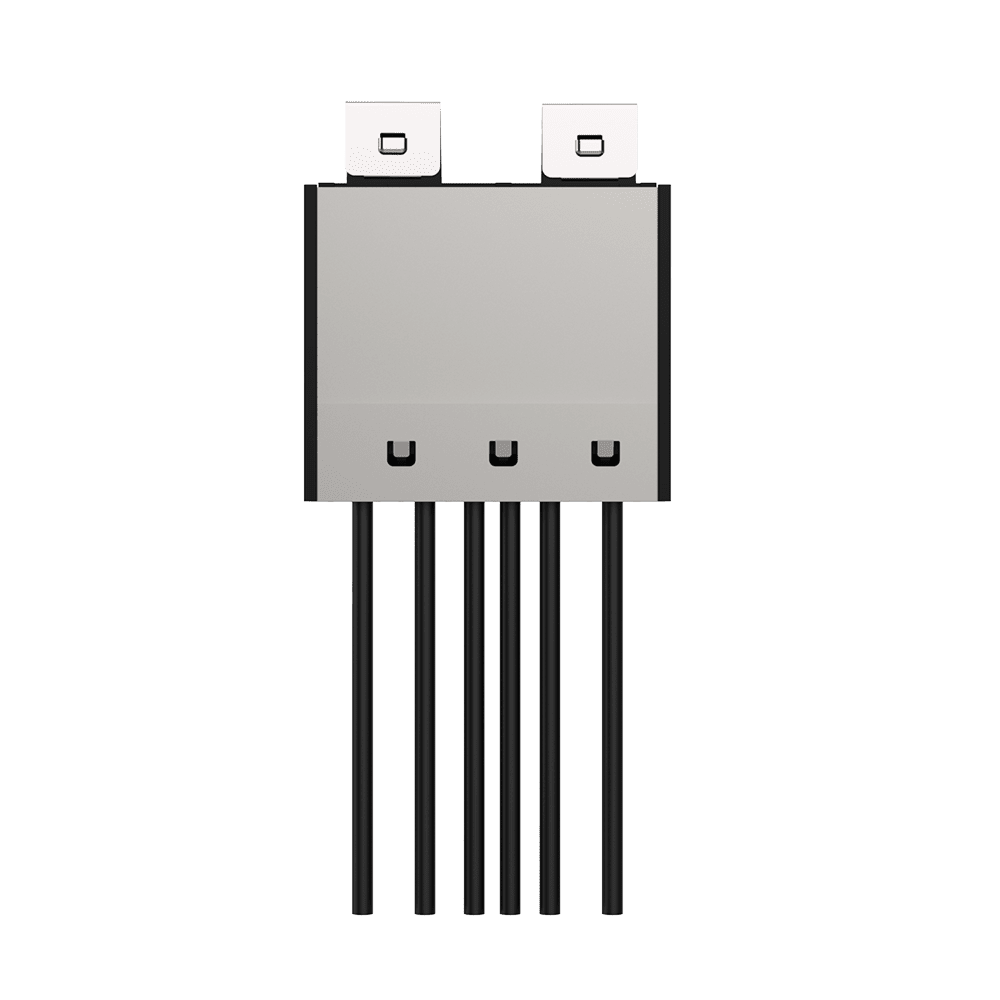

RAPID SHUTDOWN DEVICE BFS-A1

BFS-A1, a module-level solar rapid shutdown device, ensures fire safety for solar installations by maintaining continuous rapid shutdown functionality throughout the PV system’s lifespan.

Highlights:
Technical certification :

PV Rapid Shutdown Device Solution

Each BFS-A1 device can hold solar modules output max: 1500V total, the modules connect in series as solar string goes to inverter as PV system designing. The connection of BFS-A1/BFS-A2 RSD and button switch is via communication cable.

rapid shutdown device diagram
Features of Rapid Shutdown Device

PVB BFS-A1 incorporates a novel metal casing and a heat dissipation structure, improving the maximum operating temperature, thereby enabling safer and more stable functionality even in extreme environmental conditions.

rapid shutdown device application

Emergency Shutdown Switch

Emergency Shutdown Switch
rapid shutdown switch working temperture

Working temperture

IP68 Waterproof

rapid shutdown switch waterproof

Product Specs

Parameters

Maximum System Input Voltage

110V

Maximum System Input Current

20A

Maximum System Input Power

2200W

PV Input and Output Cables

4.0mm²(12AWG) Cables + MC4 Connectors

PV Input Cables Length

180mm

Output Harmonics

< 3%

PV Output Cables Length

1800mm

IP Protection

IP68

Operating Temperature

-40℃ to +85℃

Storage Temperature

-40℃ to +85℃

Standard Compliance

EN 62109-1:2010, EN 61058-1:2018

PV Connectors

Staubli MC4(Standard)

Jinko connectors for option

Voltage Range

14V-28V

Maximum Current

8mA

Maximum Power

0.15W

Power Supply Cables(Signal Cables)

2x0.823mm²(18AWG) Signal Cables + Signal Connectors

Power Supply Cables Length

1800mm
