Dual-In
Microinverter 1000

Highlights:
Technical certification :

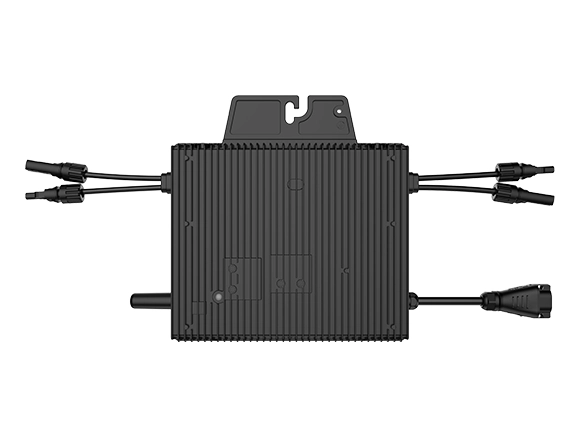

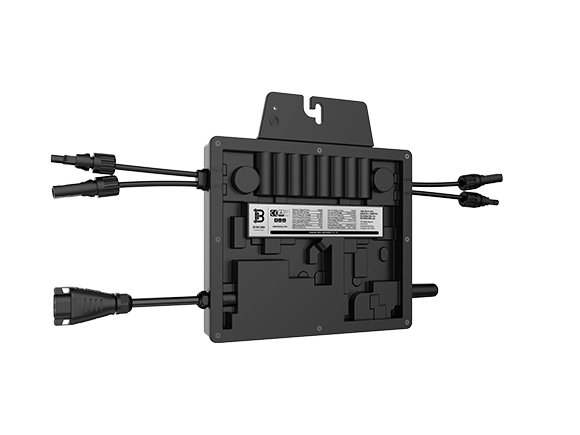

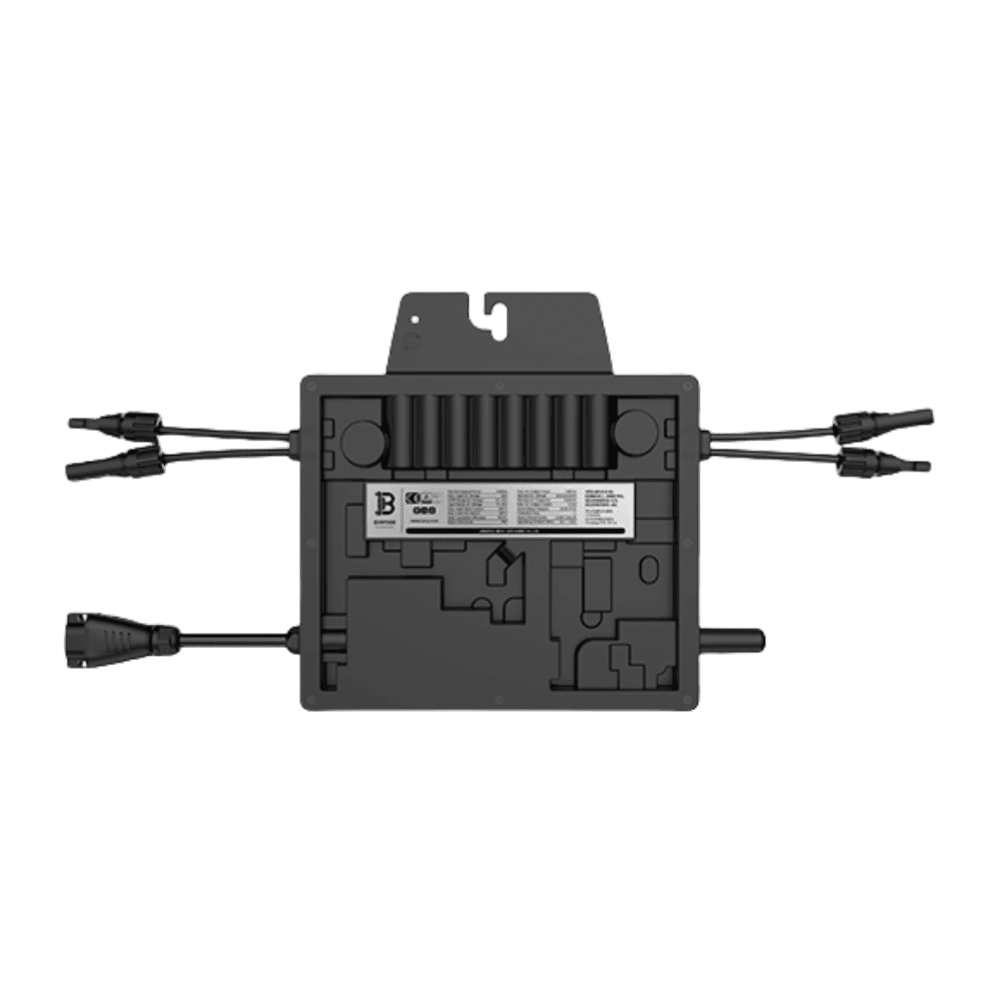

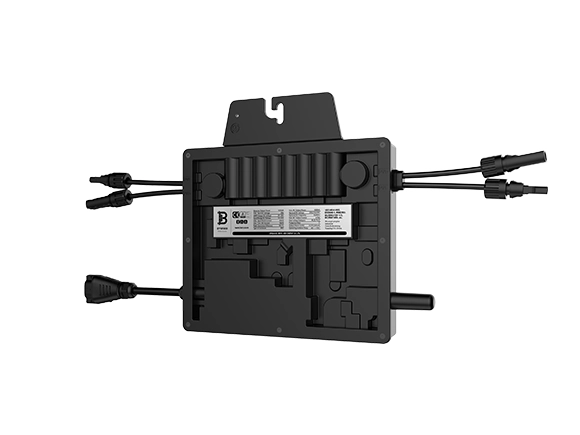

With the maximum output power of 1020VA , PVC BYM1000 microinverter connect to 2 modules and enable module-level maintenance and management of the PV station by monitoring power generation of each module.

Module-level data can be uploaded to the monitoring platform via PVC data transfer units through Wi-Fi/PLCC.

Product Specs

Input Data(DC)

Recommended Input Power (STC)

(450-750)W*2 , 60~75-cell/120~150 half-cell
(350~550)W*4 , 66~75-cell/132~150 half-cell

MPPT voltage range

24V-50V

Operating voltage range

16V-60V

Maximum DC input voltage

60V

Maximum short circuit current

20A*2

Maximum input current

18A*2

Rated Output Power

1000W

Maximum Output Power

1020VA(Vac≥230,Vmp≥34)

Rated voltage/range

230V(176V~265V)

Rated Frequency/range

50Hz/60Hz (46.5-62)Hz

Maximum continuous output current

4.55A

Maximum Harmonic Distortion

<4%

Power Factor

>0.99 (default)

Maximum Connection Number In One String

4 units (24A circuit breaker, 12AWG cable)

Peak efficiency

96.5%

MPPT efficiency

>99.8%

Night power consumption

<100mW

Communication method

PLCC/Wi-Fi

Safety protection class

Class I

Enclosure rating

IP67

Operating temperature

-40℃ to +70℃

Storage temperature

-40℃ to +85℃

Relative humidity

0-98%

Transformer design

High frequency transformer, Electrical isolated

Overvoltage class

OVC III (AC), OVC II (PV)

Warranty

10/25 years optional

Safety Regulations

IEC/EN 61000-6, CISPR11+A1+A2, IEC/EN 62109-1/2,
EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE
0124:2020, AS 4777.2 :2020, INMETRO, UTE C15-
712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020,
NC RFG, NTS DAKKS .

Remote Monitored

PVC’s monitoring device enables smart management of solar energy systems. It utilizes PLCC communication for real-time data access and module-level monitoring.
