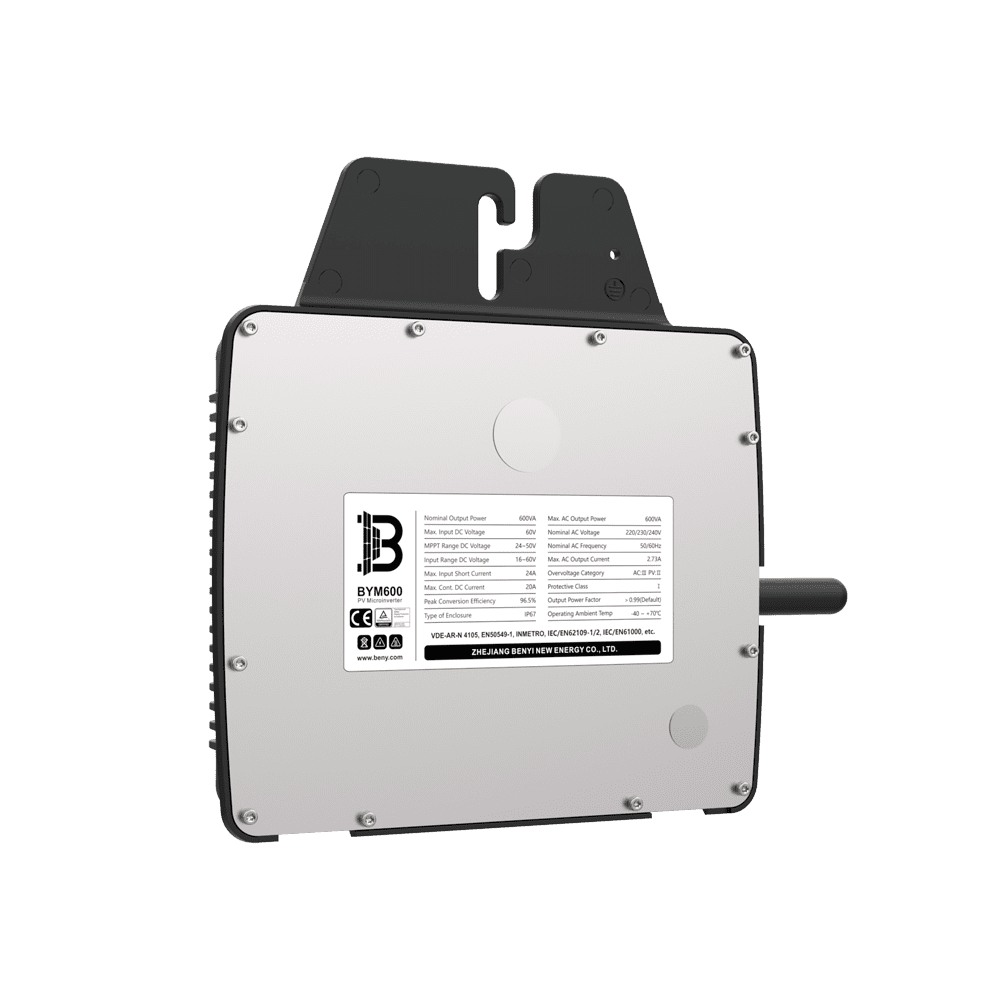

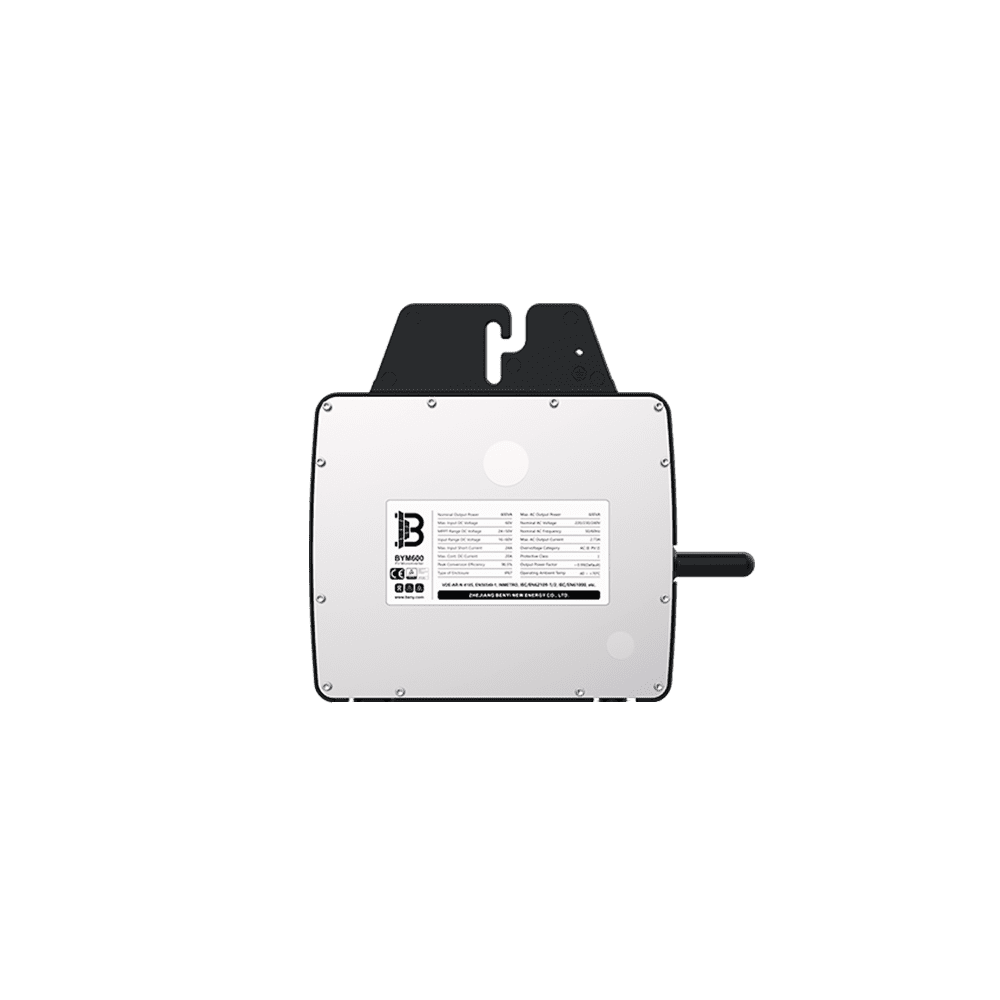

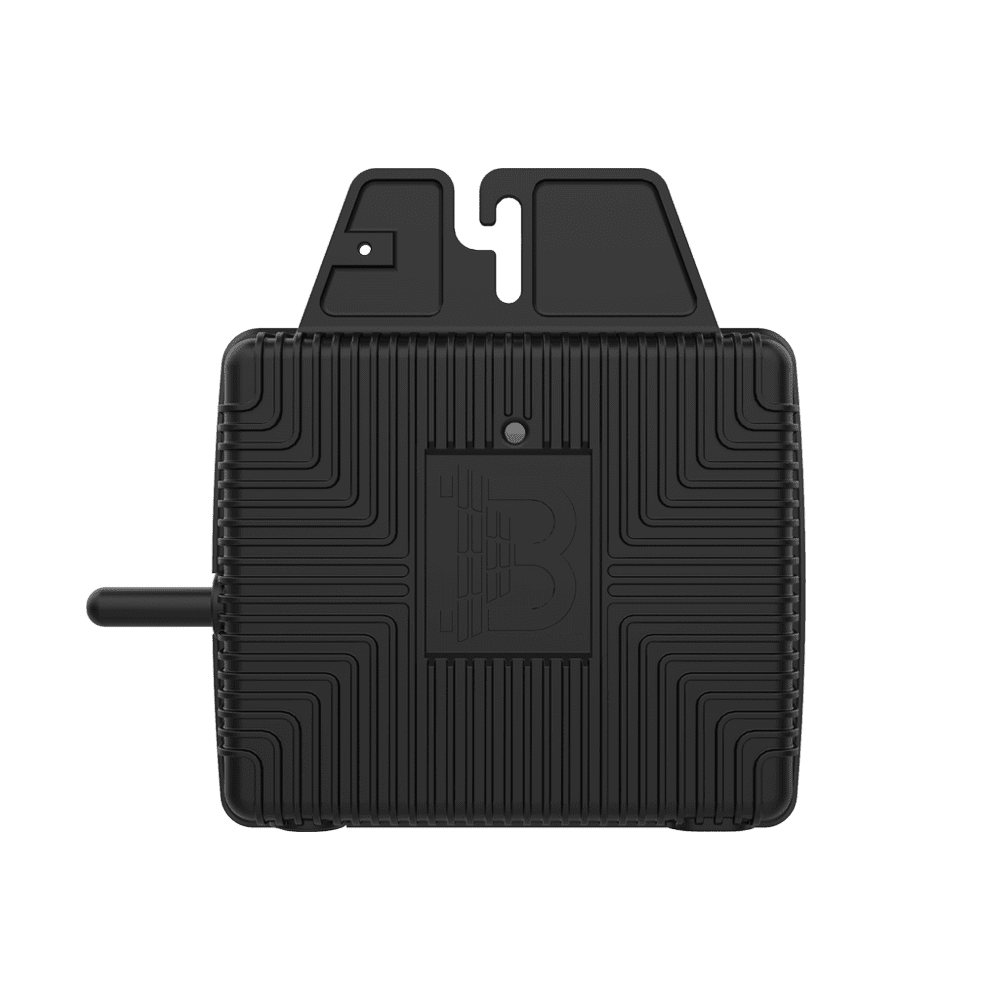

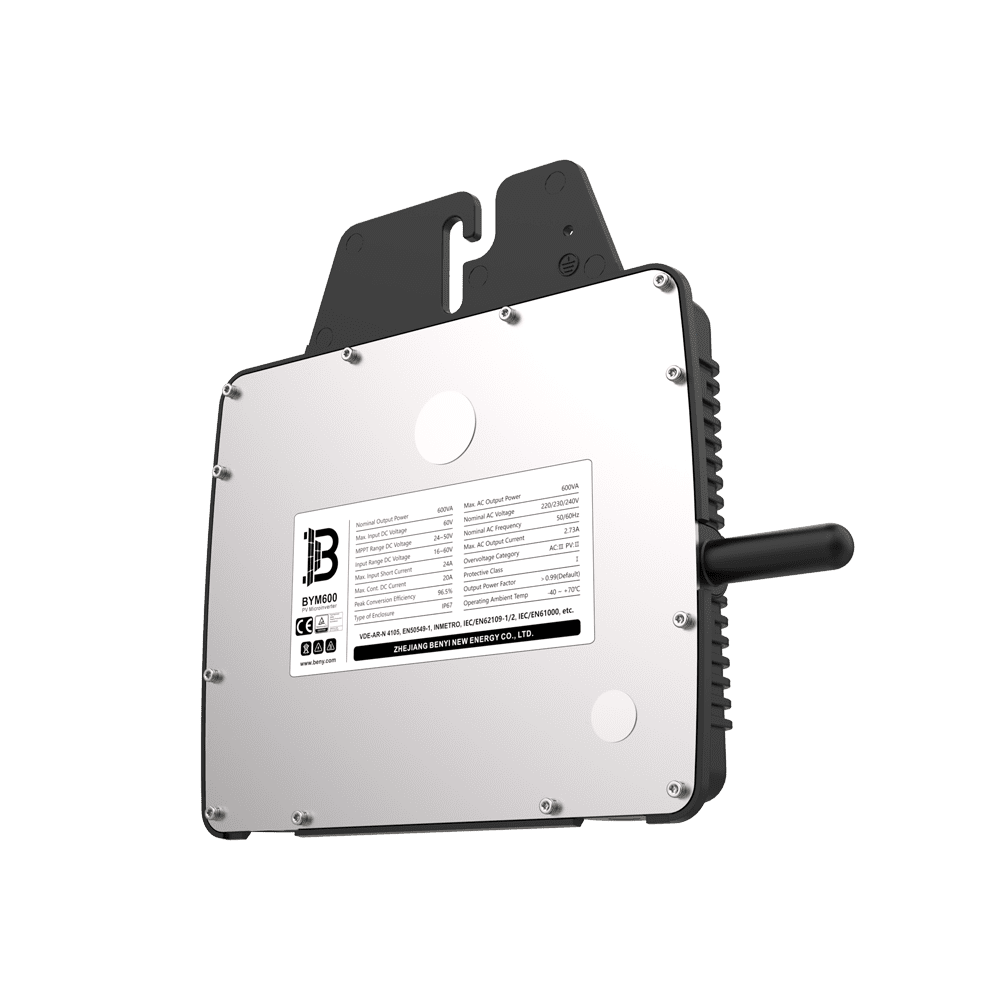

With the maximum output power of 600VA , PVB BYM600 microinverters connect to 1 module and enable module-level maintenance and management of the PV station by monitoring power generation of each module.
Module-level data can be uploaded to the monitoring platform via BENY data transfer units through PLCC/Wi-Fi.
Static MPPT efficiency 99.80%
Adapts to any system size
High efficiency for each module
20A continuous parallel input
Peak efficiency up to 96.5%
Up to 25-year warranty
Module-level online smart monitoring
World-class brands components
PVB monitoring equipment monitors the working status of each microinverter and photovoltaic module in the power station, and transmits the data to the cloud monitoring platform or local server, so that users can understand and query the working status of the power station.
PVB monitoring equipment monitors the working status of each microinverter and photovoltaic module in the power station, and transmits the data to the cloud monitoring platform or local server, so that users can understand and query the working status of the power station.
PVB monitoring equipment monitors the working status of each microinverter and photovoltaic module in the power station, and transmits the data to the cloud monitoring platform or local server, so that users can understand and query the working status of the power station.
| Recommended Input Power (Single) | (STC) 400~700+Wp , 60 ~75-cell/120~150 half-cell |
| Recommended Input Power (Dual) | (STC) (300~450Wp) *2 , 72~75-cell/144~150 half-cell (NMOT) Vmp≥34V and Imp≤12A |
| MPPT voltage range | 24V-50V |
| Operating voltage range | 16V-60V |
| Maximum DC input voltage | 60V |
| Maximum short circuit input current | 24A |
| Maximum continuous input current | 20A |
| Rated Output Power | 600VA |
| Peak output power | 600VA (Vac≥220，Vmp≥33) |
| Nominal voltage/range | 230V/176-265V |
| Nominal frequency/range | 50Hz/60Hz (46.5-62)Hz |
| Maximum continuous output current | 2.73A |
| Harmonic Distortion | <4% |
| Power Factor | >0.99 (default) |
| Maximum connection number in one string (PLCC) (30A circuit breaker, 10AWG cable) | 10 units |
| Maximum connection number in one string (Wi-Fi) (40A circuit breaker, 10AWG cable) | 14 units |
| Peak efficiency | 96.5% |
| MPPT efficiency | >99.8% |
| Night power consumption | <100mW |
| Communication method | PLCC/Bluetooth+Wi-Fi (Optional) |
| Safety protection class | Class I |
| Enclosure rating | IP67 |
| Operating temperature | -40℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
| Relative humidity | 0-98% |
| Transformer design | High frequency transformer, Electrical isolated |
| Overvoltage class | OVC III (AC), OVC II (PV) |
| Dimension（mm） | 210*230*34 |
| Weight（kg） | 2.39 |
| Warranty | 12/25 years optional |
| Safety Regulations | IEC/EN 61000-6, CISPR11+A1+A2, IEC/EN 62109-1/2, EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE 0124:2020, AS 4777.2 :2020, INMETRO, UTE C15- 712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020, NC RFG, NTS DAKKS. |
PVB provides high quality Single-In Microinverters, which maximizes power output from each PV module independently, ensuring optimal efficiency and reliability.
