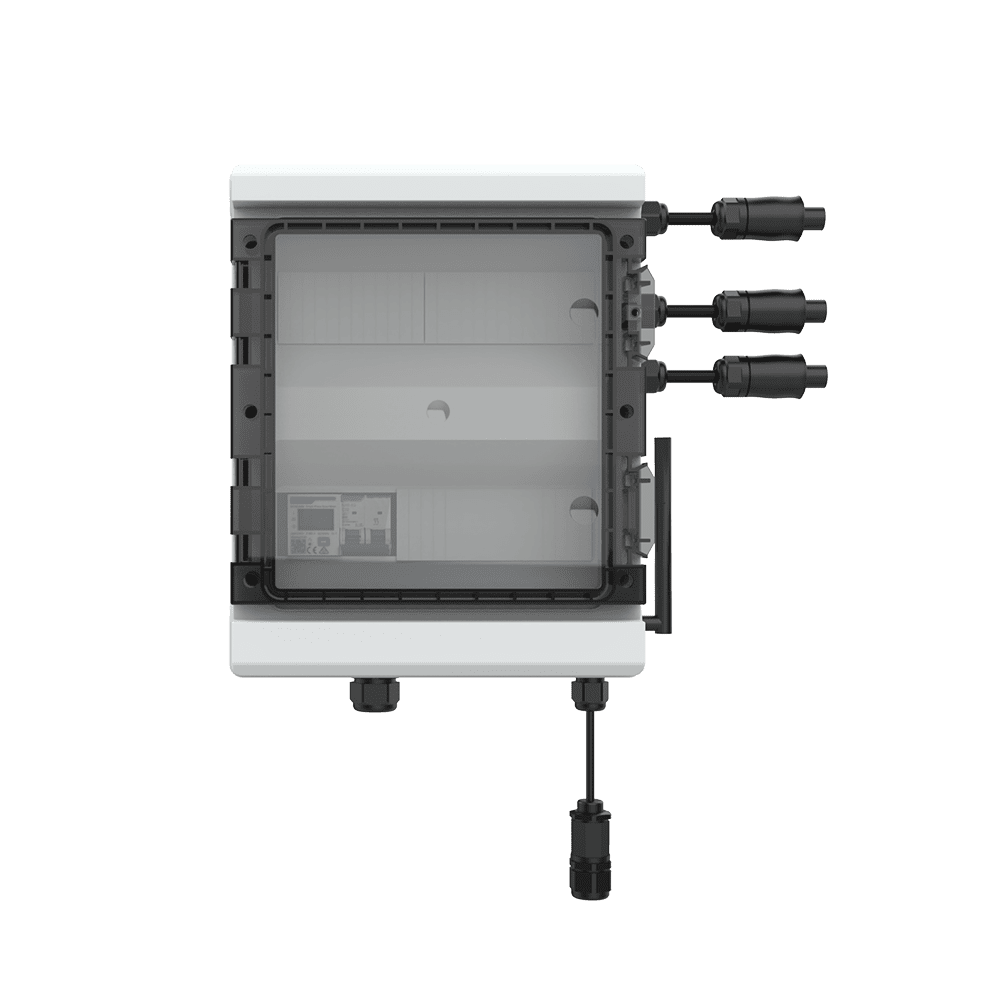

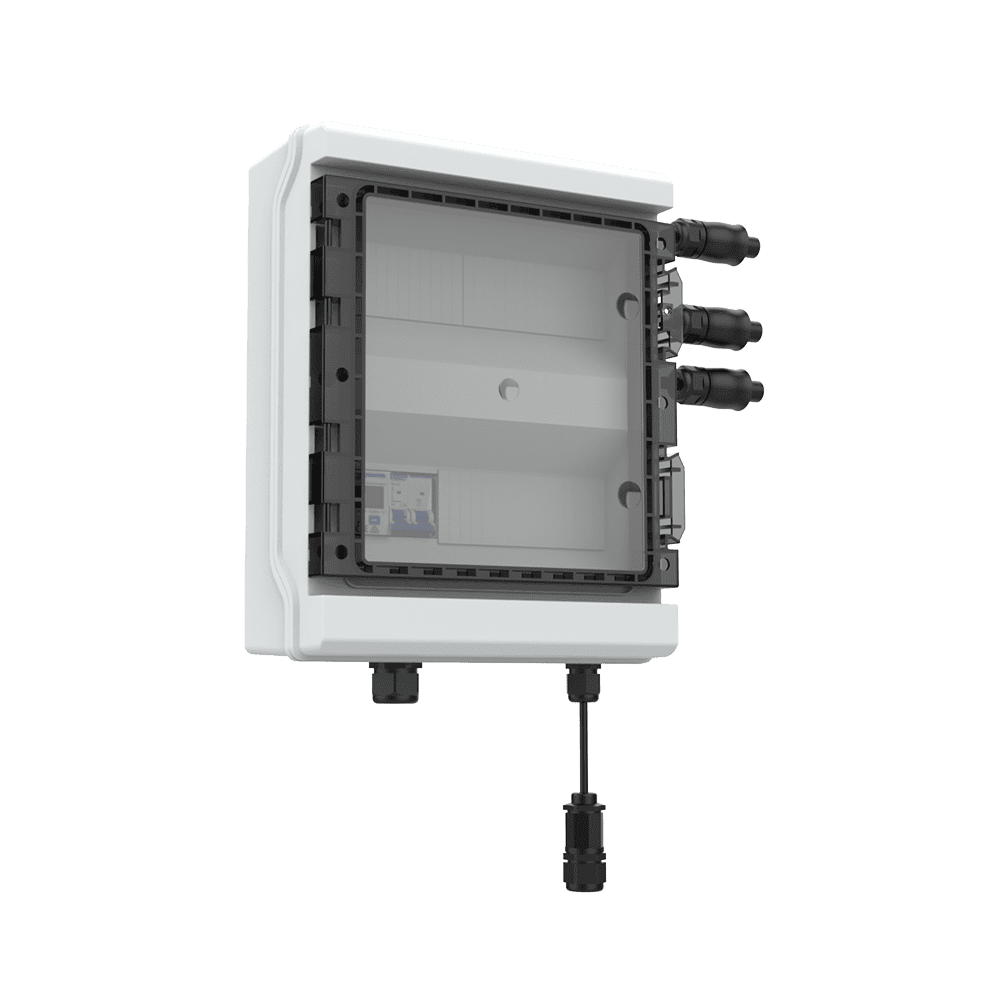

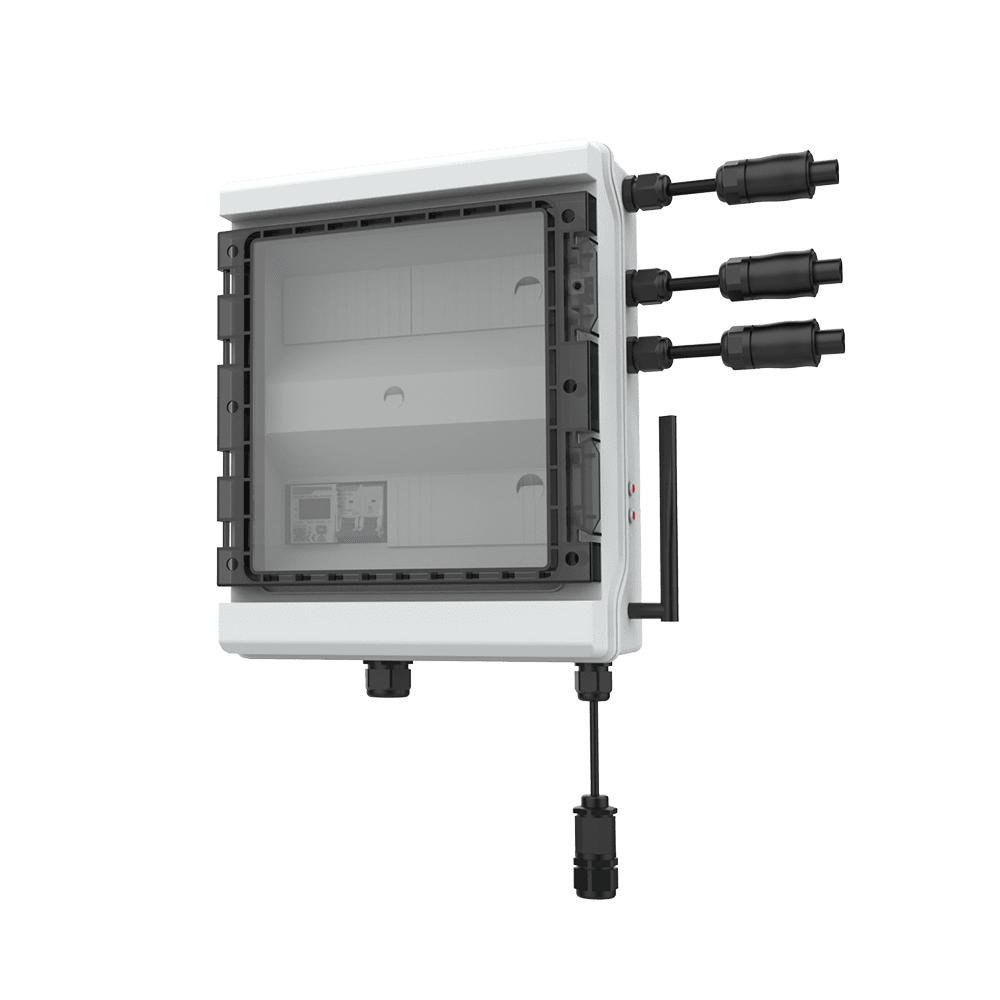

Energy Monitoring Unit BYG1000-24S

As a key accessory in PV power generation monitoring system, BYG1000-24S serves as the communication gateway between the microinverter and PV background management system.

PVB gateway is designed, manufactured and checked strictly following the relevant safety standards of various countries.

Similarly, the installation, trial operation, operation and maintenance of electronic equipment shall also comply with relevant safety specifications.

The Energy Monitoring Unit BYG1000-24S supports real-time detection of up to 24 single-in microinverters or 6 quad-in microinverters.

Highlights:

Application Mode Diagram of BYG1000-24S

what makes us different

Features of Energy Monitoring Unit

Remote Control

Real-time monitoring of each PV module and a series of remote operations at the same time

Data Safety

High anti-interference capability, no electromagnetic interference and data safety

Reliability

Transmission of digital signals by carrier wave along the existing power line ensures the stability

Product Specs

PLCC

Communication mode

PLCC (Power Line Carrier)

Carrier frequency

45Hz~62.7Hz

Communication mode

Ethernet communication

Interface type

RJ45 interface

Communication rate

10/100 Mbps

Communication mode

Wi-Fi

Carrier frequency band

2.412 GHz - 2.484 GHz

Communication rate

Up to 150 Mbps

Operating voltage

Single-phase AC 85 V~265 V, 50/60 Hz

Power consumption

≤5 W

Waterproof grade

IP65

Connectable sigle-channel MI

24 units

Max. Input Current

30A

Max. Output Current

30A

Operating temperature

-20°C ~ +65°C

Storage temperature

-20°C ~ +85°C

Operating humidity

5%~95%RH(no condensation)

Storage humidity

1%~95%RH(no condensation)
