Dual-In

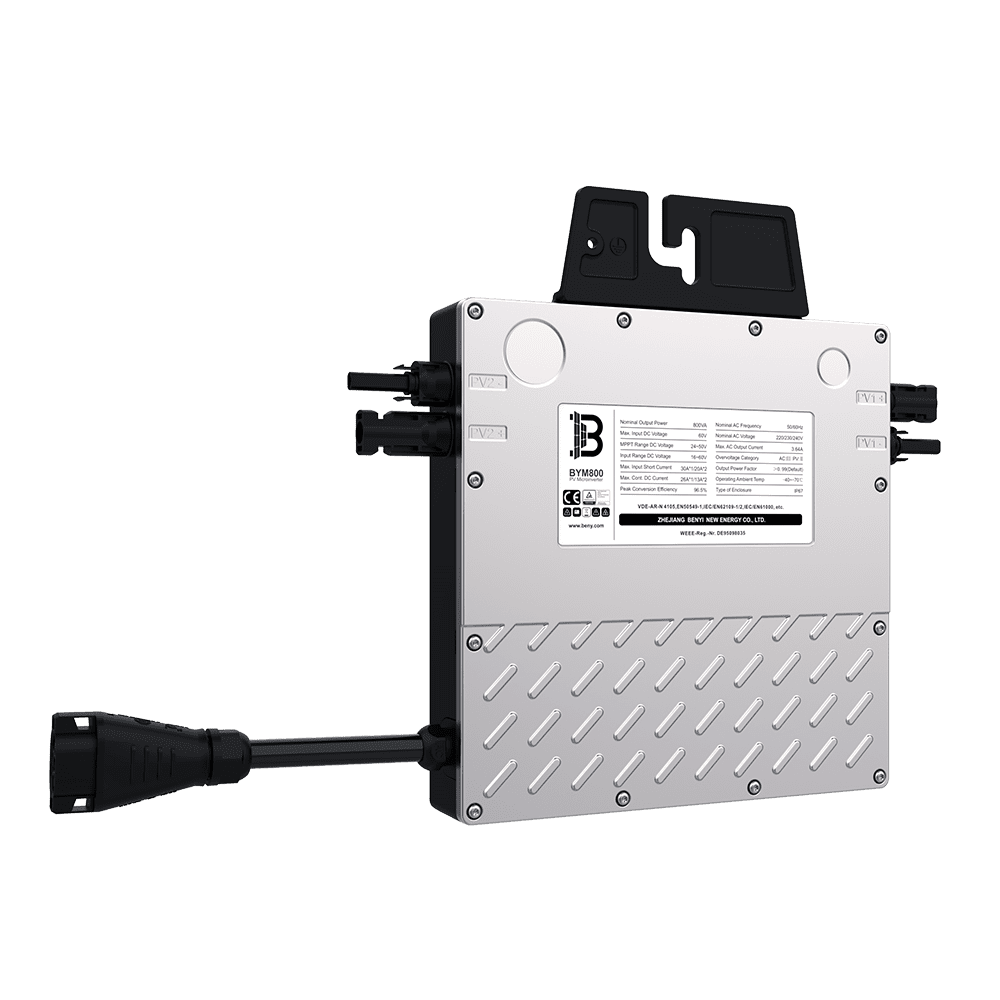

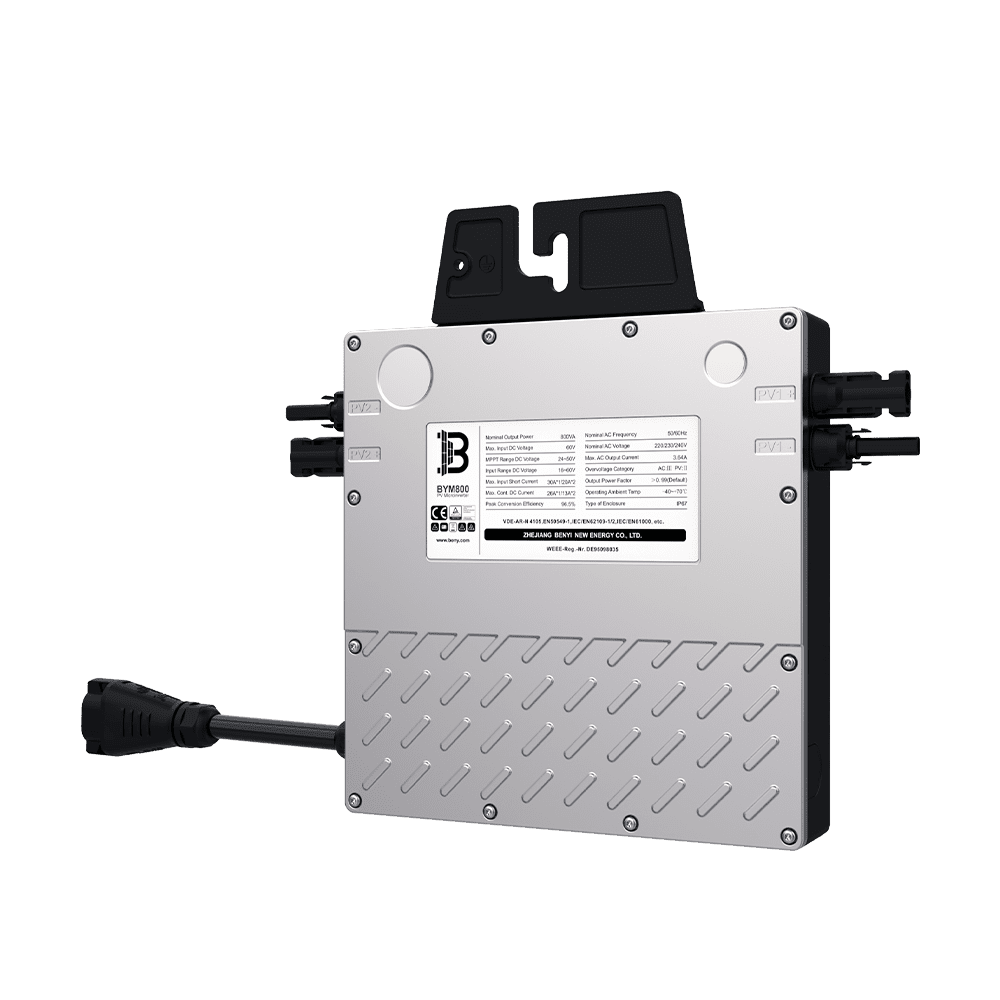

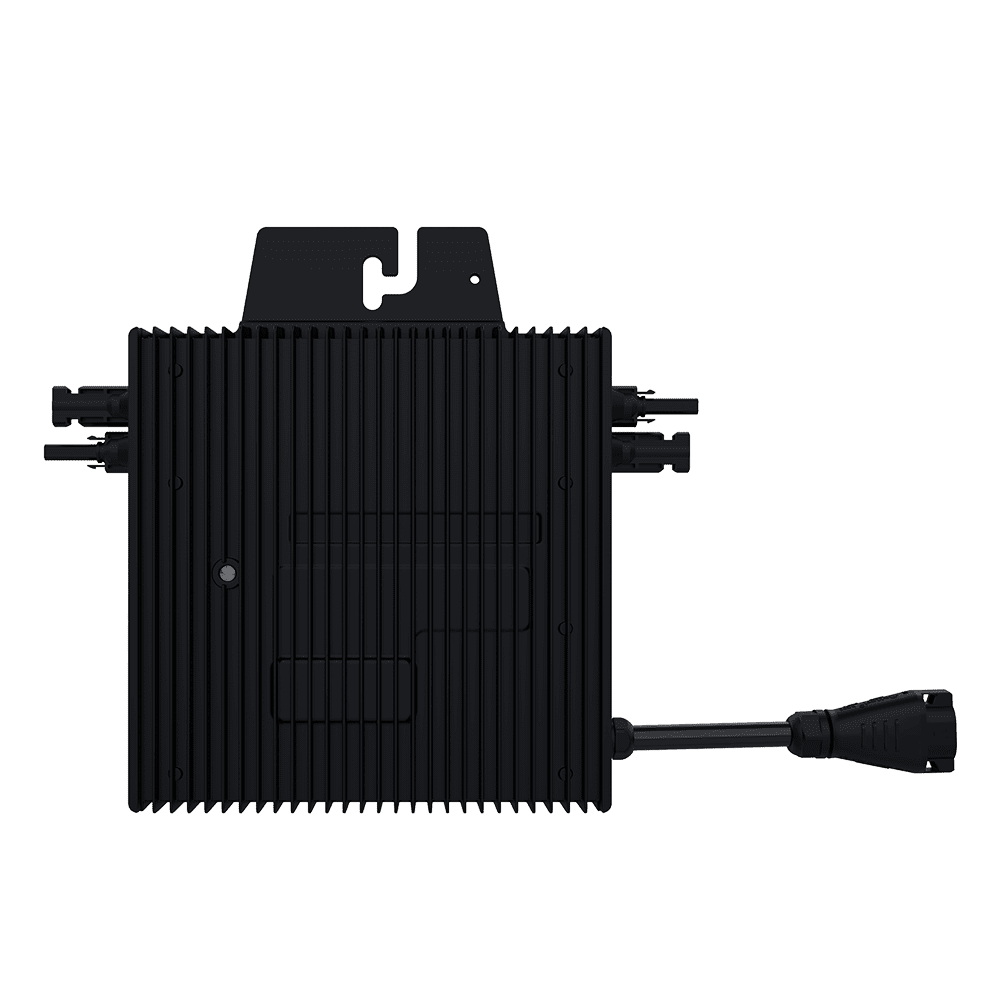

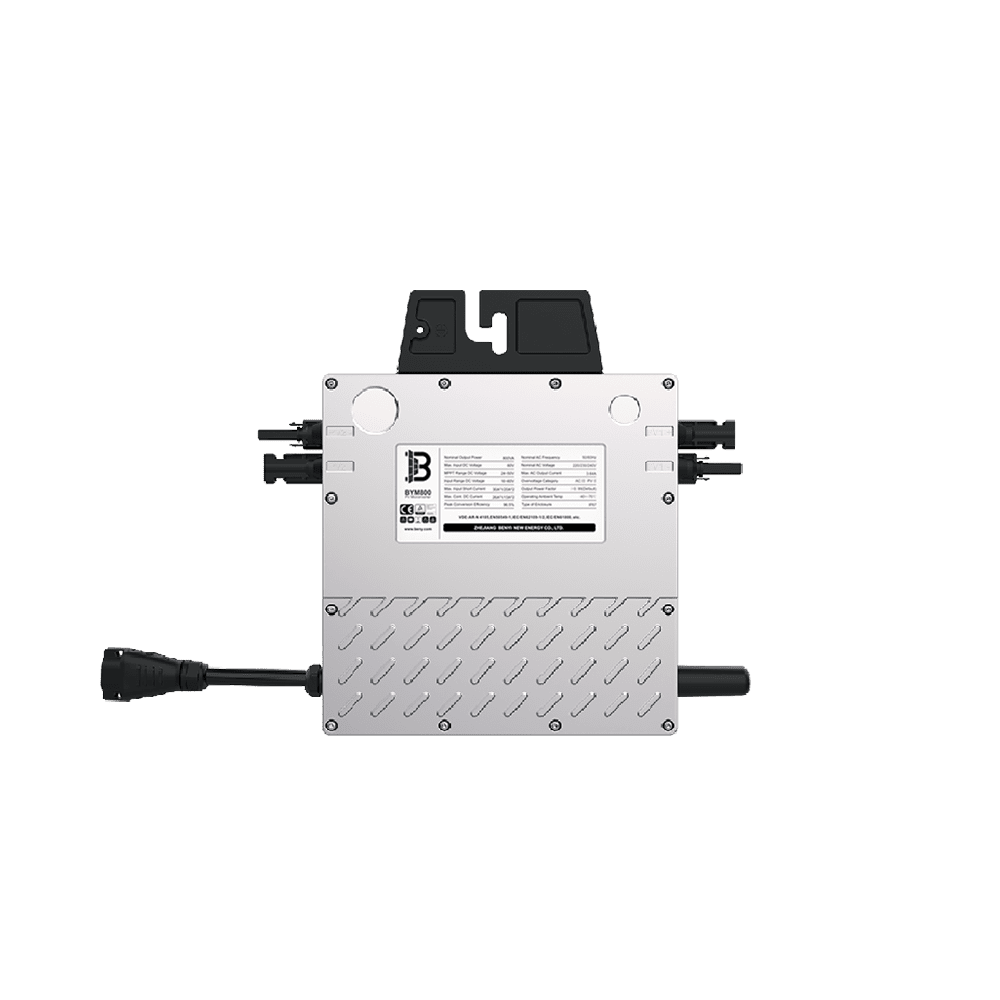

Microinverter 800

Highlights:
Technical certification :

With the maximum output power of 820VA , PVB BYM800 microinverter can connect to 1 panel or 2 panels and enable module-level maintenance and management of the PV station by monitoring power generation of each module.

Module-level data can be uploaded to the monitoring platform via PVB data transfer units through PLCC/Wi-Fi.

Product Specs

Input Data(DC)

Recommended lnput Power(Single)

(STC)600~700+Wp , 60~75 cells/120~150sub cells

Recommended lnput Power(Dual)

(STC)(350~600 Wp) * 2 , 72~75 cells/144~150 sub cells

(NMOT) Vmp≥32V and lmp≤15A

MPPT voltage range

24V-50V

Operating voltage range

16V-60V

Maximum DC input voltage

60V

Maximum short circuit input current

30A * 1 / 20A * 2

Maximum continuous input current

26A * 1 / 13A * 2

Rated Output Power

800VA

Maximum Output Power

820VA(Vac≥230,Vmp≥35)

Rated voltage/range

220V/230V/240V/176-265V

Rated frequency/range

50Hz/60Hz (46.5-62)Hz

Maximum continuous output current

3.64A

Maximum harmonic distortion

<3%

Power Factor

>0.99 (default)

Maximum connection number in one string

6 units(24A circuit breaker, 10AWG cable)

Peak efficiency

96.5%

MPPT efficiency

>99.8%

Night power consumption

<100mW

Communication method

PLCC/Wi-Fi

Safety protection class

Class I

Enclosure rating

IP67

Operating temperature

-40℃ to +70℃

Storage temperature

-40℃ to +85℃

Relative humidity

0-98%

Transformer design

High frequency transformer, Electrical isolated

Overvoltage class

OVC III (AC), OVC II (PV)

Dimension(mm)

218*215*40

Weight(kg)

2.69

Warranty

10/25 years optional

Safety Regulations

IEC/EN 61000-6, CISPR11+A1+A2, IEC/EN 62109-1/2,
EN 50549-1:2019 VDE-AR-N 4105:2018/DIN VDE
0124:2020, AS 4777.2 :2020, INMETRO, UTE C15- 712-1/DIN VDE 0126/VFR 2019, G98, CEI 0-21:2020,
NC RFG, NTS DAKKS

Remote Monitored

PVB’s monitoring device enables smart management of solar energy systems. It utilizes PLCC communication for real-time data access and module-level monitoring.
