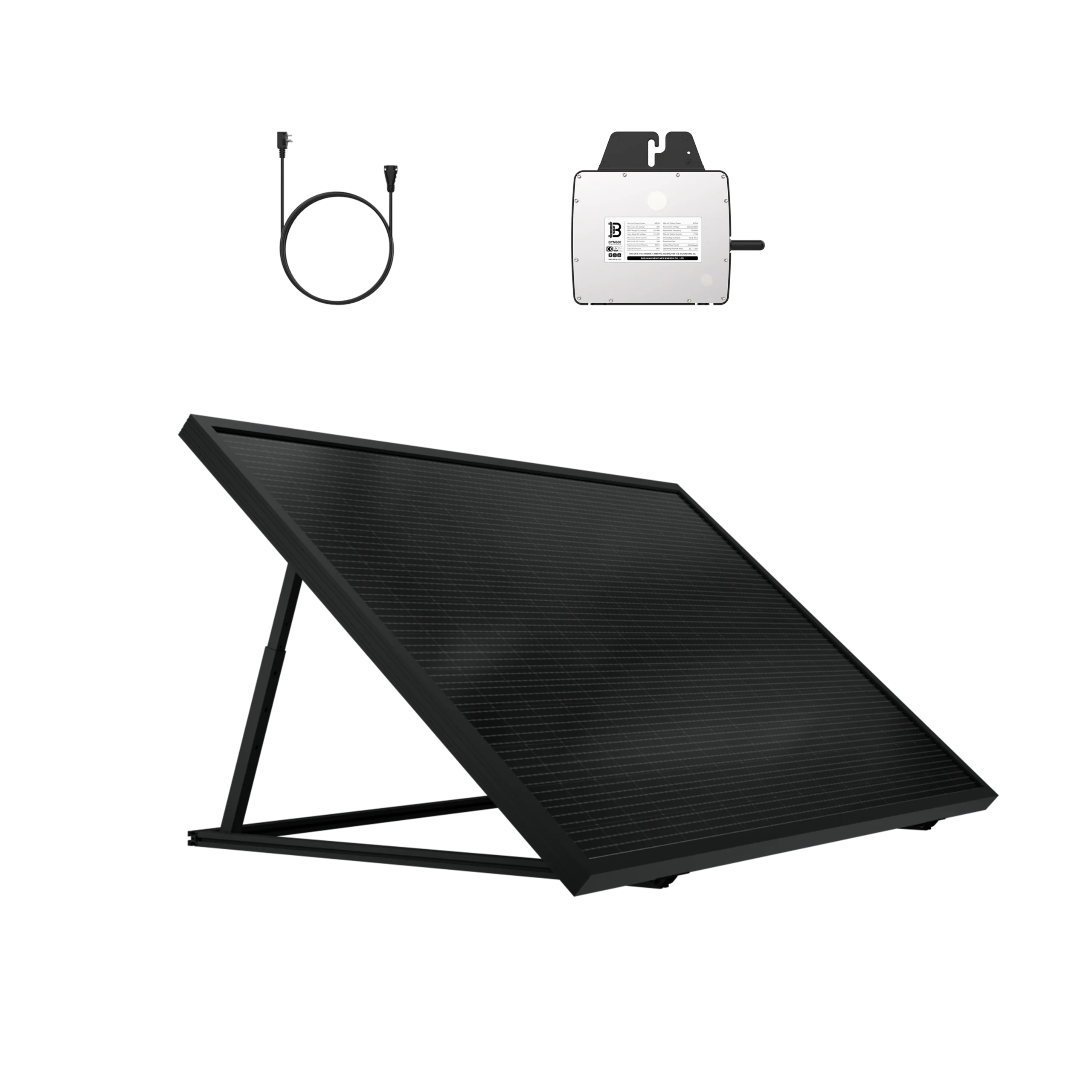

PVB Plug-and-Play Solar Kit for Garden comes with a 600W microinverter and one solar panel. With our user-friendly Easy Solar Kit, you can enjoy the freedom of effortless installation.
Module-level data can be uploaded to the monitoring platform via our data transfer units through Wi-Fi.
PVB microinverters for solar panels has an IP67 waterproof rating for lasting performance in any climate.
Low DC voltage reduces danger and guarantees a secure installation. Safety is always our first priority.
The amount you can save on your electricity bill with PVB Easy Solar Kit depends on your total consumption. The higher your energy consumption, the more likely you are to fully utilize your equipment’s output, maximizing your financial return.
Furthermore, the amount you pay your electricity provider per kWh, including any additional costs and taxes, should be considered. In short, you can save up to 50% on your electricity bill.
Components of PVB microinverter are selected from world-class brands.
And our solar panel has a lifespan of up to 30 years.
PVB adopts plug-and-play design for DIY solar system easily.
It contributes to a quick, simple, and economical installation process.
Components of PVB microinverter are selected from world-class brands.
And our solar panel has a lifespan of up to 30 years.
PVB adopts plug and play design for DIY solar system easily.
It contributes to a quick, simple, and economical installation process.
PVB adopts plug and play design for DIY solar system easily.
It contributes to a quick, simple, and economical installation process.
| MPPT voltage range | 24V-50V |
| Operating voltage range | 16V-60V |
| Max. short circuit current | 24A |
| Max. input current | 20A |
| Rated Output Power | 600VA |
| Maximum Output Power | 600VA (Vac≥220,Vmp≥33) |
| Rated voltage/range | 230V(176V~265V) |
| Rated Frequency/range | 50Hz/60Hz (46.5-62)Hz |
| Maximum continuous output current | 2.73A |
| Maximum Harmonic Distortion | <4% |
| Power Factor | >0.99 (default) |
| Peak efficiency | 96.5% |
| MPPT efficiency | >99.8% |
| Night power consumption | <100mW |
| Communication method | PLCC/Bluetooth+Wi-Fi (Optional) |
| Safety protection class | Class I |
| Enclosure rating | IP67 |
| Operating temperature | -40℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
| Relative humidity | 0-98% |
| Transformer design | High frequency transformer, Electrical isolated |
| Overvoltage class | OVC III (AC), OVC II (PV) |
| Warranty period | 12 / 25years Optional |
| Dimensions(L*W*H mm) | 210*230*34 |
| Weight(kg) | 2.39 |
| Maximum Power (Pmax) | 430 |
| Voc(V) | 40.1 |
| Isc(A) | 13.38 |
| Vmpp(V) | 33.8 |
| Impp(A) | 12.76 |
| Efficiency | 21.99% |
| Cable Length | 5m |
| Copper Diameter | 1.5mm2 |
| Cable Length | Betteri (Female) |
| Copper Diameter | EU standard |
Real-time data analysis, visualizing power generation
Efficient operation and hierarchical management
Remote login and multiple devices supported
Quickly view solutions for product faults

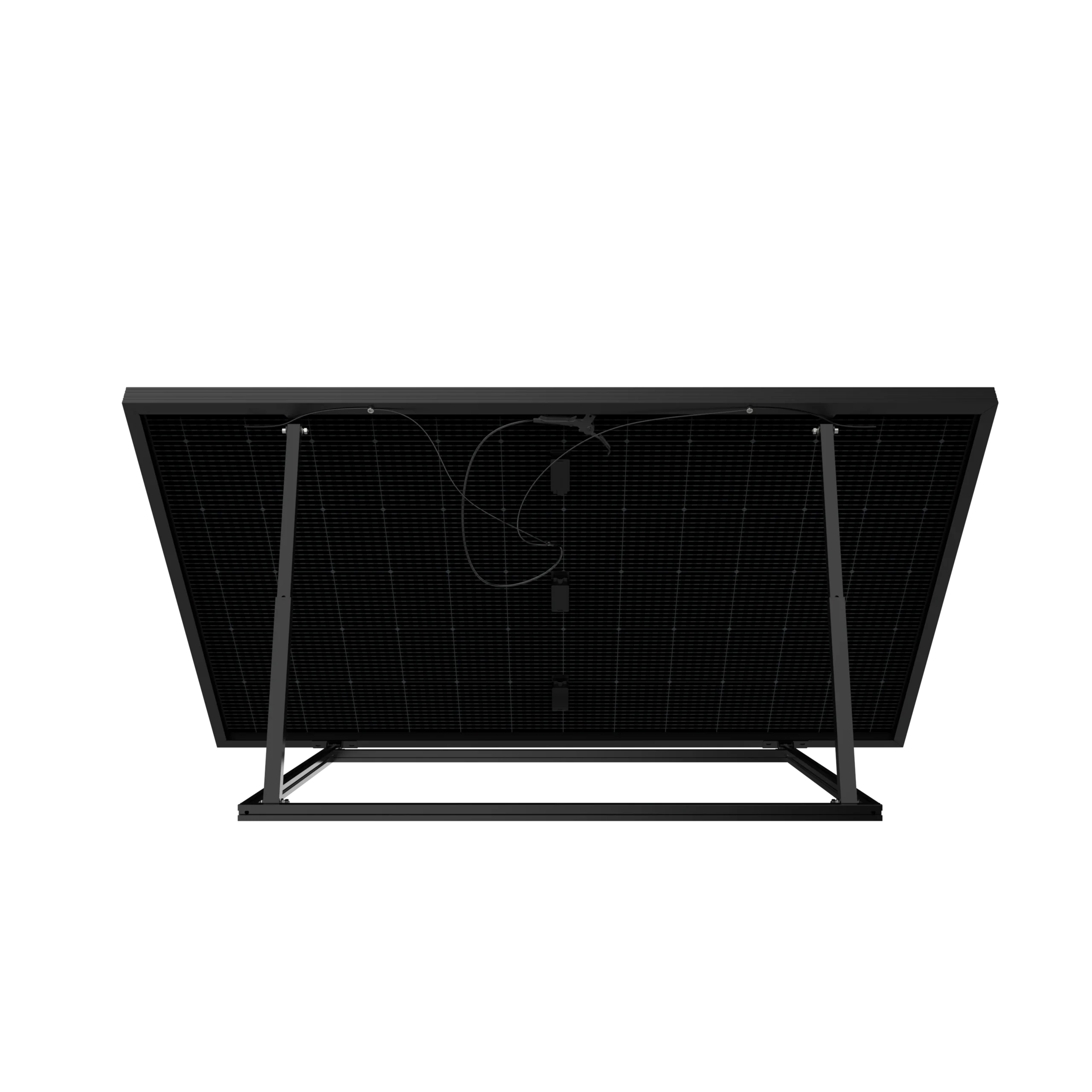

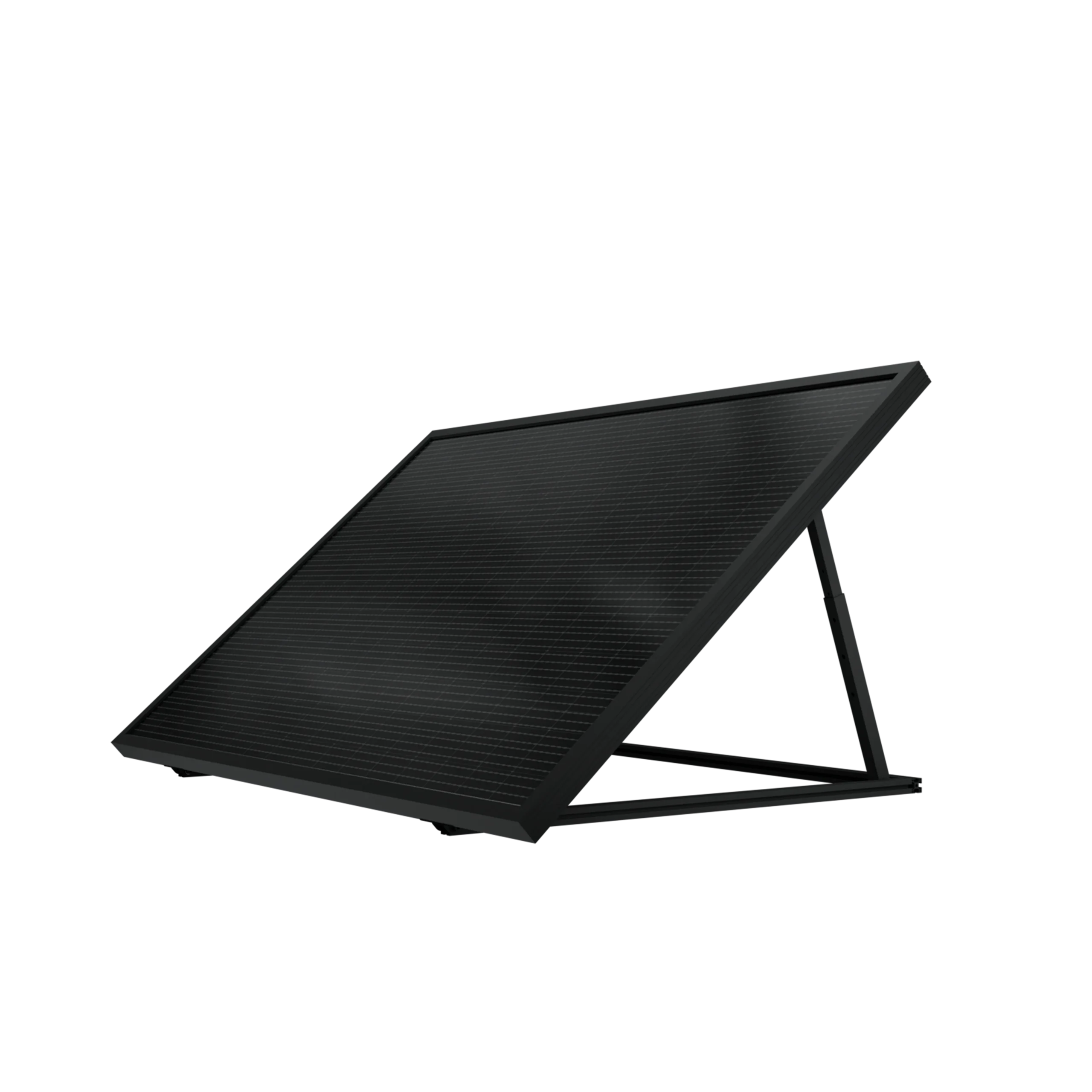

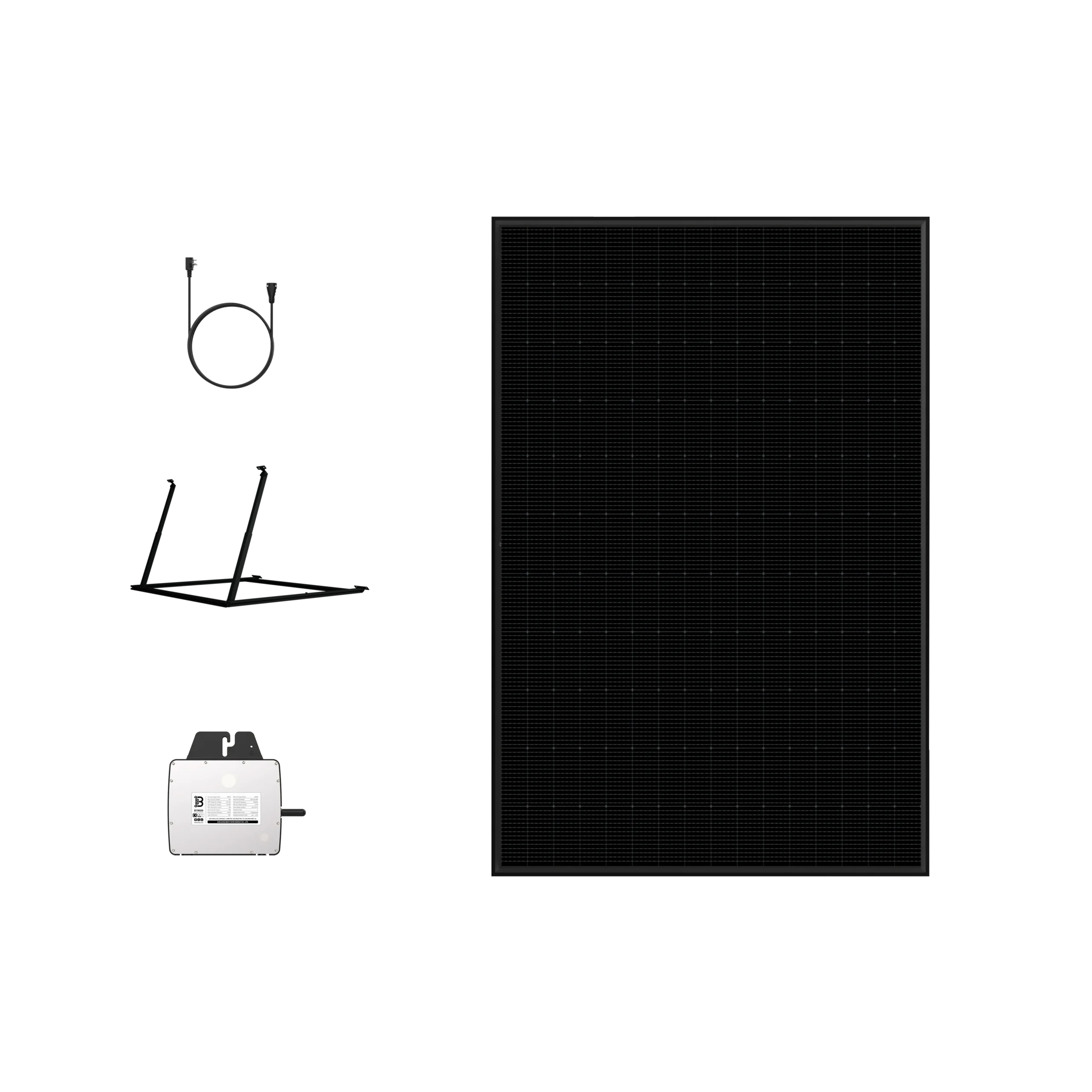

430W Solar Panel
600W Microinverter
Bracket
Electric Cable
Our Easy Solar Kits come with monitoring APP that allow you to track energy production and system performance.
Depending on your location, there may be government incentives, tax credits, or rebates available for installing solar systems. It’s advisable to research local incentives or consult us to explore potential savings opportunities.
While garden solar kits are most effective in areas with ample sunlight, they can still generate electricity in areas with partial sunlight. However, the overall energy production may be lower.
Ensure proper grounding of components, follow our instructions carefully. If you encounter any issues, feel free to contact PVB anytime – one of the reliable solar kit suppliers.
