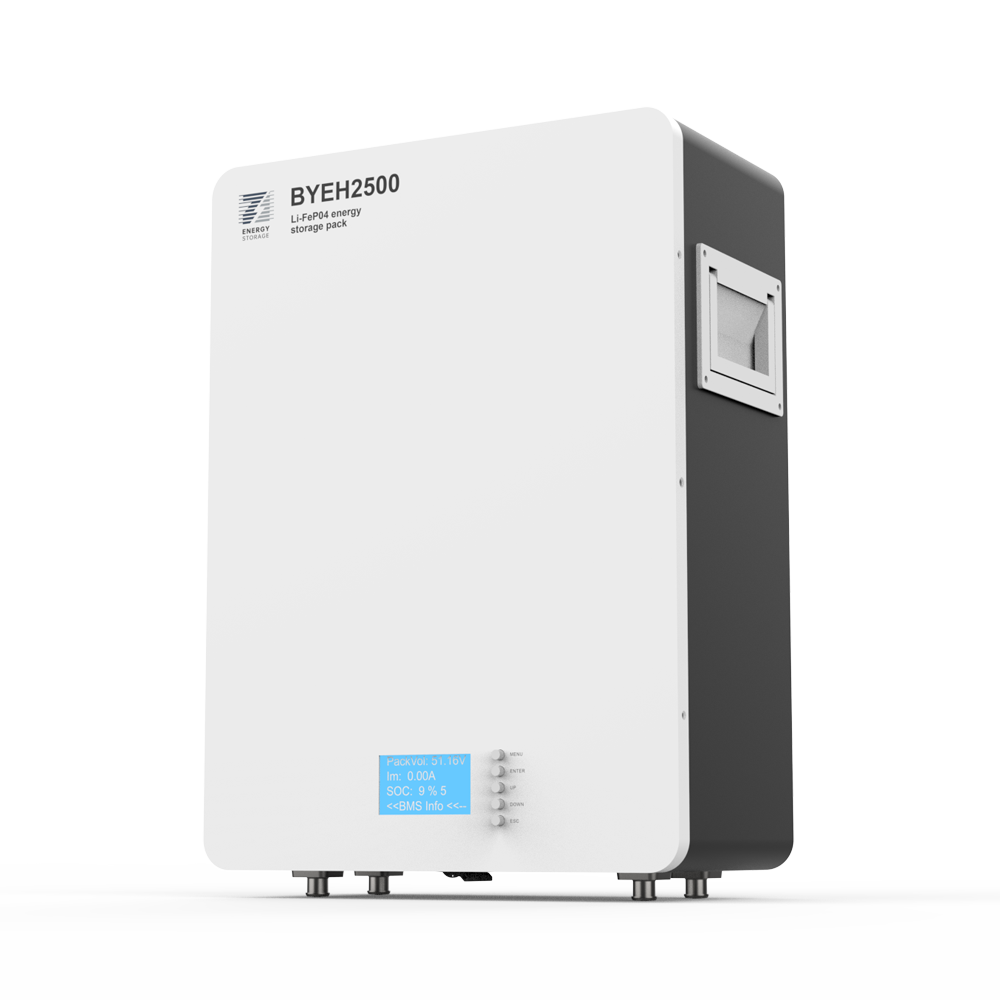

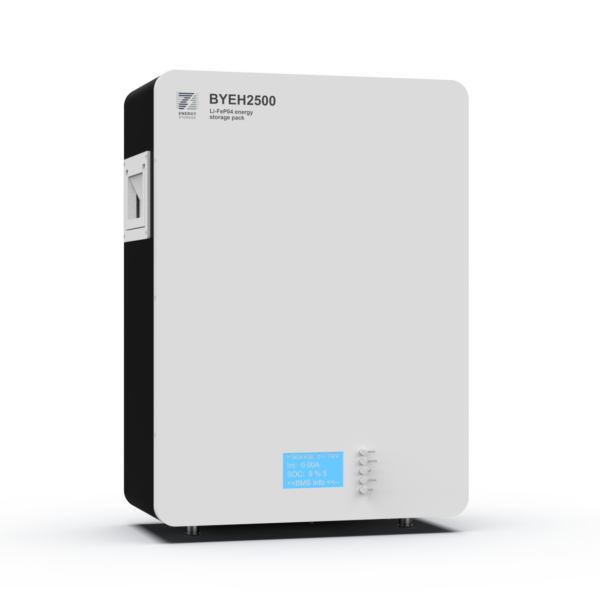

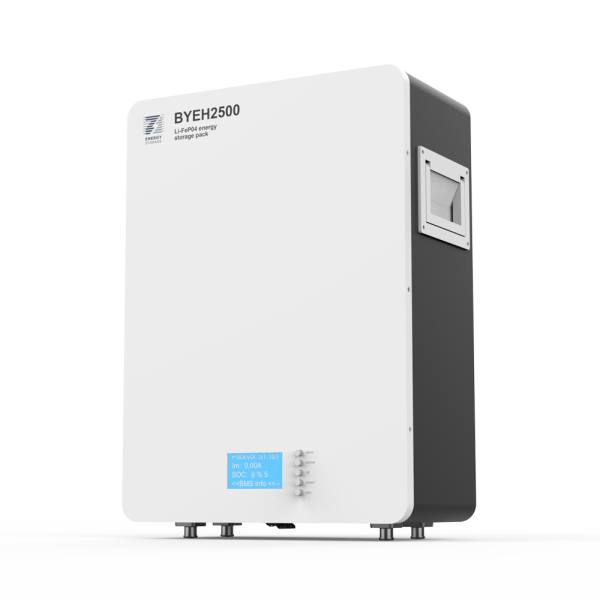

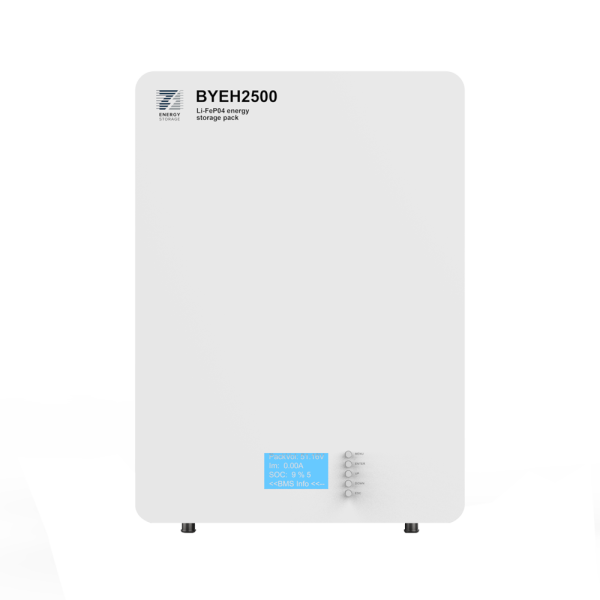

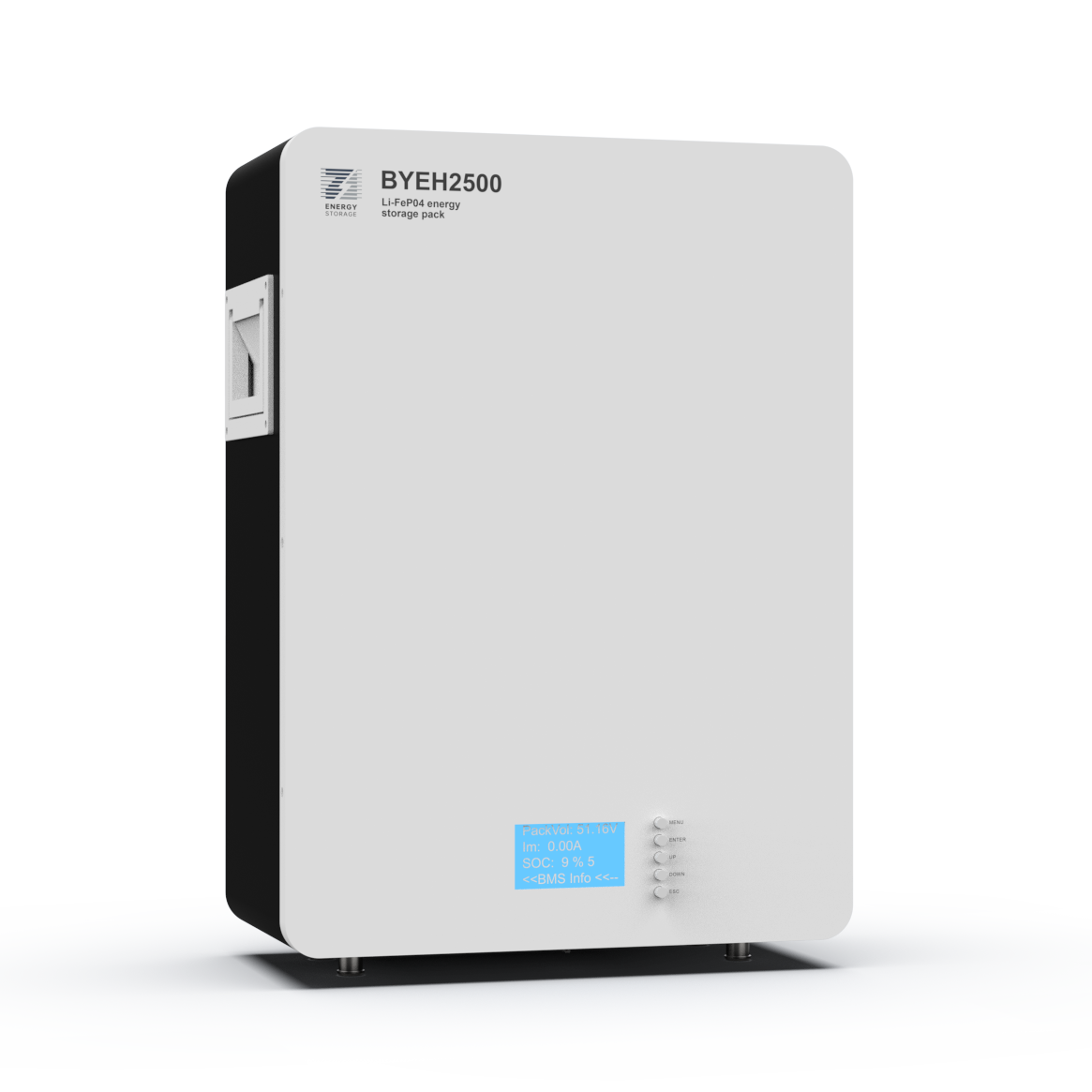

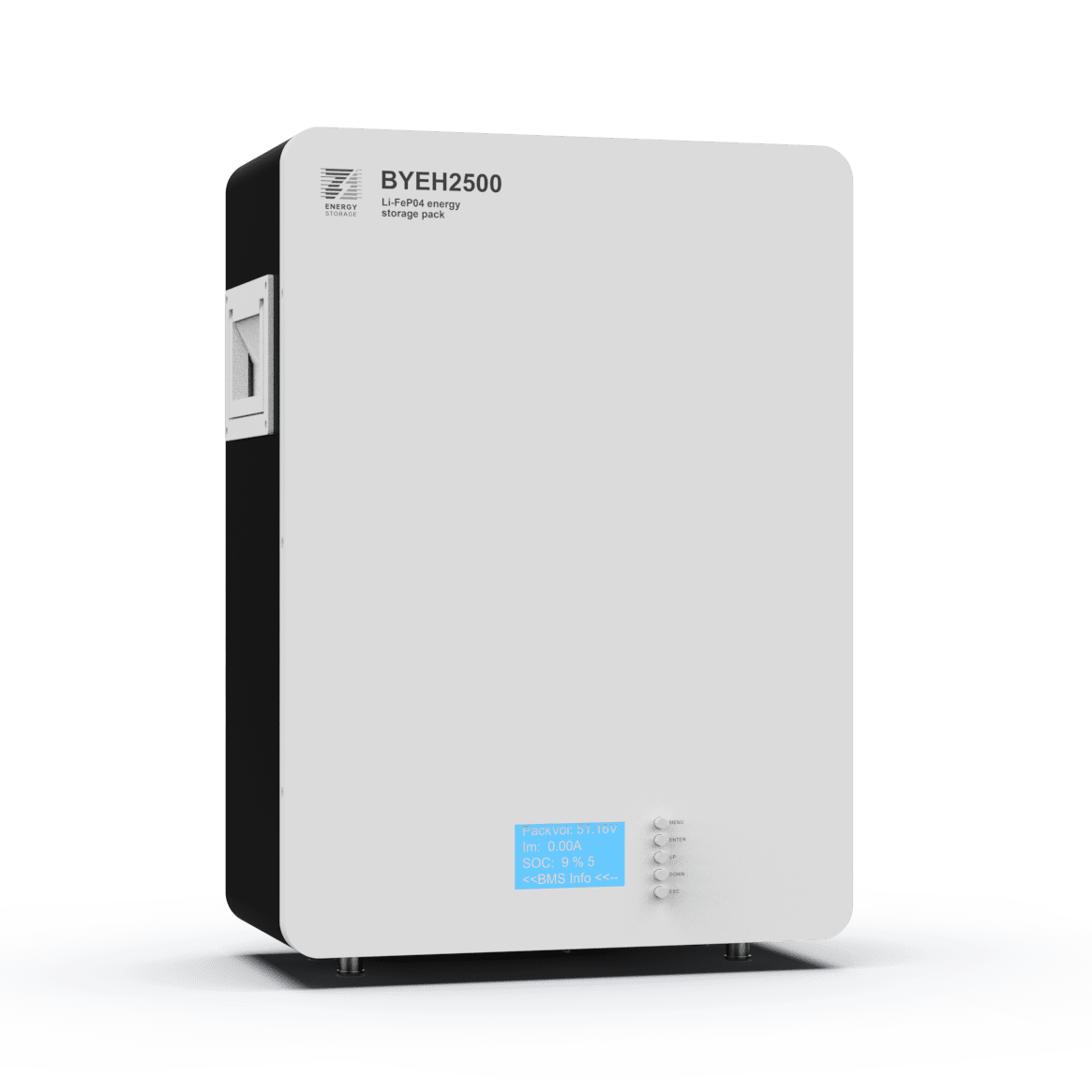

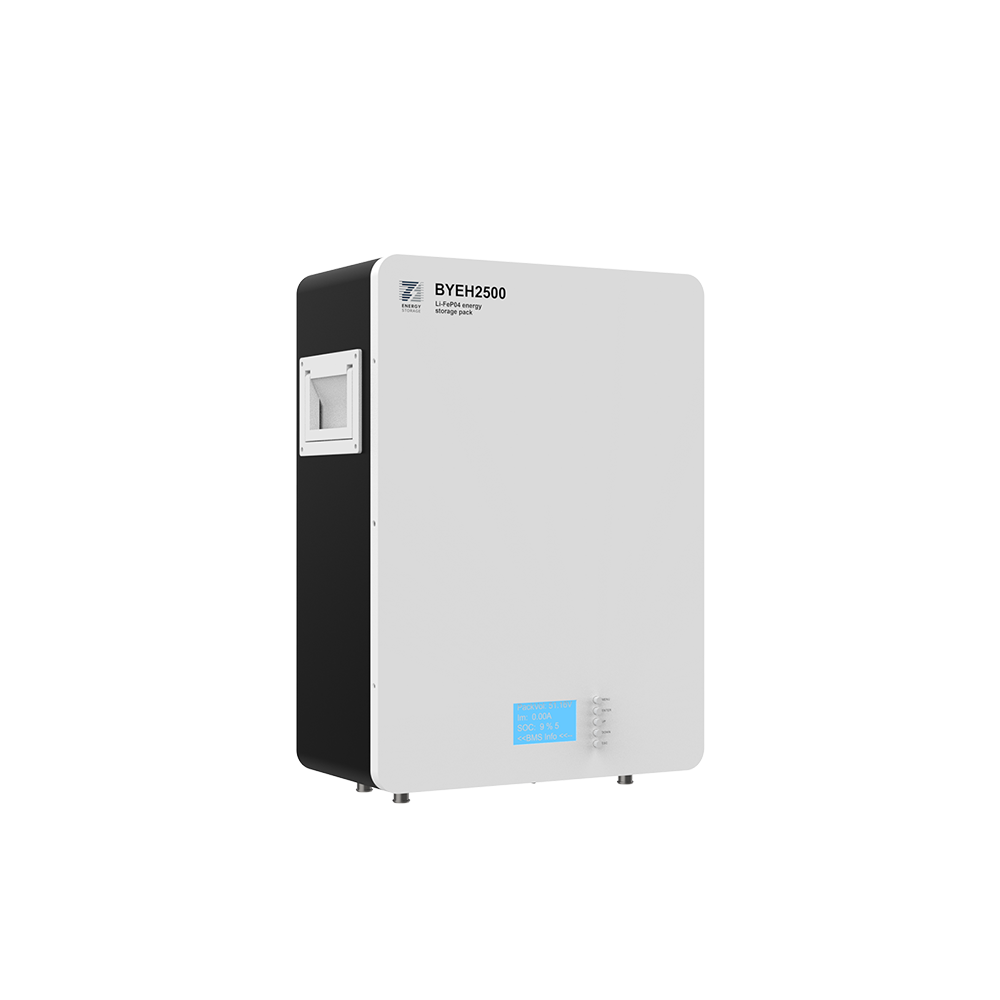

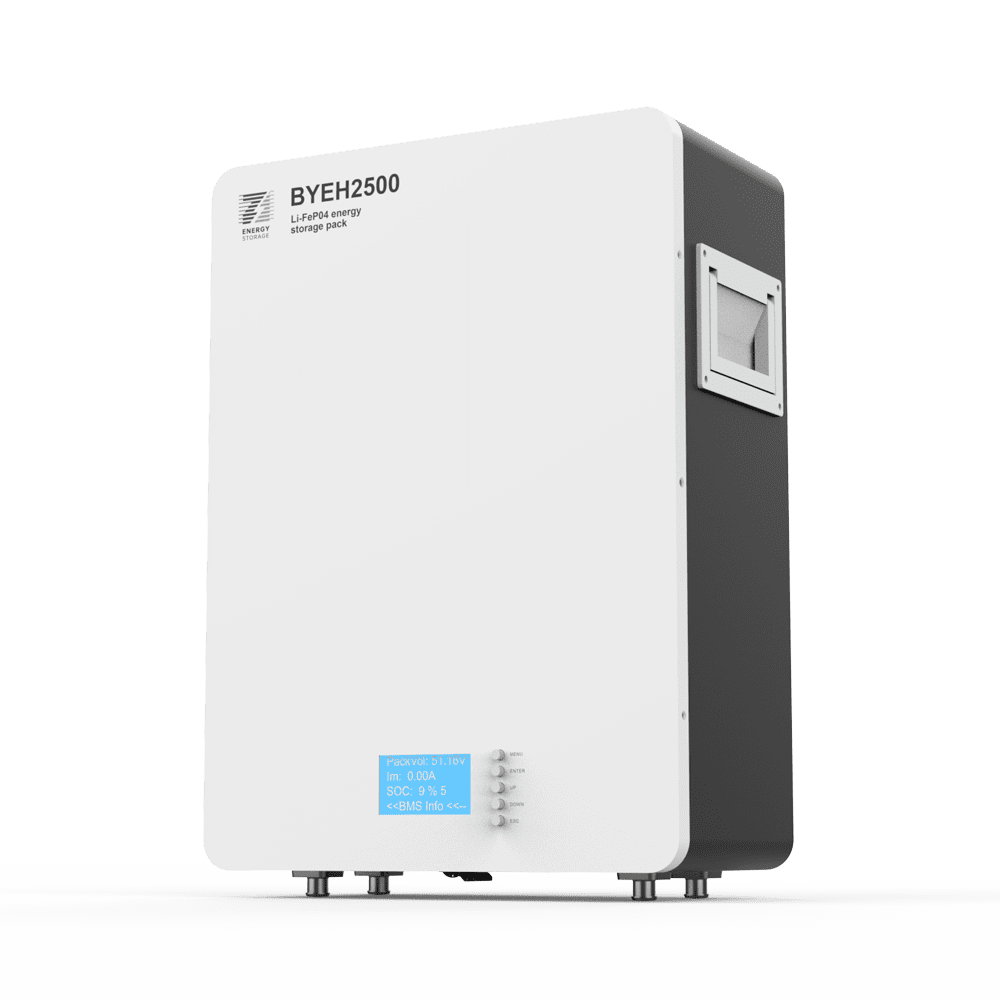

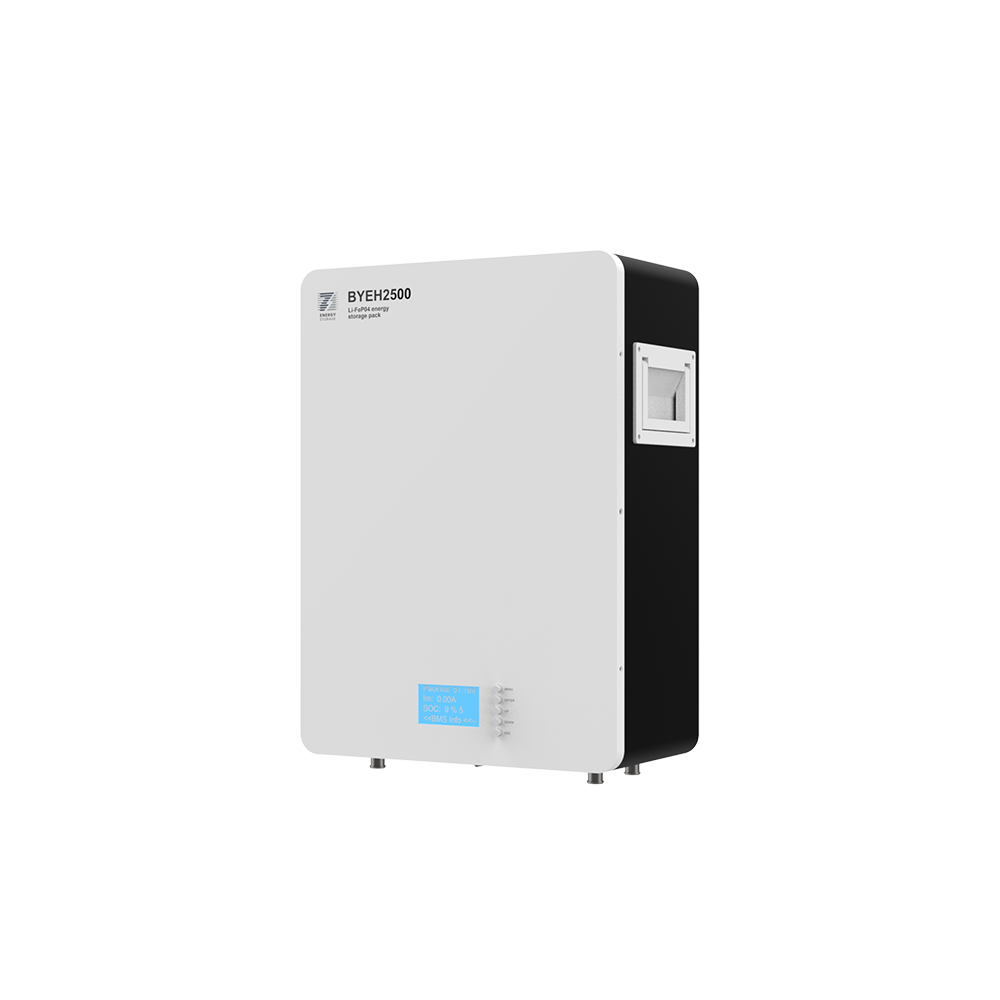

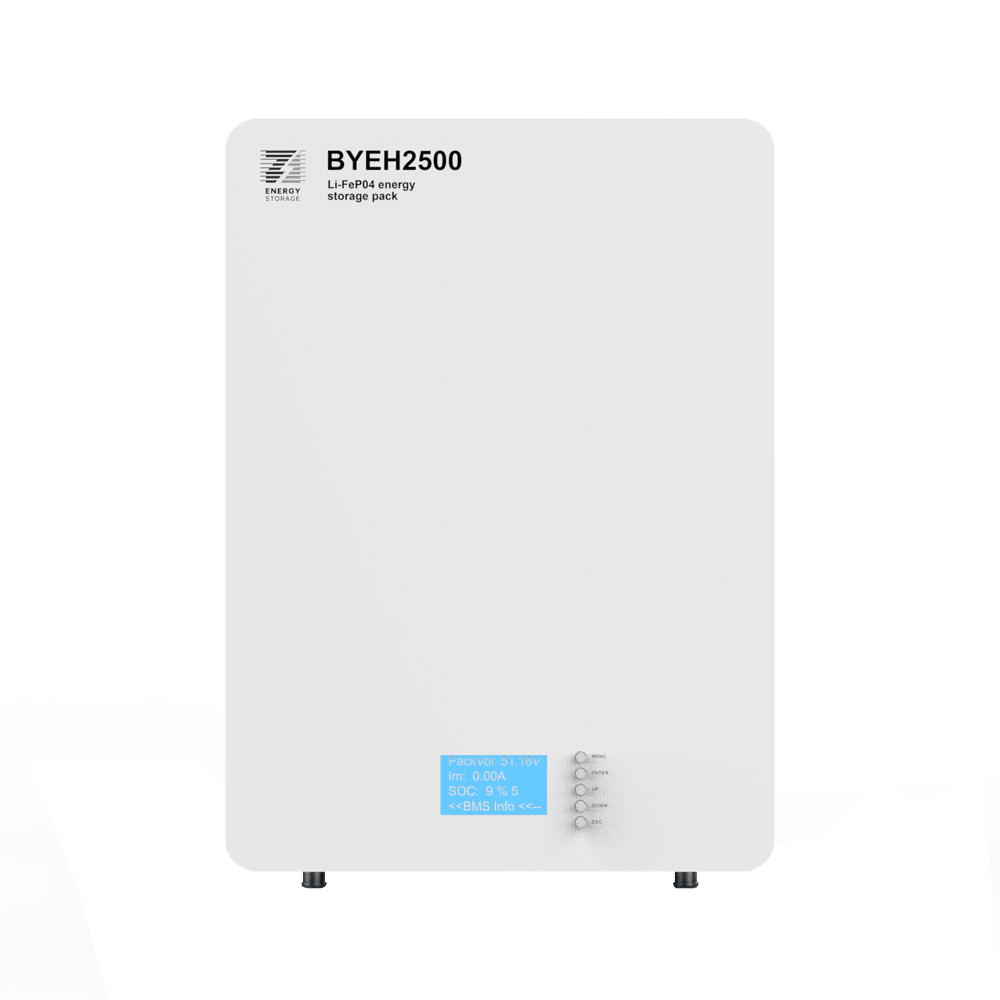

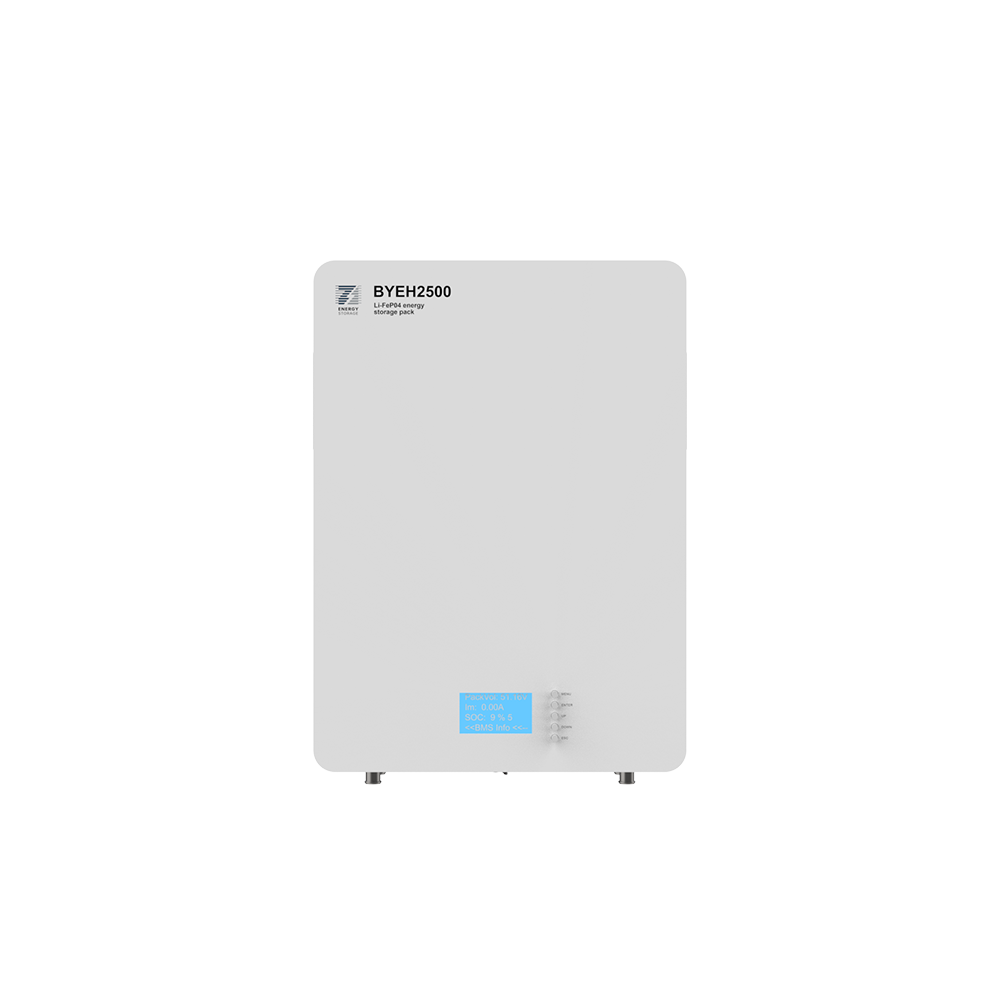

PVB independently developed the home LFP energy storage pack.
Our residential energy storage system is compatible with off-grid inverters and hybrid inverters, which are widely utilized in the energy storage market.
The wall-mounted storage system operates efficiently within a temperature range of -20°C to 55°C.
A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6000 cycles at 80% DOD.
The wall-mounted storage system operates efficiently within a temperature range of -20°C to 55°C.
A-grade LiFePO4 cells offer enhanced safety and longer battery cycle life, capable of up to 6000 cycles at 80% DOD.
| Nominal energy /kWh | Nominal value |
| Nominal voltage /V | Nominal value |
| Nominal capacity/Ah | Nominal value |
| Internal impedance | Fresh cell |
| Size | L*W*H |
| Weight /kg | / |
| Operating voltage /V | / |
| Standard charging and discharging current | / |
| Maximum charging and discharging current | / |
| Charging temperature /℃ | / |
| Discharging temperature /℃ | / |
| Storage temperature /℃ | / |
| Recommended DOD | / |
| Communication function | / |
| Protection class | / |
| Shipping SOC | / |
| Nominal energy /kWh | 2.66 |
| Nominal voltage /V | 51.2 |
| Nominal capacity/Ah | 52 |
| Internal impedance | ≤20 mΩ |
| Size | 470 mm*340 mm*180 mm |
| Weight /kg | 29 |
| Operating voltage /V | 44.8 V ~ 57.6 V |
| Standard charging and discharging current | 0.5C/0.5C |
| Maximum charging and discharging current | 1C/1C |
| Charging temperature /℃ | 0℃~ 55℃ |
| Discharging temperature /℃ | -20°C ~ 55°C |
| Storage temperature /℃ | -10°C ~45°C （best 0 °C ~35 °C) |
| Recommended DOD | ≤98% |
| Communication function | RS232/RS485/CAN |
| Protection class | IP54 |
| Shipping SOC | 30%~50% |
| Nominal energy /kWh | 5.22 |
| Nominal voltage /V | 51.2 |
| Nominal capacity/Ah | 102 |
| Internal impedance | ≤20 mΩ |
| Size | 640 mm*410 mm*180 mm |
| Weight /kg | 48 |
| Operating voltage /V | 44.8 V ~ 57.6 V |
| Standard charging and discharging current | 0.5C/0.5C |
| Maximum charging and discharging current | 1C/1C |
| Charging temperature /℃ | 0℃~ 55℃ |
| Discharging temperature /℃ | -20°C ~ 55°C |
| Storage temperature /℃ | -10°C ~45°C （best 0 °C ~35 °C) |
| Recommended DOD | ≤98% |
| Communication function | RS232/RS485/CAN |
| Protection class | IP54 |
| Shipping SOC | 30%~50% |
PVB residential energy storage systems are tailored to meet your home’s unique energy needs.
