Air Cooling vs. Liquid Cooling: The Ultimate Energy Storage System Showdown

Energy Storage Systems (ESS) are essential for a variety of applications and require efficient cooling to function optimally. This article sets out to compare air cooling and liquid cooling-the two primary methods used in ESS. Air cooling offers simplicity and cost-effectiveness by using airflow to dissipate heat, whereas liquid cooling provides more precise temperature control and efficiency through fluid-based heat transfer. We’ll delve into the specifics of each system’s operation, examine their pros and cons, assess their performance in different scenarios, and consider their environmental impacts. Real-world examples will illustrate their effectiveness, and emerging trends in technology will be discussed to understand future developments in ESS cooling. By the end of this comparison, the aim is to guide you toward making an informed decision on the best cooling solution for your energy storage requirements.

Understanding Energy Storage Systems

An Energy Storage System (ESS) acts like a giant battery, designed to store energy and release it when needed. It’s the backbone of ensuring that power is available at the right time and the right place-whether for a home during a power outage or for balancing supply and demand on the electric grid.

There are various types of ESS, each with unique characteristics:

  • Battery Storage: This is the most commonly thought-of type when we mention ESS. These systems store electricity in chemical form within batteries and are widely used due to their scalability and declining costs.
  • Thermal Storage: This method stores energy as heat. Think of it as banking hot water or ice for later use-it can be used to heat homes or even power industrial processes.
  • Flywheel Storage: Flywheels store energy kinetically-with motion. A rotating mass spins faster as it stores energy and slows down when releasing it, which is great for quick-response applications.

Cooling plays a vital role across all these systems. Just like any electronic device, ESS generates heat, and too much heat can reduce efficiency and lifespan. That’s why cooling technologies are not just add-ons; they’re central components that ensure these systems work effectively and reliably over time.

commercial and industrial energy storage solution

The Basics of Air Cooling in ESS

Air cooling in Energy Storage Systems (ESS) works by using the surrounding air to remove excess heat. It’s a method you’re probably familiar with – similar to how a fan cools you off on a warm day. Here’s a closer look at how it functions within an ESS:

The mechanism is quite straightforward. Fans push cool air across components to absorb heat, and then this warmed air is ushered out of the system, keeping the ESS at a safe operating temperature. It’s a continuous process that works to prevent overheating.

Key components in an air-cooled ESS typically include:

  • Fans: These create airflow around the battery cells to draw away heat.
  • Heat Exchangers: They work like a radiator in a car, transferring heat from the ESS to the passing air.

The advantages of air cooling are its simplicity and cost-effectiveness. This method is easy to understand, install, and maintain, which keeps initial and ongoing costs down. Plus, for many applications, the natural flow of air provides adequate cooling without the need for additional systems.

There are limitations, though. Air isn’t as dense as liquid coolants, so it can’t absorb as much heat. This means air cooling might not cut it for high-power ESS or in environments where the temperature is already high. There’s also the matter of efficiency; fans can use up a fair amount of energy and might not distribute cooling evenly, leading to hotspots that can impact performance and the longevity of the ESS.

The Basics of Liquid Cooling in ESS

Liquid cooling in Energy Storage Systems (ESS) takes a different approach than air cooling by using a fluid to manage the system’s temperature. It is akin to the cooling system in your car that keeps the engine at the right temperature.

Here’s how it operates:

The mechanism starts with a pump that circulates coolant through a closed loop. The liquid absorbs heat from the ESS components as it passes by them, carrying this heat away to a radiator where it’s dissipated into the atmosphere. Then, the cooled liquid cycles back to repeat the process.

Essential parts of a liquid-cooled ESS include:

  • Pumps: These are vital for moving the coolant through the system.
  • Coolant: A specialized liquid designed to carry heat efficiently.
  • Radiators: They release the absorbed heat from the coolant into the air.

The benefits of liquid cooling are particularly noteworthy when it comes to managing high heat loads. Liquids can absorb and transport much more heat than air due to their higher density and specific heat capacity. This makes liquid cooling a go-to for densely packed ESS, where precise temperature control is crucial.

However, such efficiency comes with drawbacks. Complexity is one, as the system includes more components, like pumps and plumbing, which could potentially fail. Moreover, installation and maintenance costs tend to be higher compared to air cooling systems. Regular checks are needed to prevent leaks and ensure the coolant maintains its efficacy. Despite these challenges, the superior cooling performance of liquids often justifies the additional complexity and expense, especially in demanding applications.

Comparative Analysis: Air Cooling vs. Liquid Cooling Energy Storage System

When it’s time to choose between air and liquid cooling for an Energy Storage System (ESS), a side-by-side comparison can shed light on their distinct features. Each method has its strengths and weaknesses in terms of efficiency, scalability, costs, suitability for different ESS types, and environmental impact.

Efficiency

  • Air Cooling: This process is less efficient at transferring heat away from the ESS because air has lower thermal conductivity compared to liquids. It might not be as effective in environments that are already warm or for ESS with high energy densities that generate a lot of heat.
  • Liquid Cooling: Liquid cooling stands out in efficiency. Due to liquids’ superior capacity to absorb and transfer heat, this system can handle higher thermal loads more effectively, making it suitable for intense operating conditions.

Scalability

  • Air Cooling: While air cooling can work well for smaller systems, scaling up means adding more fans or larger ones, which may become impractical or noisy in bigger ESS installations.
  • Liquid Cooling: Scaling up a liquid cooling system can be more straightforward. Increasing the flow rate of the liquid or enlarging components like radiators can enhance the system’s ability to manage heat without requiring significantly more space.

Costs

  • Air Cooling: Air cooling systems, with their less complex design, are typically more cost-effective to install and maintain, making them particularly suitable for regions where temperature conditions are not extreme. In environments that don’t demand severe thermal management, the reduced number of moving parts in air cooling systems leads to lower installation and maintenance costs. This simplicity also means less frequent need for repairs or part replacements, translating into economical long-term operation.
  • Liquid Cooling: For areas experiencing extremely cold or harsh temperatures, liquid cooling is often recommended despite its higher initial setup and ongoing operational costs. The sophistication of liquid cooling systems-featuring components like pumps and specially designed coolants-enables consistent and efficient thermal regulation, even in frigid conditions. The investment in liquid cooling can be justified through its ability to prevent system freeze-ups and maintain performance reliability, which are critical in extreme climates.

Suitability

  • Air Cooling: Best suited for ESS that experience moderate heat generation or are employed in cooler climates where overheating isn’t a major risk. It’s also often favored when budget constraints are tight.
  • Liquid Cooling: Ideal for ESS applications that require rapid and substantial heat removal, such as high-capacity charging stations or data centers. Its precision also makes it a fit for tightly controlled environments.

Environmental Impact

  • Air Cooling: Can be less efficient in hot climates, potentially leading to higher energy consumption as fans work harder to cool the system.
  • Liquid Cooling: Though generally more resource-intensive to manufacture and maintain, liquid cooling can lead to energy savings over time due to better performance and efficiency.

The decision between air and liquid cooling hinges on specific needs and circumstances. Considerations include the amount of heat generated by the ESS, the system’s size and scalability requirements, initial and long-term costs, the application’s demands for cooling precision, and the overarching environmental context.

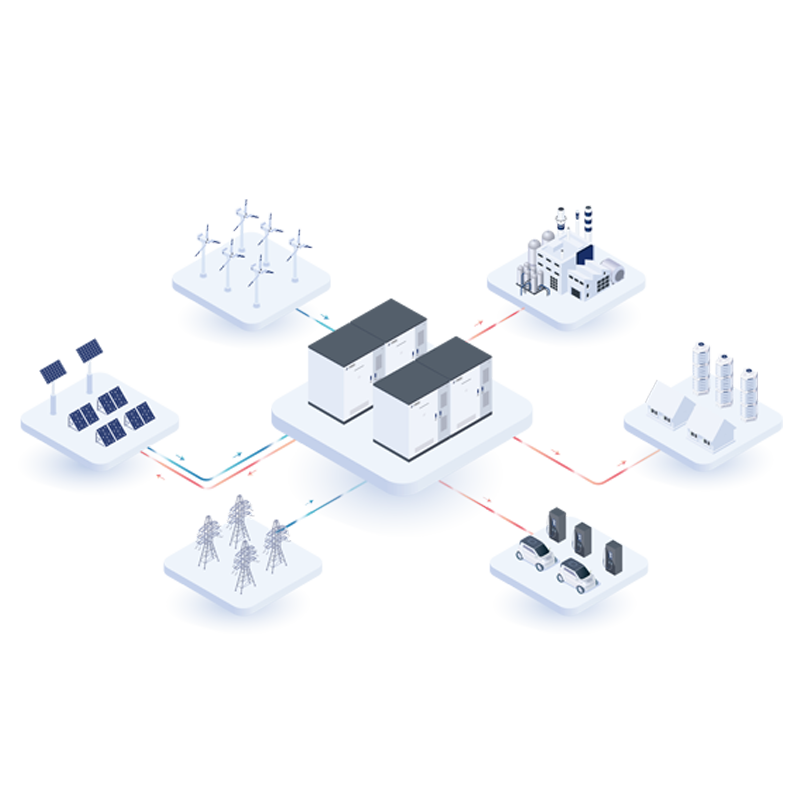

ESS application

Case Studies and Real-world Applications

Exploring real-world examples helps to illustrate the practical applications and benefits of both air cooling and liquid cooling systems in Energy Storage Systems (ESS).

Air Cooling Success

Consider a medium-scale ESS installed in a region with a temperate climate, used to balance the energy grid during peak hours. This system employs air cooling due to its lower heat generation and the ambient conditions that do not strain the cooling system. The setup includes strategically placed fans and heat exchangers that maintain optimal operating temperatures. Over time, this ESS demonstrates consistent performance with minimal maintenance requirements, showcasing the viability of air cooling in scenarios where the environmental and operational conditions are favorable.

Liquid Cooling Success

In contrast, high-density ESS powering fast-charging stations for electric vehicles operate under a much higher thermal load. This system opts for liquid cooling to manage the significant heat produced during rapid charging cycles. With a network of pumps, coolants, and radiators working efficiently to transfer heat away from sensitive components, the system maintains performance without overheating, despite the demanding usage patterns. The success of this cooling approach highlights the strengths of liquid cooling in applications that involve intense and constant heat dissipation.

Lessons Learned

These case studies provide valuable insights into selecting a cooling system:

  • Understand the Environment: The air-cooled ESS thrives in a moderate climate, whereas the liquid-cooled system handles the high-heat, high-demand environment well.
  • Evaluate System Demands: Air cooling can be effective for systems with lower thermal management needs, but for those with heavier loads, liquid cooling comes out ahead.
  • Consider Cost vs. Benefit: While air cooling is more economical upfront, the long-term benefits of liquid cooling could justify its higher initial investment in certain contexts.

Through these real-life applications, we learn that the choice of cooling often hinges on the specific requirements of the use-case scenario, including environmental factors and the ESS’s operational demands. These examples serve as a guide and reaffirm that there’s no one-size-fits-all answer; each system has its place where it can perform at its best.

As the demand for Energy Storage Systems (ESS) grows, cooling technology is not standing still. Innovations aim to increase efficiency, reduce costs, and enhance performance. Here’s a glance at what’s on the horizon:

Technological Advances

Advancements in materials science are leading to the development of new coolants with higher thermal conductivities and lower environmental impact. Similarly, innovations in fan and pump design promise greater energy efficiency and quieter operation. The integration of smart sensors and controls is also gaining traction, enabling more precise temperature regulation based on real-time data.

Predicted Trends

Looking ahead, we expect to see a greater emphasis on sustainability. This trend could manifest in the increased use of eco-friendly refrigerants and a push towards designs that facilitate easy recycling or disposal. As renewable energy sources become more prevalent, the synergy between ESS cooling systems and green energy will likely strengthen.

Another predicted trend is the customization of cooling systems for specific ESS applications. For example, a battery storage system for a residential area might use an advanced air cooling setup that minimizes noise, while a liquid cooling system for an industrial ESS might prioritize rapid heat transfer and durability.

We foresee that future ESS cooling solutions will be judged not only by their thermal management performance but also by how well they integrate with the overall energy ecosystem. The goal will be to achieve a balance between optimal cooling and total system efficiency, keeping pace with the evolving landscape of energy storage needs.

Making the Right Choice for Your Energy Storage Needs

Selecting the appropriate cooling method for your Energy Storage System (ESS) is more than a technical decision; it’s about finding the right fit for your specific circumstances. Here are some guidelines to help you assess which cooling method suits your needs:

Assessment Guidelines

  • Analyze Thermal Requirements: Begin by understanding the thermal output of your ESS. High-output systems will likely need the robust cooling that liquid systems provide.
  • Evaluate Environmental Conditions: Consider the climate and location where the ESS will be installed. Hotter environments might necessitate the superior cooling power of liquids, whereas cooler areas may be served well by air cooling.
  • Anticipate Scalability Needs: Determine whether your ESS will need to scale up. Air cooling can become cumbersome at larger scales, while liquid cooling generally scales more efficiently.
  • Consider System Accessibility: Assess how easy it is to access the system for maintenance purposes. Liquid cooling systems require more routine maintenance and are thus best suited for areas where this is feasible.

Considerations

  • Budget Constraints: Air cooling typically has lower upfront costs compared to liquid cooling. However, consider long-term operational savings that may offset the initial investment in a liquid cooling system.
  • System Capacity: The size and capacity of your ESS play into the selection process. Larger, high-capacity systems tend to benefit from the efficiency of liquid cooling.
  • Environmental Impact: Opt for solutions with minimal environmental impact. This could mean choosing cooling methods that use less energy or environmentally friendly coolants.
  • Regulatory Compliance: Be aware of any industry or government regulations that may affect your choice of cooling system due to environmental or safety standards.

By taking these factors into account and carefully weighing the pros and cons of each cooling method, you can make an informed decision that aligns with your energy storage objectives, operational requirements, and financial parameters. Remember, the ideal solution is one that not only provides efficient cooling but also supports the overall sustainability and effectiveness of your ESS.

PVB’s Comprehensive Energy Storage Solutions: A Dual Approach to Efficiency and Reliability

PVB stands at the forefront of energy storage innovation, offering two flagship systems that exemplify their mastery in the field-each designed to meet the rigorous demands of modern energy needs with finesse and robust performance.

The Air-Cooled Achiever: PVB’s Air-Cooled Energy Storage System

Commanding respect with its 100kW/230kWh capacity, PVB’s air-cooled energy storage system is a powerhouse of efficiency. By achieving an exceptional energy efficiency rate of over 90% and operating seamlessly across both grid-tied and off-grid scenarios, this system offers unparalleled reliability. Advanced communication protocols such as CAN, 485, and TCP/IP ensure effortless integration into existing power infrastructures. Rated IP55 for protection against dust and water ingress, and with a C3 anti-corrosion level, it is more than capable of operating under challenging environmental conditions. The intelligent air cooling technology guarantees peak performance quietly and efficiently, maintaining noise levels under 65 dB. Designed for diverse climates with a vast operational humidity range, and compact in its footprint, PVB’s air-cooled ESS is the epitome of sophisticated, space-efficient design and operational competence.

The Liquid-Cooled Innovator: PVB’s Liquid-Cooling Energy Storage System

Parallel in capability and complementary in design, PVB’s liquid-cooled energy storage system brings forth a level of precision engineering with its 100kW/230 kWh configuration. This solution was conceived from the ground up, marked by a harmonious interplay between state-of-the-art LFP battery cells and an advanced, intelligent liquid cooling system. The system’s overall efficiency does not waver from excellence, boasting an impressive rate of over 92%. Ensured longevity and consistent operation are hallmarks of this system, further emphasized by comprehensive after-sales support and maintenance services provided by PVB. It stands not just as a product but as a testament to PVB’s commitment to delivering energy solutions that ensure customer satisfaction through reliability and high-performance standards.

In an era where efficiency and adaptability are vital, PVB’s energy storage systems become essential for businesses fine-tuning their energy use. They adeptly handle energy peaks, offer expansion options, and ensure emergency backup, integrating smoothly into current systems to enhance industrial performance. PVB is more than a product provider; they’re forward-thinkers in energy solutions, committed to a future where smart, sustainable energy management is the norm.

Choose Wisely: Selecting the Right Cooling Solution for Your ESS Needs

The real-world application of these cooling strategies has shown us that there isn’t a universal solution; instead, the choice hinges on a balance between various factors including efficiency, scalability, costs, suitability, and environmental considerations. As we look to the future, ongoing advancements in cooling technology promise more sophisticated, efficient, and environmentally friendly options that could broaden the applicability of both air and liquid cooling solutions.

In making the final decision for an ESS cooling system, it’s critical to conduct a thorough assessment of your specific energy storage requirements, consider the potential for scaling, account for long-term operational expenses, and align with environmental and regulatory standards. With mindful consideration of these aspects, you’ll be well-equipped to select a cooling method that not only suits your immediate needs but also positions you for success as energy storage technologies continue to evolve.
