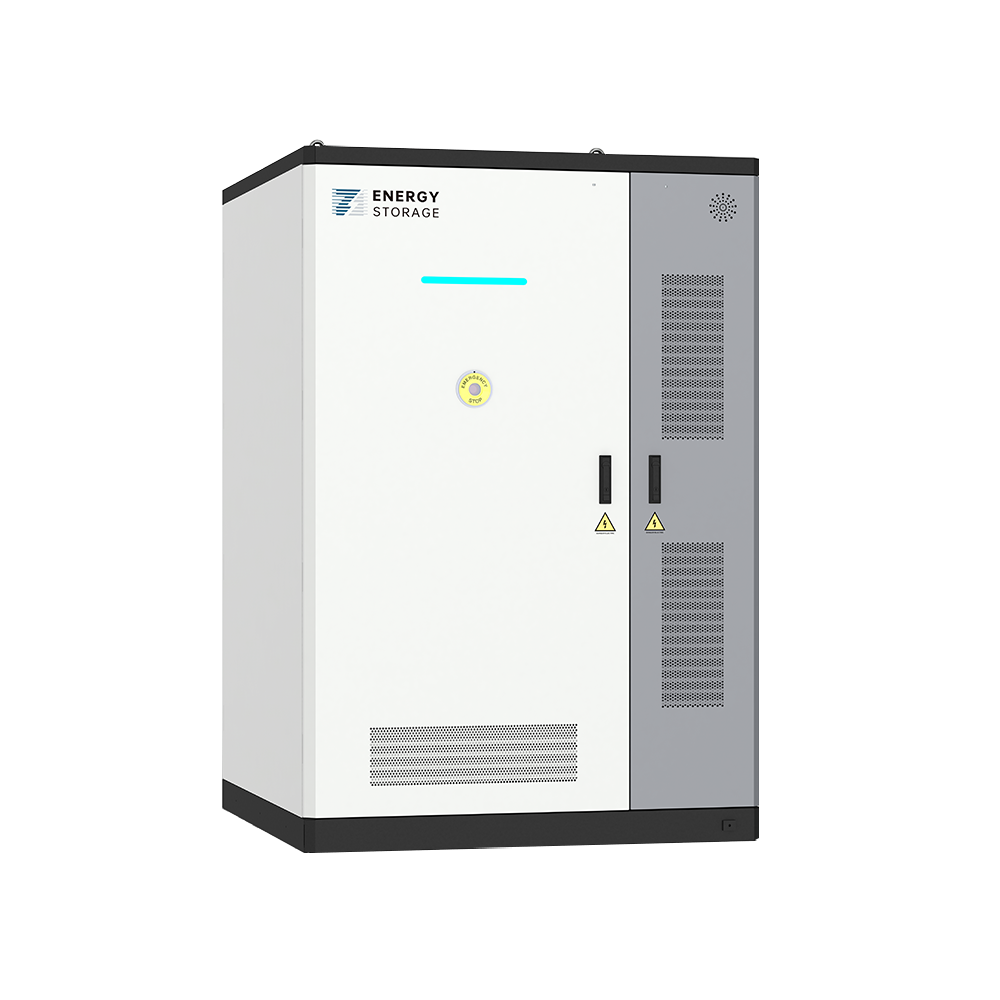

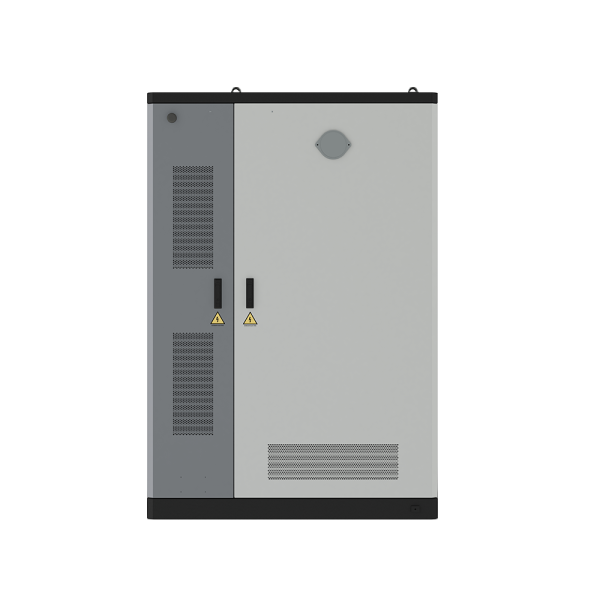

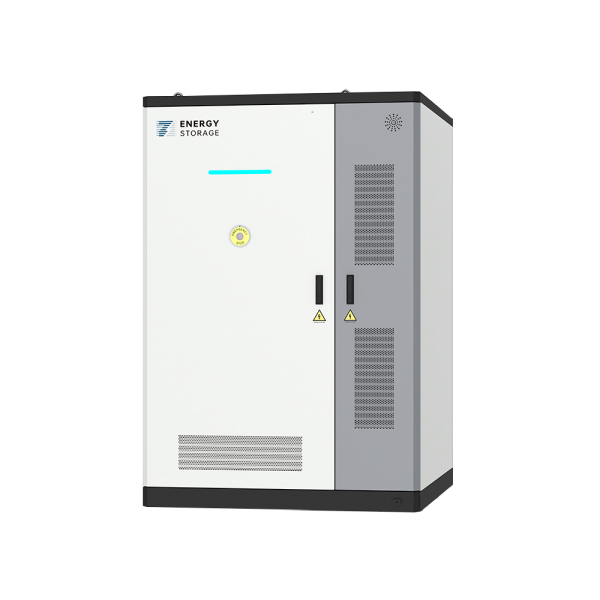

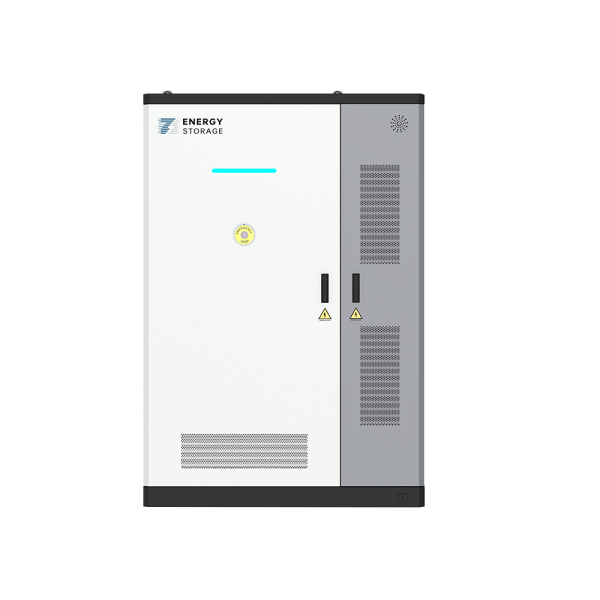

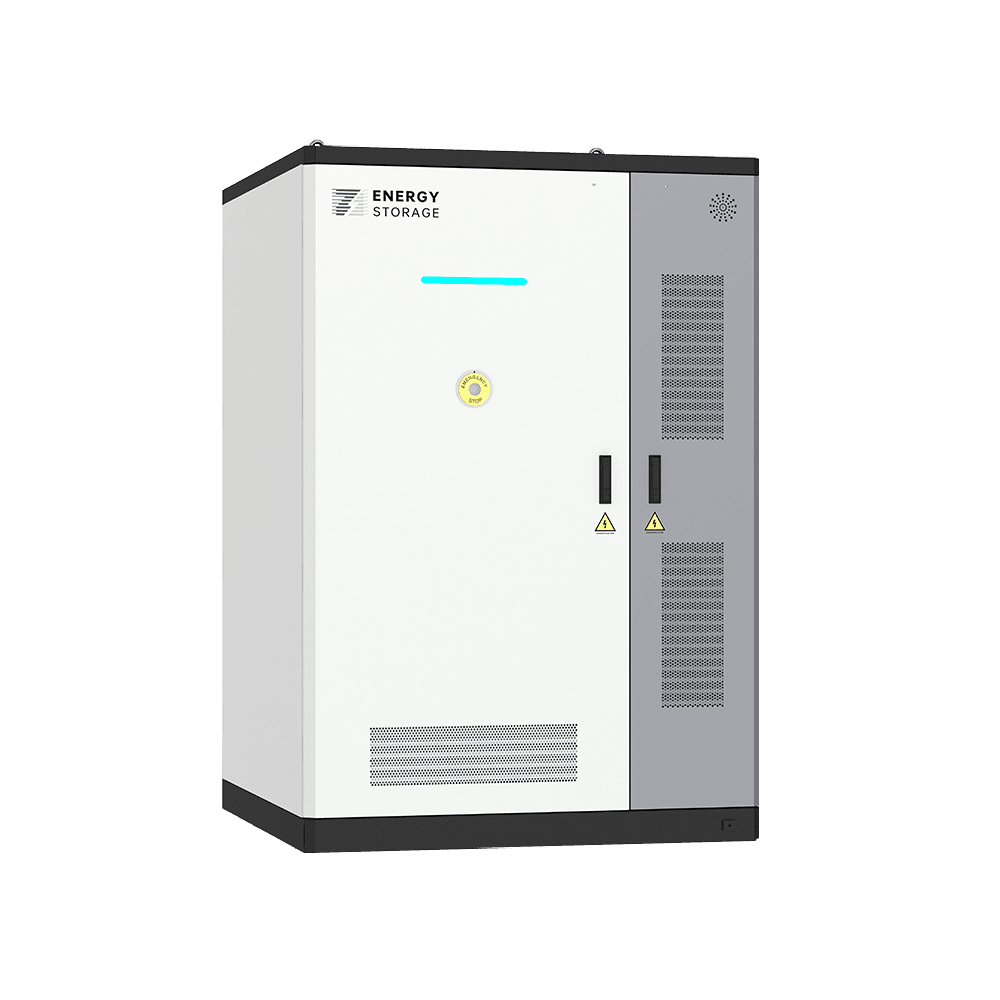

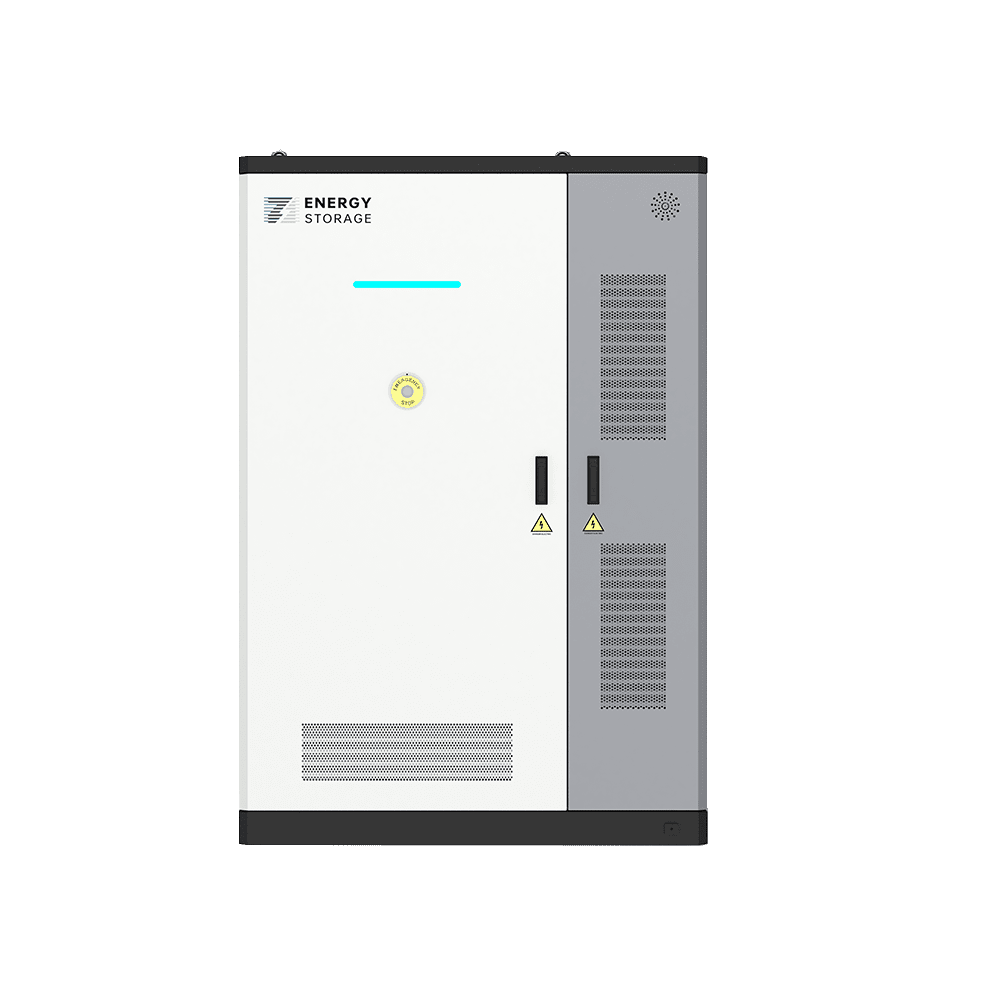

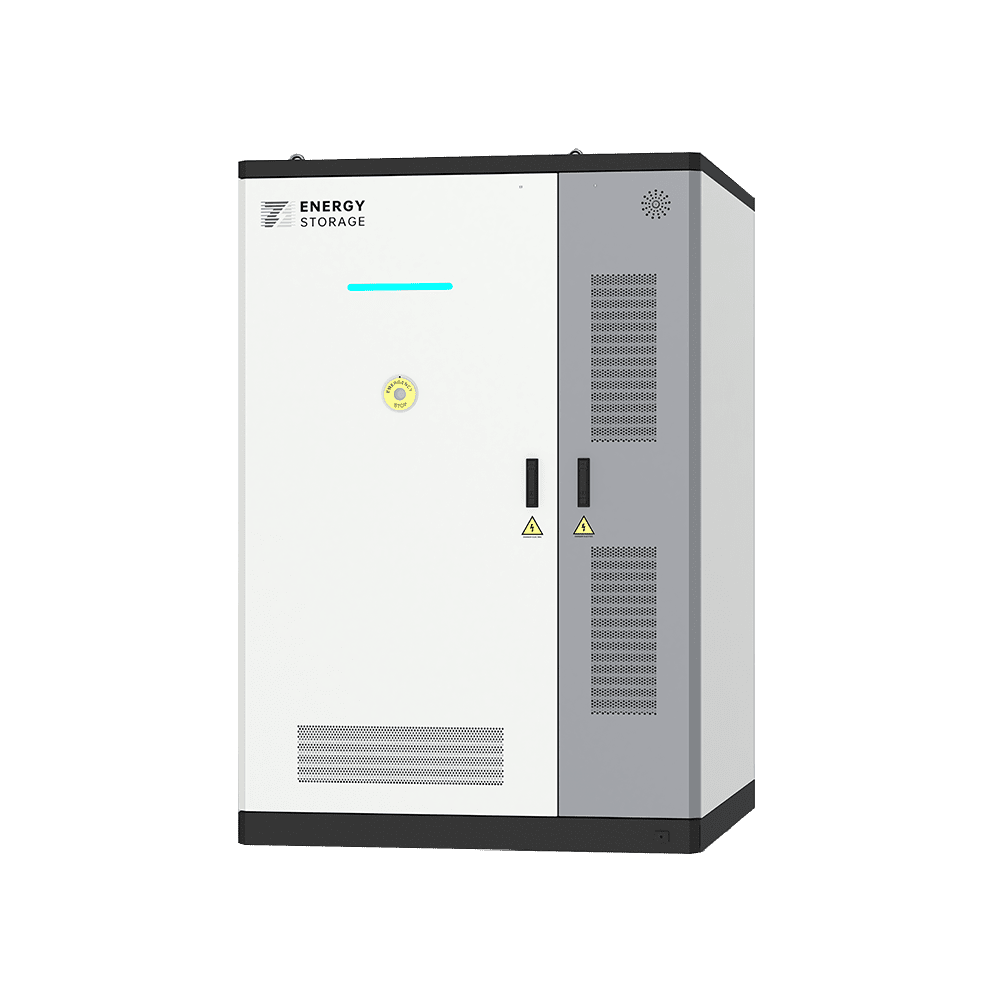

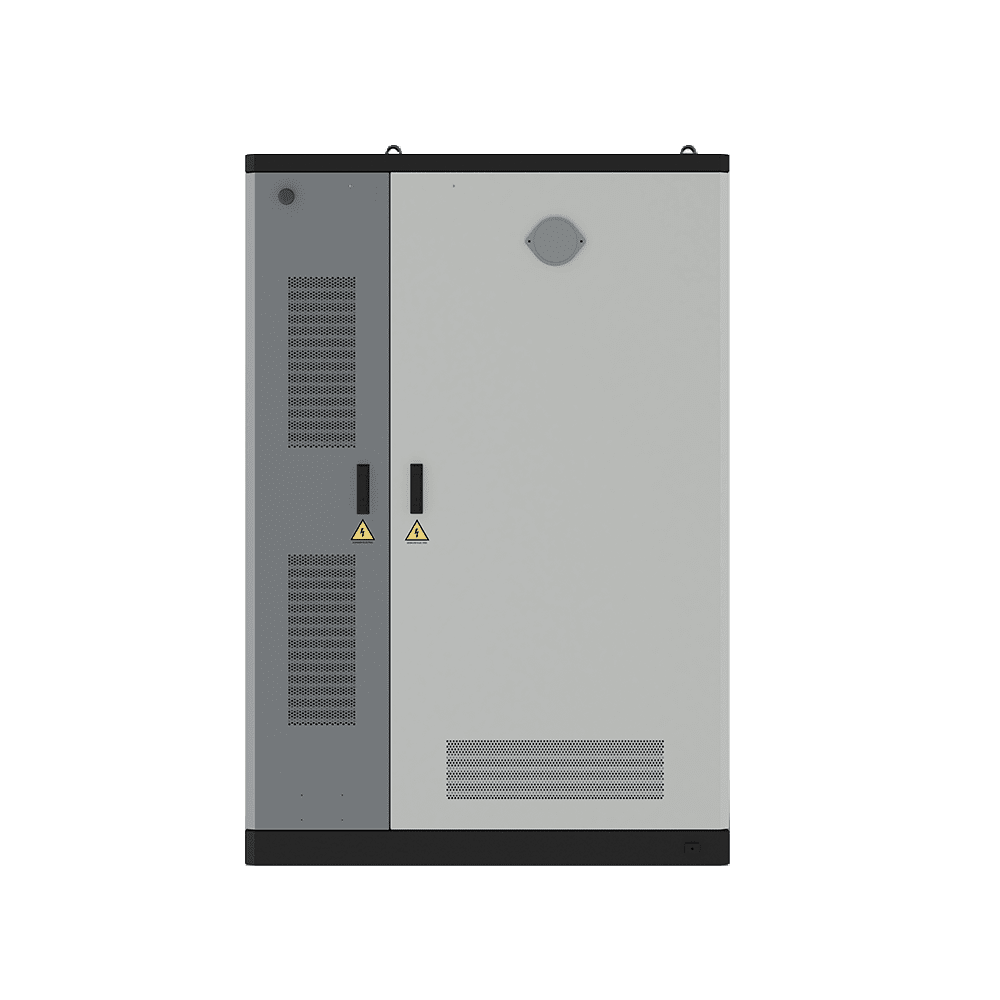

100kW/230kWh Liquid Cooling Energy Storage System

The 100kW/230 kWh liquid cooling energy storage system was independently designed and developed by PVB. Widely used in the energy storage field with grid-tied inverters, and off-grid inverters.

Highlights:
Technical certification :
pvb 230k energy storage system features

This product features a prefabricated cabin design for flexible deployment, convenient transportation, and no need for internal wiring and debugging.

It offers easy and space-saving expansion up to 1000kW/2300kWh and an IP55 rating for harsh environments. Enjoy diverse benefits like valley arbitrage, grid balancing, and multi-level parallel connection.

How to Choose Liquid Energy Storage System

Clearly outline your energy storage system requirements, including capacity, power output, operating conditions, and any specific features you may need.

Review the warranty and support services offered by the supplier. As a reliable liquid energy storage system supplier, PVB provides full after-sales services, including equipment installation, commissioning, and maintenance. A comprehensive warranty and reliable support can be crucial in ensuring the ongoing performance of the system.

pvb 230k energy storage system application

Product Specs

AC Parameters

Rated Power

100kW

Rated Voltage

AC400V

Rated Current

150A

Rated Frequency

50Hz/60Hz

Isolation Method

Non-isolated

Battery Type

300Ah, LFP Battery

Battery Rated Capacity

230.4kWh

Battery Rated Voltage

768V

Battery Voltage Range

624V ~ 876V

Rated Charge/Discharge Current

150A

Cycle Life

≥8000 cycles (at 25°C, 0.5C, 80% DOD)

System Energy Efficiency

≥92%

Operating Modes

Grid-Tied/ Off-Grid

Communication Method

CAN, 485, TCP/IP

Protection Level

IP55

Anti-Corrosion Level

C3

Fire Protection

Aerosol

Operating Temperature

-20°C to +55°C

Operating Humidity

0% to 95% (no condensation)

Altitude

≤2000m (derating above 2000m)

Cooling Method

Intelligent Liquid Cooling

Overall Dimensions (WDH)

1400mm* 1400mm* 2000mm

Weight

Approximately 2.5 tons
