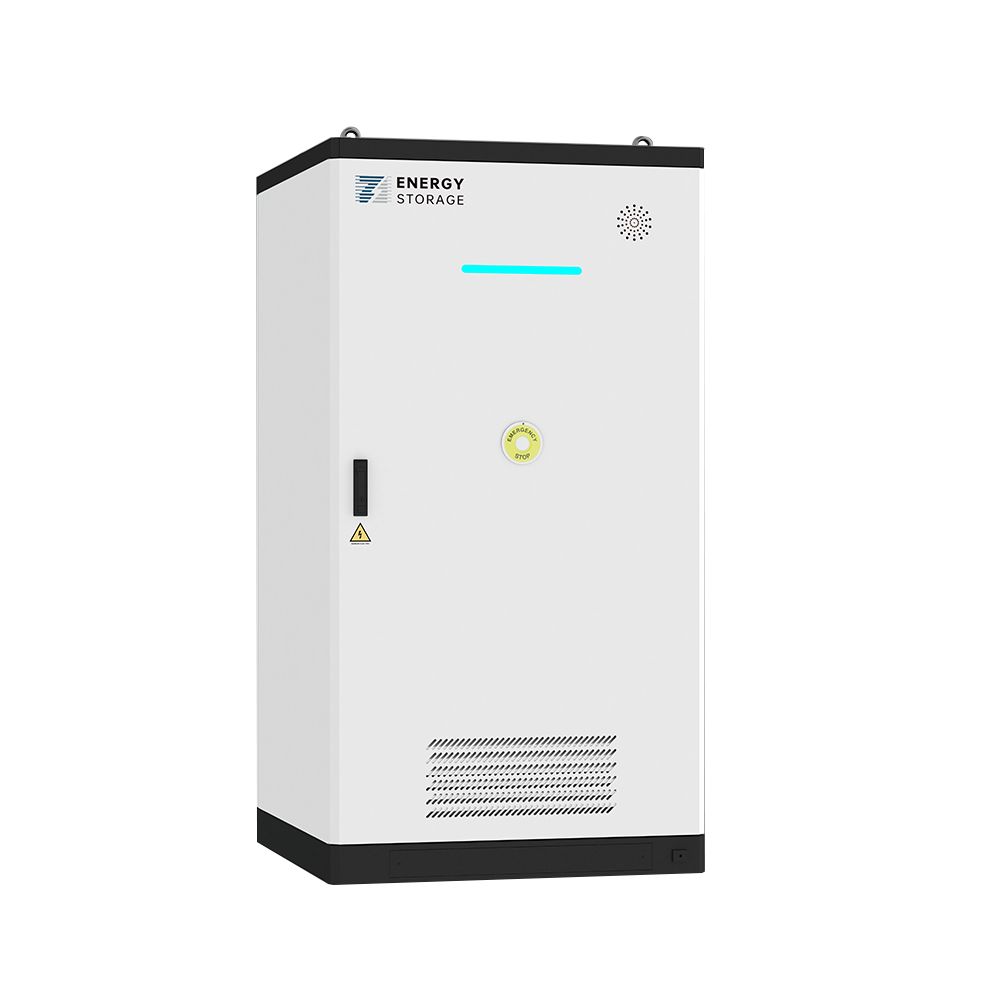

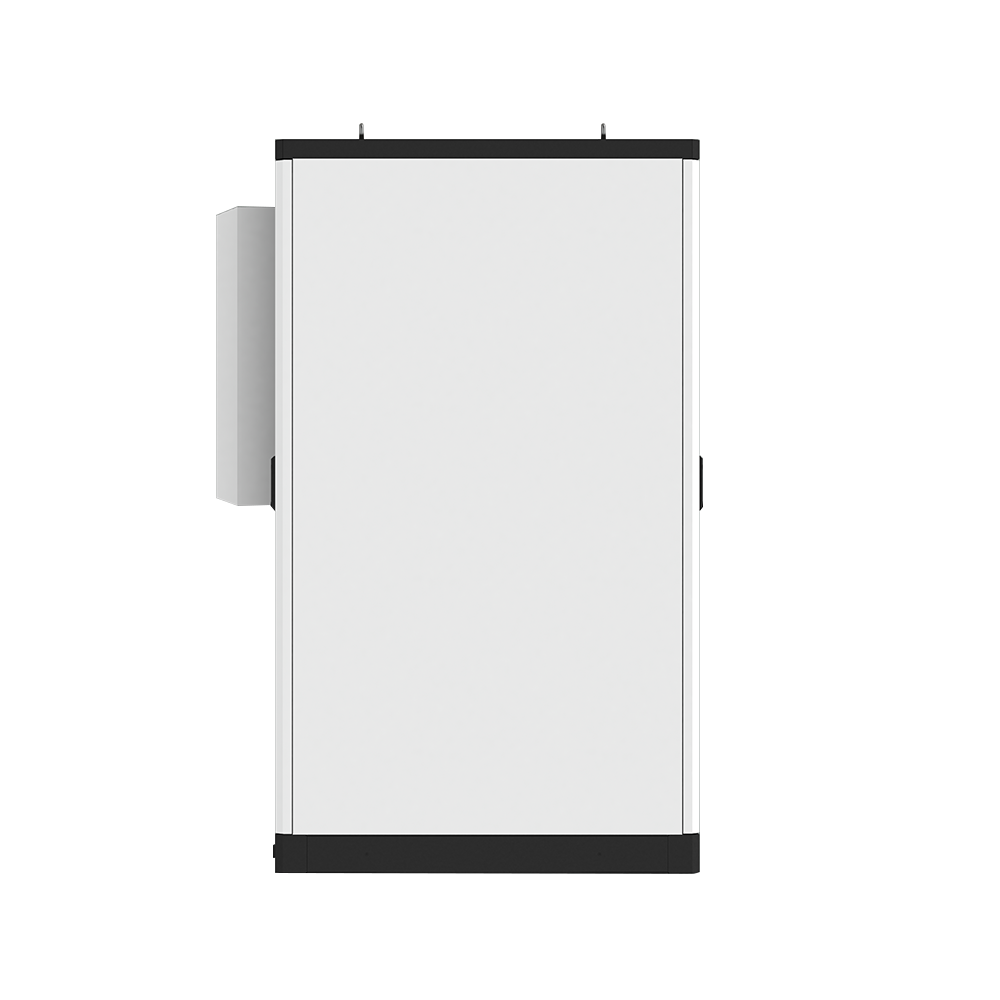

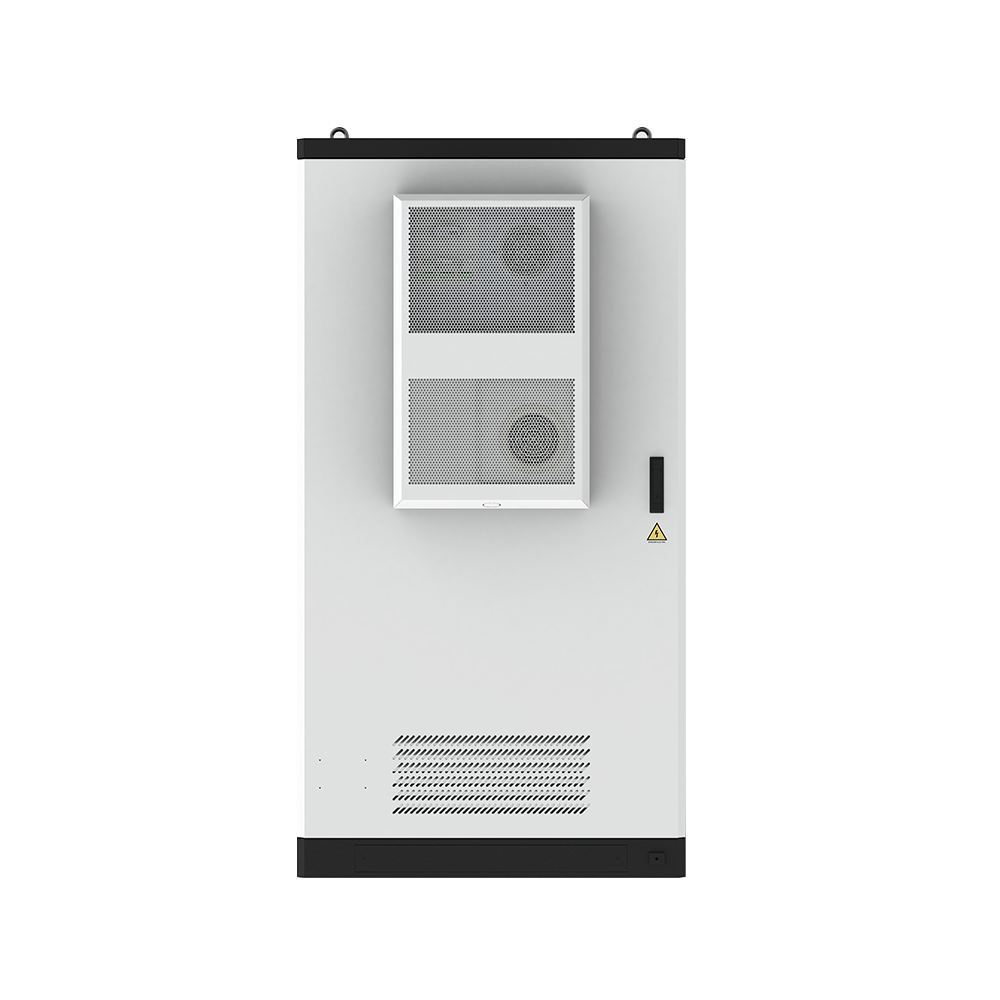

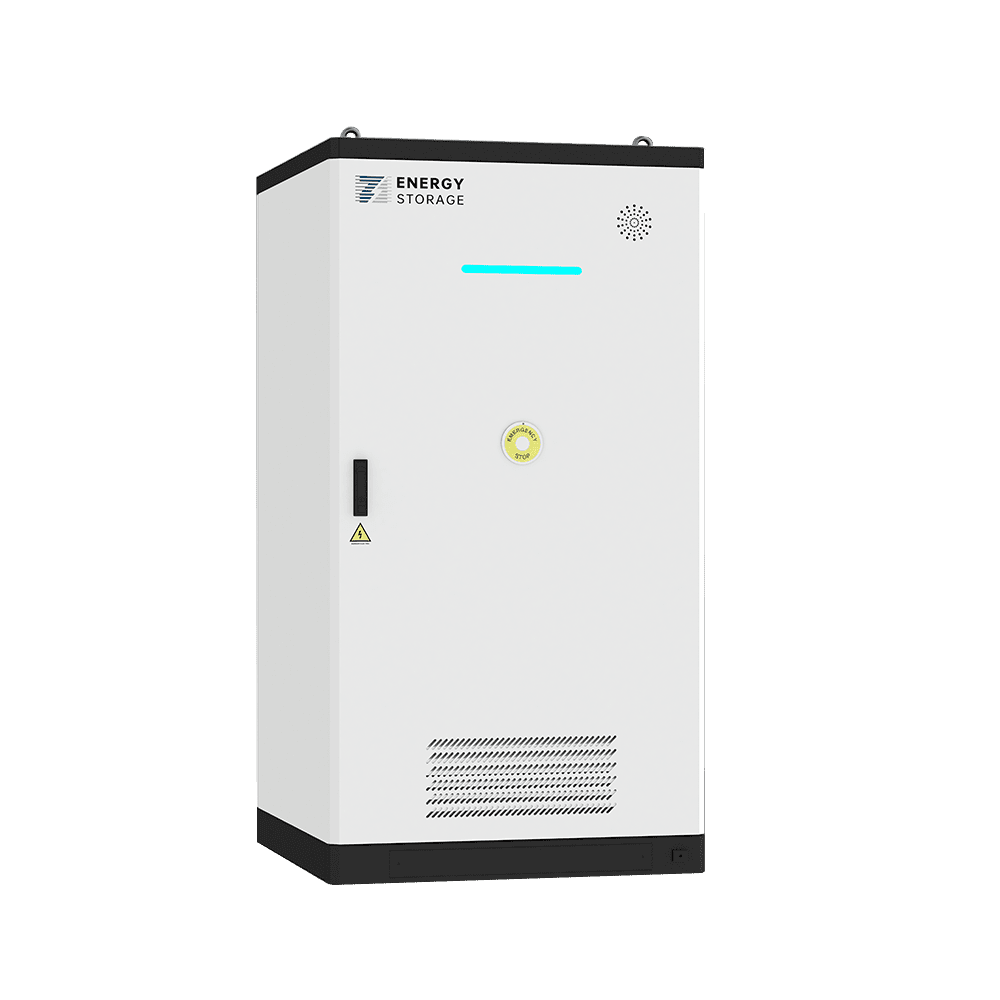

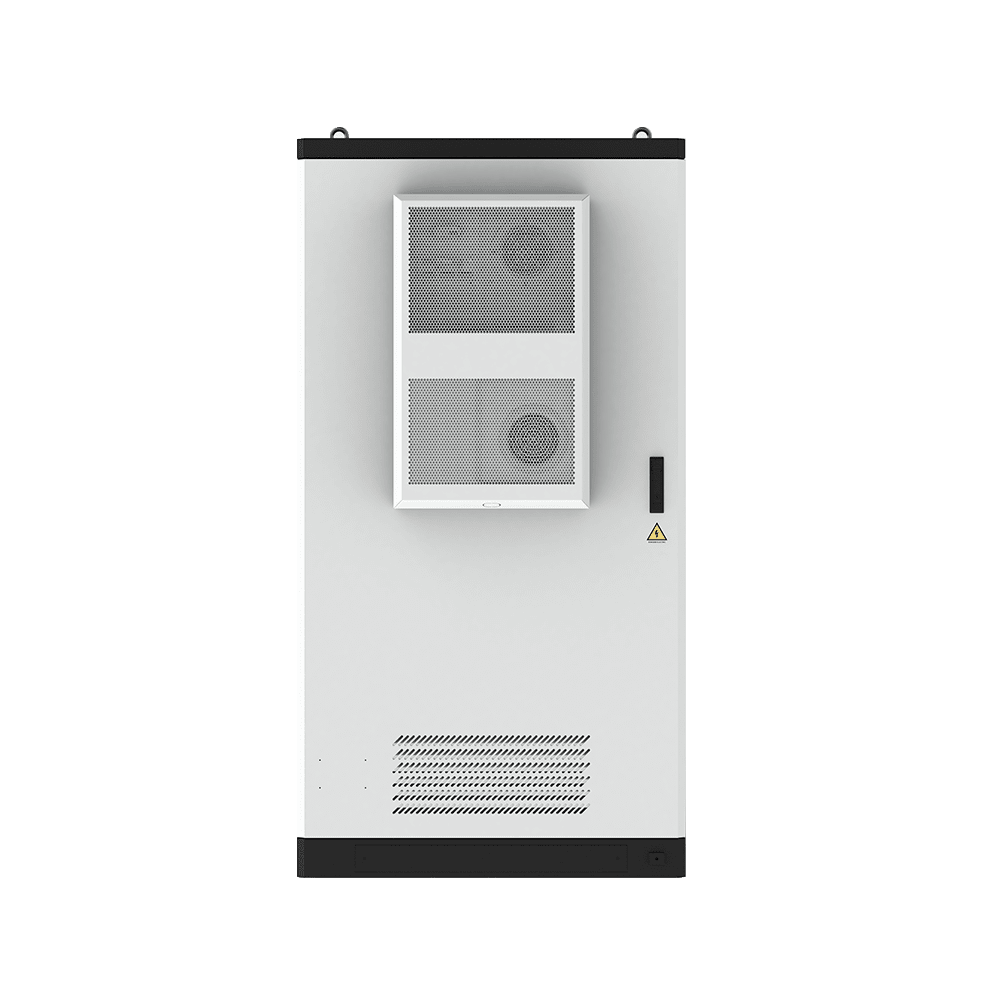

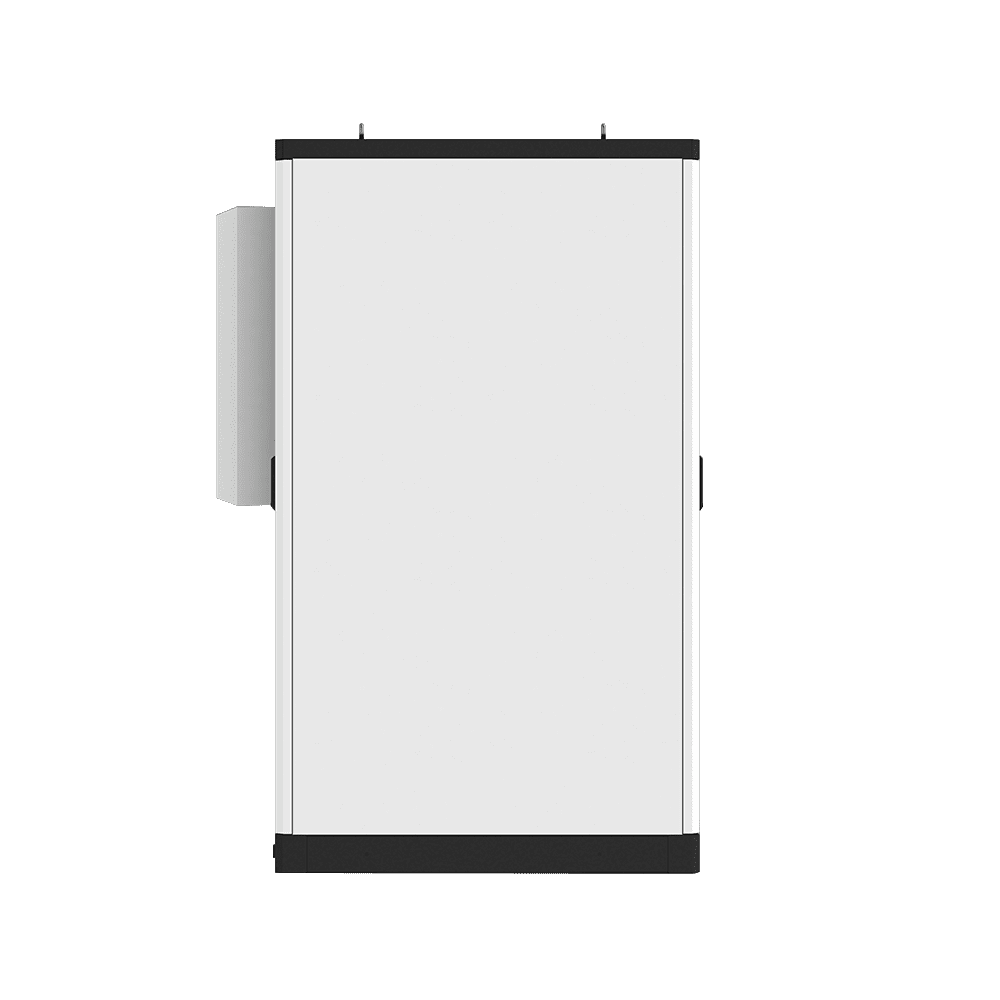

The 50kW/115kWh air cooling energy storage system features a prefabricated cabin design for flexible deployment, convenient transportation, and no need for internal wiring and debugging.
It responds quickly, boasts high reliability, and offers functions such as peak shaving, power capacity expansion, emergency backup power, grid balancing, capacity management, and multi-level parallel connection.
Multi-level fire protection system, graded isolation interlocking protection, and a circular air duct design to ensure the safe and stable operation of the product.
Modular “All-In-One” integrated single cabinet design for ease of transportation, convenient shipping, and straightforward maintenance.
| Rated Power | 50kW |
| Rated Voltage | AC 380V to 415V |
| Rated Current | 75A |
| Rated Frequency | 50Hz/60Hz |
| Power Factor | 0.99 |
| Output Harmonics | < 3% |
| Connection Method | 3P+N+PE |
| Isolation Method | Non-isolated |
| Battery Type | 150Ah, LFP Battery |
| Battery Grouping Method | 1P240S (1P40S*6) |
| Battery Rated Capacity | 115.2kWh |
| Battery Rated Voltage | 768V |
| Battery Voltage Range | 628V to 855V |
| Rated Charge/Discharge Current | 75A |
| Cycle Life | ≥6000 cycles (at 25℃, 0.5C, 80% Depth of Discharge) |
| System Energy Efficiency | ≥90% |
| Operating Modes | Grid-Tied / Off-Grid |
| Communication Method | CAN, 485, TCP/IP |
| Protection Level | IP55 |
| Anti-Corrosion Level | C3 |
| Noise | ≤65dB |
| Fire Protection | Aerosol |
| Operating Temperature | -29°C to +50°C |
| Operating Humidity | 0% to 95% (no condensation) |
| Altitude | ≤2000m (derating above 2000m) |
| Cooling Method | Intelligent Air Cooling |
| Overall Dimensions (WDH) | 1000mm*1900mm*1275mm |
| Weight | Approximately 1.4 tons |
Experience efficiency and reliability with PVB C&I energy storage system, designed to optimize your energy management seamlessly.
